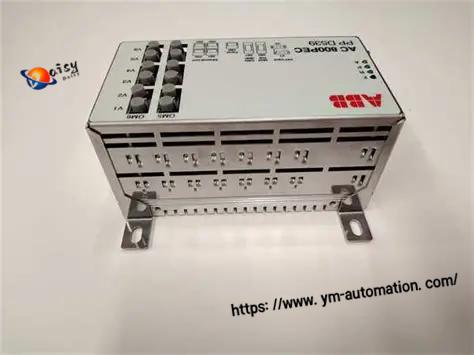

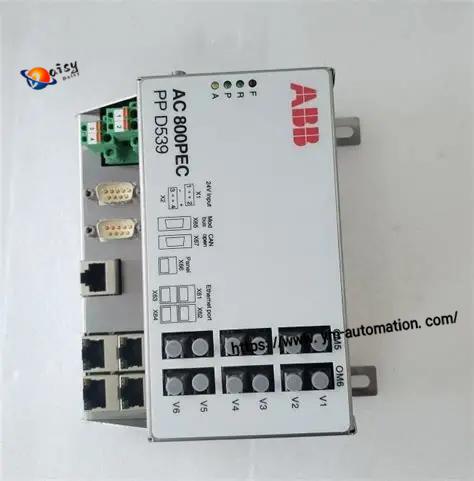

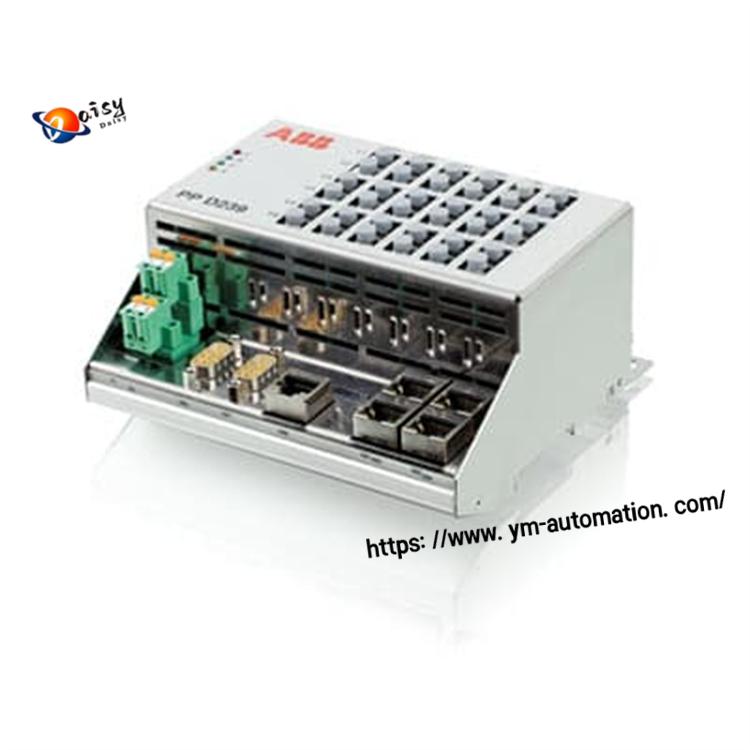

ABB PPD539A102 3BHE039770R0102 AC800PEC High Speed Power Electronic Controller

Description

Product Introduction

High-power converter, generator excitation and static var compensation systems require ultra-fast control loops with microsecond response. Standard DCS controllers cannot meet the high-speed PWM triggering, synchronous sampling and rapid protection trip demands. The ABB PPD539A102 (3BHE039770R0102) is the core control device of the AC800PEC platform, built for power electronic applications. It combines PowerPC and FPGA architecture to execute high-speed control algorithms, pulse generation and fault capture locally. It avoids long latency caused by upper-level control forwarding and prevents equipment damage during transient faults for power plants, metallurgy and renewable energy converters.

3. Key Features & Benefits

Dual-core architecture: PowerPC + FPGA hardware acceleration : FPGA handles PWM pulse triggering, synchronous sampling and high-speed fault recording; PowerPC executes IEC 61131-3 control logic -> Sub-millisecond control cycle, meets the strict timing requirements of generator excitation and medium voltage converters.

Fiber backplane communication : Optical bus for internal rack data exchange, immune to EMI interference -> Stable operation under strong electromagnetic environments such as arc furnaces and rectifier cabinets, reducing communication trips.

Support Control Builder M programming, compatible with Simulink auto code generation : Algorithm simulation verification before field download -> Shortens commissioning cycle for custom power electronic control schemes.

Integrated high-speed pulse and digital I/O interface : Onboard dedicated channels for thyristor / IGBT trigger signals and rapid protection interlock -> No extra high-speed I/O expansion boards required, simplifies cabinet layout.

Hot-swap capable in AC800PEC rack : Standard slot installation for the PEC control chassis -> Allows replacement during planned shutdown windows without reworking wiring.

4. Technical Specifications

5. Application Fields

Power Generation Plants : Unitrol series generator excitation control for synchronous generators in thermal and hydro power stations.

Metallurgical Industry : High-power rectifier control for electrolysis, arc furnace power regulation.

Renewable Energy : Wind and solar power converter high-speed control and grid ride-through protection.

Power Quality Projects : Static Var Compensator (SVC / STATCOM) pulse and protection control.

6. FAQ

Q: What system is PPD539A102 3BHE039770R0102 used for? A: It belongs to the AC800PEC high-speed power electronic control platform. It is NOT compatible with AC800M / 800xA DCS systems. Q: Can it replace PPD239 series modules? A: No. PPD239 is the compact mini version, while PPD539A102 is a larger capacity controller with more I/O and higher algorithm load capacity. They are not interchangeable. Q: What is the main difference between AC800PEC and ordinary AC800M DCS  A: AC800PEC targets microsecond-level power electronic control; AC800M is for slow process control with millisecond scan cycles. Q: Is this controller original new stock? A: The PPD539A102 is obsolete. Our available stock is refurbished and fully pre-tested spare for critical power electronic equipment maintenance.

CTA

Request a quote for ABB PPD539A102 3BHE039770R0102, or contact us to verify firmware revision and rack compatibility before placing your order.
