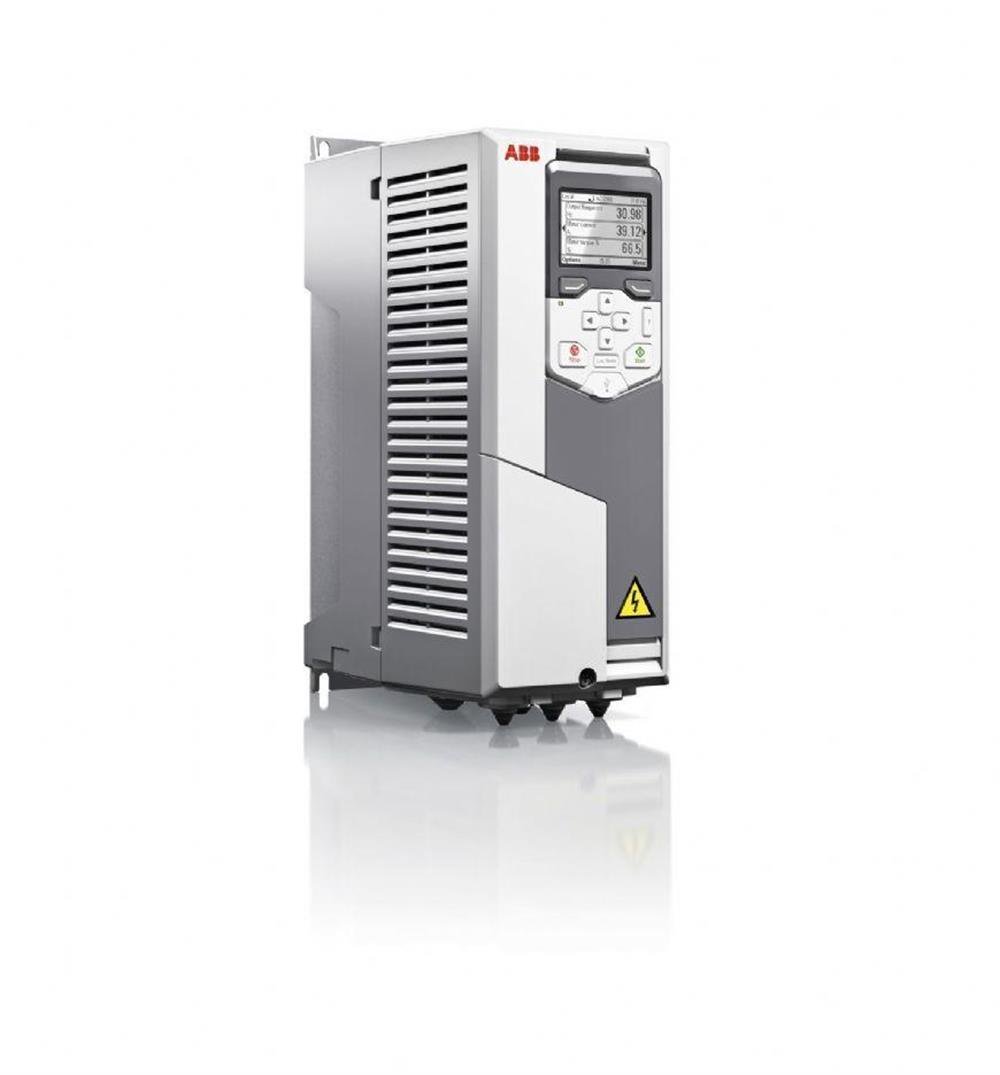

The ACS580-01-363A-4 is a general-purpose variable frequency drive (VFD) manufactured by ABB, primarily used to adjust the frequency and voltage of alternating current (AC) for precise control of electric motors. Below are its key specifications:
Electrical Specifications:
- Input Voltage: 3-phase 380-480V AC
- Motor Power Rating:
- Light-duty applications: 200 kW
- Heavy-duty applications: 160 kW
- Rated Output Current:
- At 400V: 363A (standard), 345A (light-duty), 293A (heavy-duty)
- At 480V: 361A (light-duty), 302A (heavy-duty)
Features:
- Built-in energy optimization function for enhanced efficiency
- Standard configuration includes:
- C2 EMC filter
- Dual DC reactors
- Basic control panel
- STO (Safe Torque Off) safety function
Physical Dimensions:
- Approximate size: 1145mm × 630mm × 485mm
- Weight: ~98 kg
