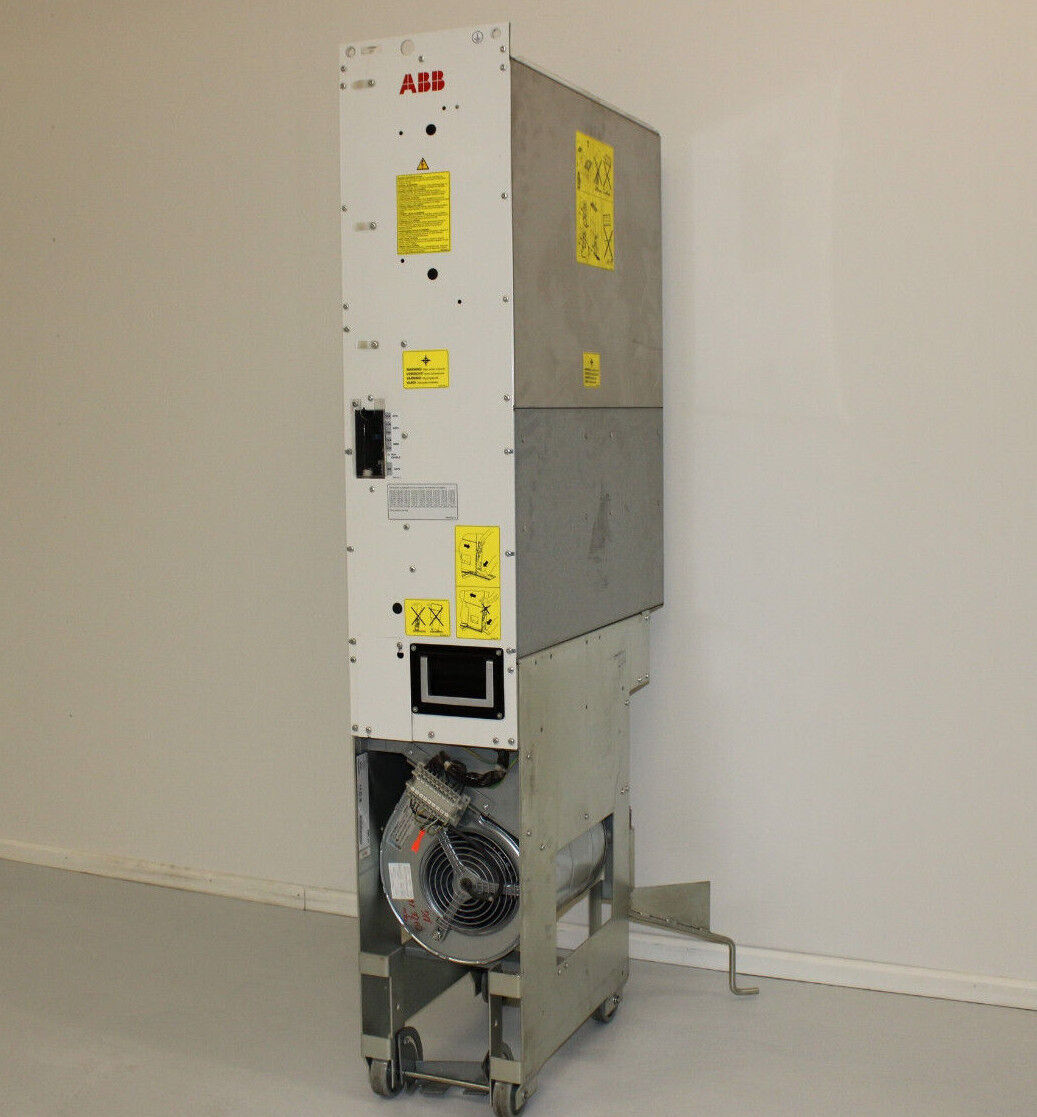

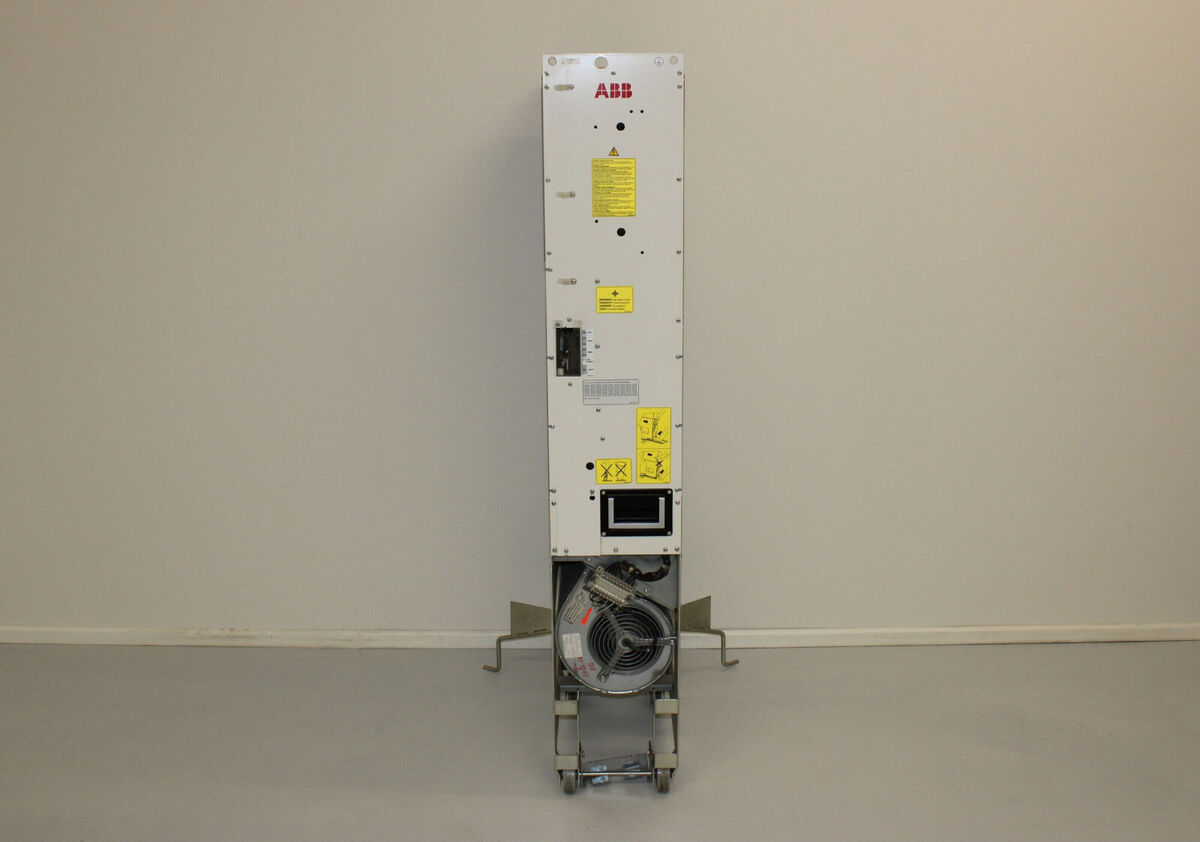

ACS800-704-0910-7+0F253+V992 is a modular combination model of ABB‘s DTC-controlled frequency converter series, with the following parameters:
Overall Module Meaning
- ACS800: Represents ABB’s general mechanical drive frequency converter series, adopting Direct Torque Control (DTC) technology.
- 704: Indicates the rectifier module type, belonging to the common DC bus scheme rectifier unit of the multi-drive system, and represents the standard industrial drive (IP21 protection level).
- 0910: Rated power of 910kW (400V voltage class).
- -7: Hardware version or design code.
- +0F253: I/O expansion module, adding digital/analog input/output interfaces, providing an additional 2 analog inputs, 2 relay outputs, etc., supporting flexible control logic.
- +V992: Control panel adapter for connecting the local operation panel, compatible with ABB‘s local control panel (such as ACS-AP-X) for parameter setting and monitoring.
Key Electrical Parameters
- Rated Power: 910kW.
- Rated Voltage: 380-480V AC (3-phase).
- Rated Current: Approximately 1320A (at 480V).
- Output Frequency Range: 0-300Hz (adjustable).
- Overload Capacity: 110% continuous, 150% for 60 seconds.
- Protection Level: IP21 (standard cabinet).
