Product Overview

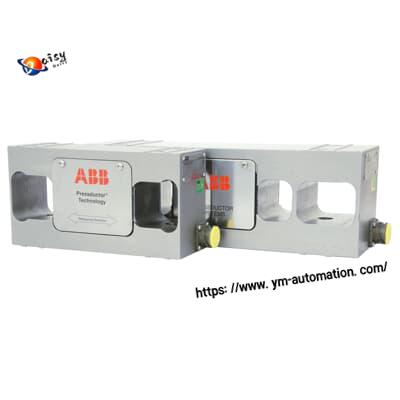

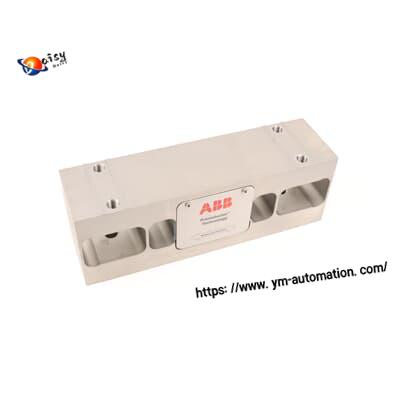

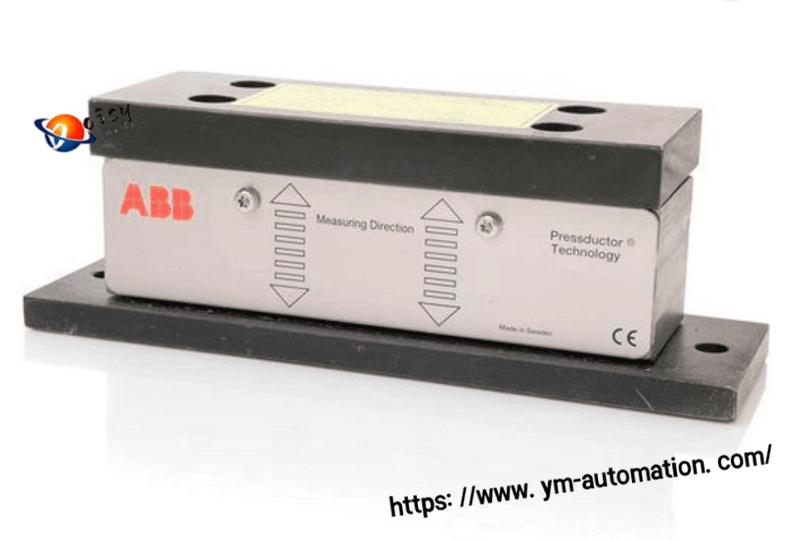

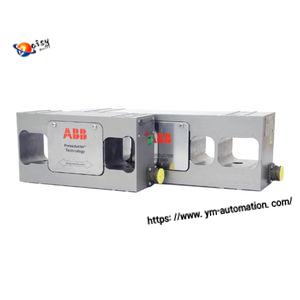

The ABB PFTL101B-20KN is a robust, high-precision Pressductor PillowBlock load cell engineered for horizontal web tension measurement in demanding industrial environmentsABB Group. Built on ABB’s proven Pressductor magnetic force transducer technology, it delivers reliable, accurate force feedback for critical web processing applicationsABB Group
Key Specifications
- Model Number: PFTL101B-20KN
- Order Code: 3BSE004203R1
- Nominal Load: 20 kN (4,500 lbf)
- Measurement Direction: HorizontalABB Group
- Accuracy Class: 0.5%ABB Group
- Repeatability Error: < ±0.05%ABB Group
- Overload Capacity: 500% of nominal loadABB Group
- Spring Constant: 500 kN/mm
- Deflection: 0.01 mm
- Protection Rating: IP66 (dust-tight, water-resistant)ABB Group
- Operating Temperature: -40°C to +85°C
- Material: Rugged, corrosion-resistant alloy steel
- Mounting: PillowBlock design for easy installation on standard shafts
Core Features & Benefits
- Unmatched Precision: Delivers high-accuracy tension measurement with minimal drift, ensuring consistent product quality.
- Extreme Durability: IP66-rated housing withstands harsh conditions (dust, moisture, vibration) for long service lifeABB Group.
500% overload protection safeguards against damage from unexpected spikesABB Group.
- Superior Stability: Advanced Pressductor technology provides excellent long-term stability (annual drift ≤ ±0.02% F.S.) and resistance to environmental interference.
- Easy Integration: Compact PillowBlock design allows for quick, hassle-free retrofitting or new installation on existing machineryABB Group.
- Wide Compatibility: Seamlessly integrates with ABB tension controls and industry-standard automation systems.
Industrial Applications
The ABB PFTL101B-20KN is the preferred choice for precise web tension control in:
- Paper & Pulp: Paper machines, calenders, coaters, windersABB Group
- Textile: Yarn and fabric processing lines
- Metal Processing: Rolling mills, strip processing lines
- Printing & Packaging: High-speed printing presses, film converters
- Cable & Wire: Cable manufacturing lines
Why Choose ABB PFTL101B-20KN?
As a global leader in industrial automation, ABB delivers proven, reliable components that minimize downtime and maximize efficiency. The PFTL101B-20KN combines high-precision measurement, industrial-grade durability, and easy installation—making it a cost-effective, long-term solution for critical web tension control applications.
In Stock & Ready to Ship
Genuine, high-quality ABB PFTL101B-20KN units available for immediate dispatch. Contact us for competitive pricing and fast worldwide delivery.
Genuine, high-quality ABB PFTL101B-20KN units available for immediate dispatch. Contact us for competitive pricing and fast worldwide delivery.
