1. Product Overview

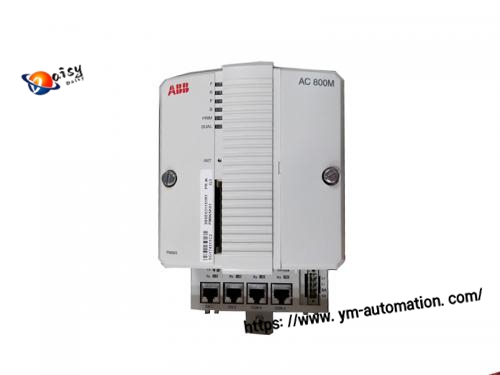

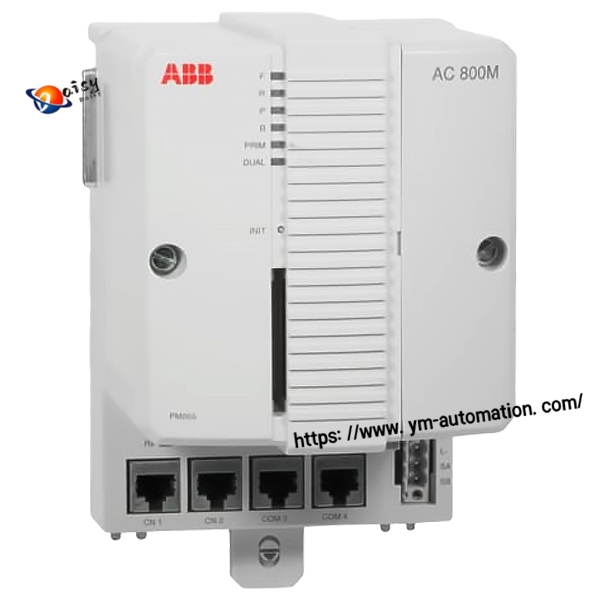

PM865K01 3BSE031151R1 is a high-performance processor module launched by ABB for industrial automation systems, belonging to ABB’s AC800M or Advant 800xA series. As a core component of the control system, it is mainly responsible for logical operations, data processing, and I/O management, and can meet the complex control requirements of industrial automation.
2. Detailed Specifications
| Parameter | Details |
|---|---|
| Model | PM865K01 |
| Part Number | 3BSE031151R1 |
| Input Voltage | 24V DC (19.2 – 30V DC) |
| Input Current | 1A |
| Maximum Power | 20W |
| Operating Temperature Range | -40℃ to 85℃ |
| Dimensions | Net depth/length: approx. 135mm; Net height: approx. 186mm; Net width: approx. 119mm |
| Weight | Approx. 1.2kg |
| Microprocessor | MPC862P |
| Clock Speed | 96MHz |
| Memory Capacity | 32MB RAM |
| Flash Memory | 4MB for firmware storage |
| Communication Interfaces | Supports Ethernet (IEEE 802.3), RS-232C, etc., and compatible with multiple protocols including EtherCAT, IP/TCP, Modbus TCP |
| Safety Certification | Complies with SIL 3 safety standards |
| Redundant System | Supports redundant configuration |
3. Product Features
High Performance: Adopts an advanced microprocessor architecture, enabling fast processing of complex control tasks and data operations. For example, it takes only 0.15 milliseconds to complete 1,000 Boolean operations.
High Reliability: Supports redundant configurations, including CPU, CEX-Bus, communication interfaces, and S800 I/O. It complies with SIL 3 safety standards, making it suitable for safety-critical applications.
Flexible Communication Interfaces: Equipped with multiple communication interfaces and compatible with various communication protocols, facilitating integration with other devices and systems.
Low-Power Design: No external fan is required, reducing maintenance costs and potential fault points.
Rich I/O Interfaces: Supports multiple input and output types to meet diverse needs in industrial automation scenarios.
4. Structure and Composition
The PM865K01 module mainly consists of the following parts:
Microprocessor: Responsible for executing logical operations and control tasks.
RAM Memory: Used for data storage and caching.
Real-Time Clock and LED Indicators: Provide time management and status display functions.
CompactFlash Interface: Supports storage and update of programs and data.
5. Application Fields
Industrial Automation: Applicable to process control, discrete manufacturing, energy management, and building automation scenarios.
Safety-Critical Applications: Such as oil and gas production, chemical processing, and power generation.
Robot Control: Supports complex robot task planning and execution.
Real-Time Monitoring and Safety Systems: Used for real-time data collection, analysis, and alarm handling.
