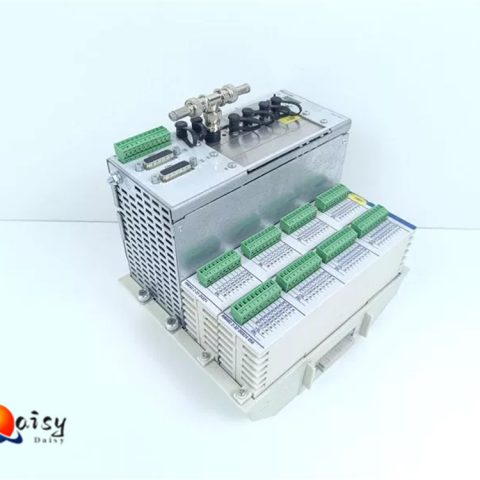

ABB PPD113B03-26-100110 | PP D113 | 3BHE023584R2634 | controller module

ABB PPD113B03-26-100110 | PP D113 | 3BHE023584R2634 | controller module.The ABB excitation control module is a device that regulates the current and voltage of a generator’s excitation system. The excitation system provides the necessary magnetic field to the generator’s rotor, which in turn generates electrical power. Here are the steps to use the ABB excitation control module:

1. 1. 1. Connect the excitation control module to the generator’s excitation system.
      2. Configure the control module to match the generator’s specifications.
      3. Turn on the control module and monitor it for any error messages or alarms.
      4. Adjust the control module’s settings as needed to maintain the desired output voltage and current.

   ABB PP D113 3BHE023584R2334 AC 800PEC Control System Technical Specifications:
   General Information
   ·ProductID:3BHE023784R2630
   ·Description:PP D113 B01-26-111000: AC 800PEC
   Dimensions
   ·Depth / Length:145 mm
   ·Height:450 mm
   ·Width:100mm
   ·Weight:2.59kg
   Electrical Parameters
   ·Voltage:110-240V
   · Current:5A
   ·Frequency:50/60Hz
   Communication
   ·Ports: Multiple ports for Ethernet, fieldbus, etc. (depending on the specific model)
   I/O Capacity
   ·Support: Supports a wide range of digital and analog I/O modules
   Applications
   ·Power Distribution
   · Motor Control
   ·Industrial Automation
