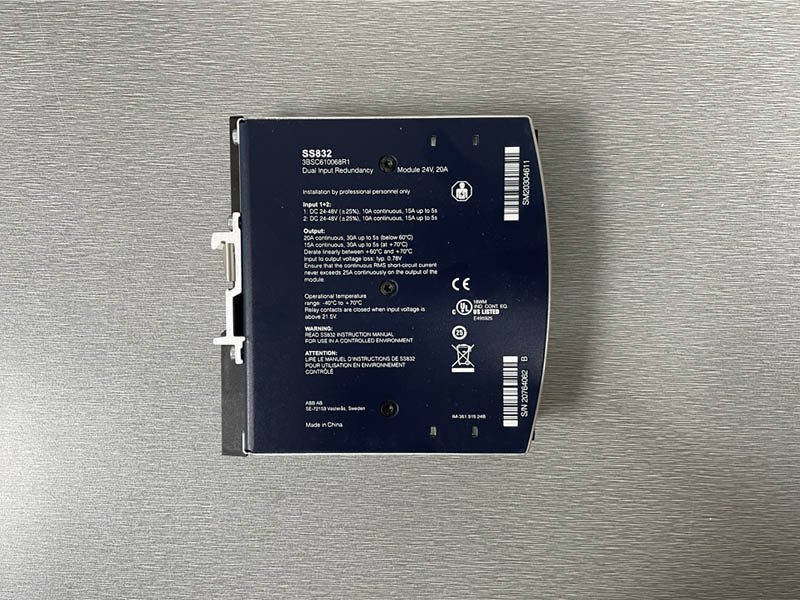

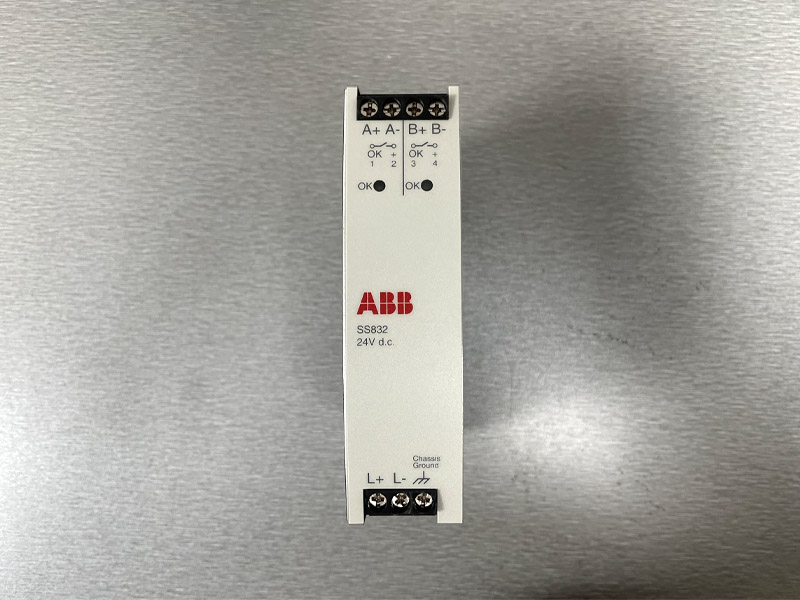

ABB SS832 | 3BSC610068R1 | Power Voting Unit

Electrical Parameters

• Input Voltage: 2×24V DC (1×24V DC in parallel operation)
• Permitted Input Voltage Variation: -60V DC
• Output Voltage: 24V DC
• Rated Output Current: 10A (20A in parallel operation)
• Maximum Output Current: 25A (overload)
• Output Voltage Regulation: 0.85V typical value at maximum current
• Power Consumption: Maximum 2W
• Power Frequency: 60Hz

Physical Parameters

• Dimensions (Length × Width × Height): 117mm×32mm×125mm
• Weight: 350g

Communication Parameters

• Communication Interfaces: PROFIBUS DP, supporting protocols such as PROFINET and Modbus TCP/IP

Operating Environment Parameters

• Operating Temperature Range: -25°C to +60°C
• Storage Temperature Range: -40°C to +70°C

Other Parameters

• Monitoring Function: Equipped with a monitoring relay and a green LED on the front panel to indicate whether the output voltage is normal.
• Protection Functions: Output with overcurrent (current limiting) and overvoltage (OVP) protection.
• Redundancy Type: Hot standby
• Pollution Degree: Level 2, compliant with IEC 60664-1 standard.
