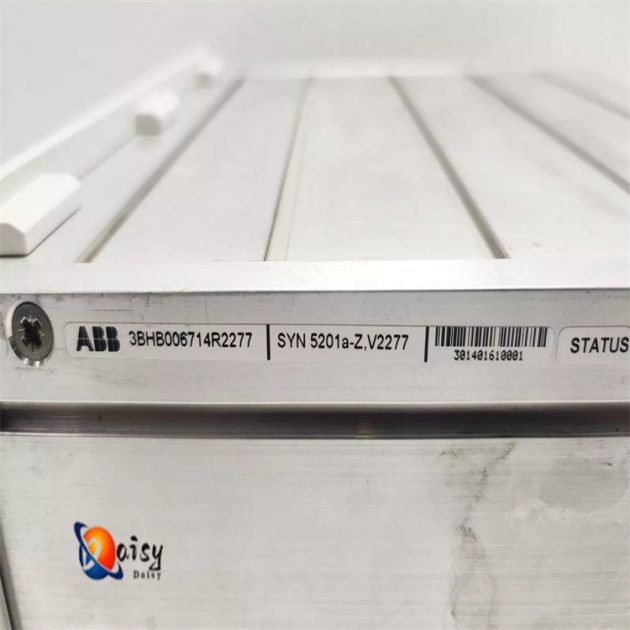

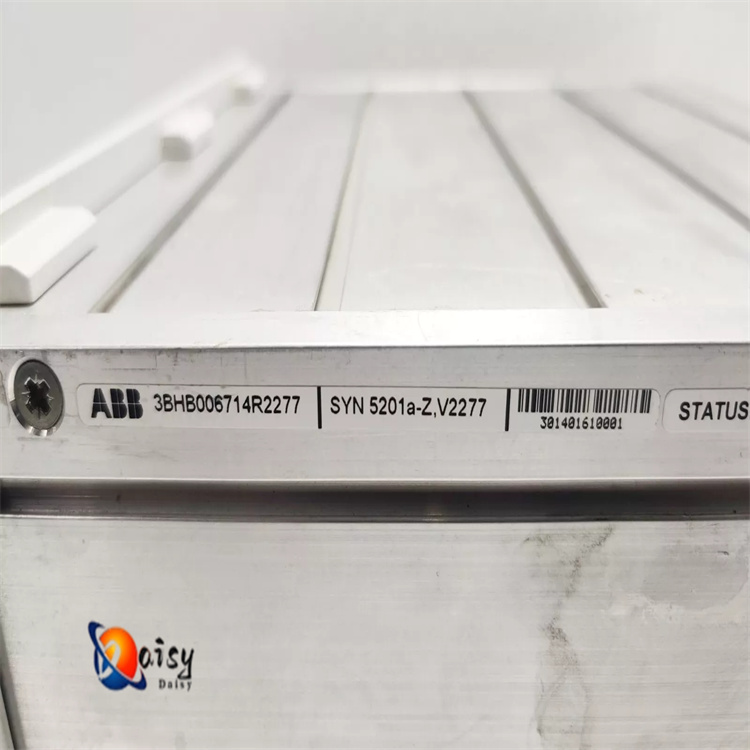

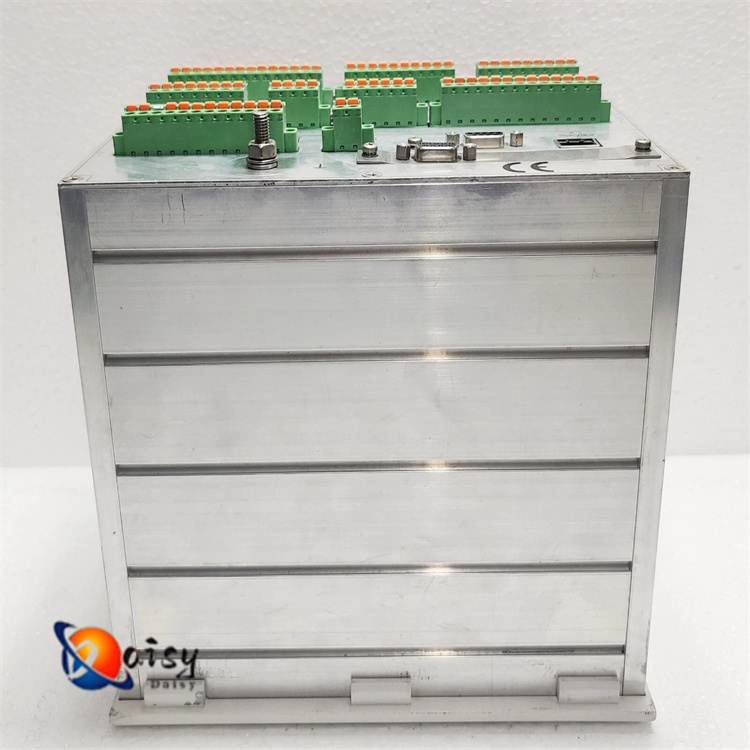

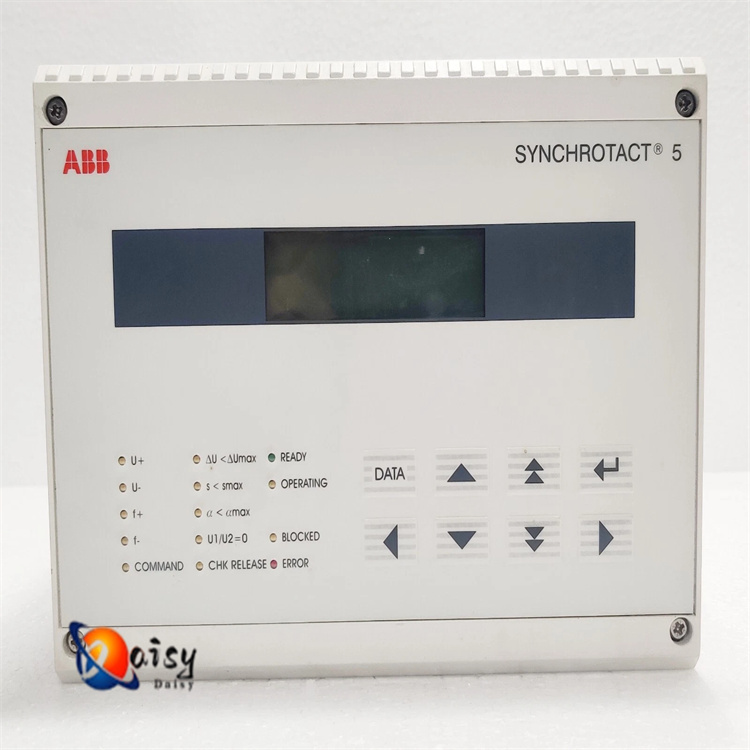

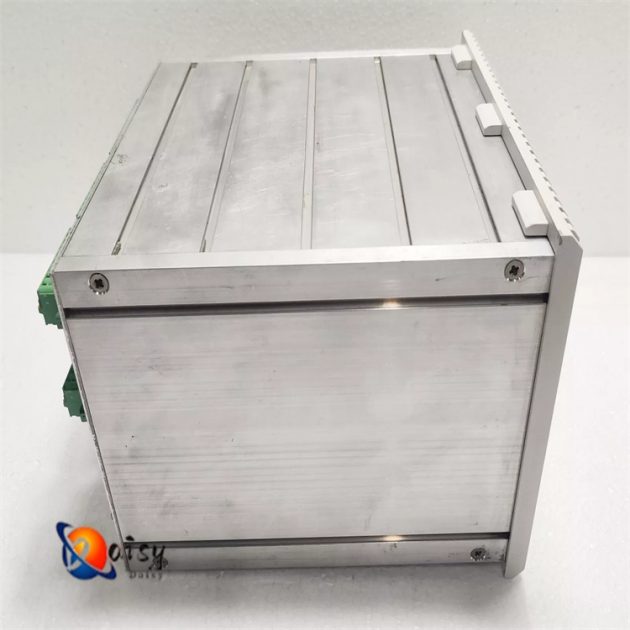

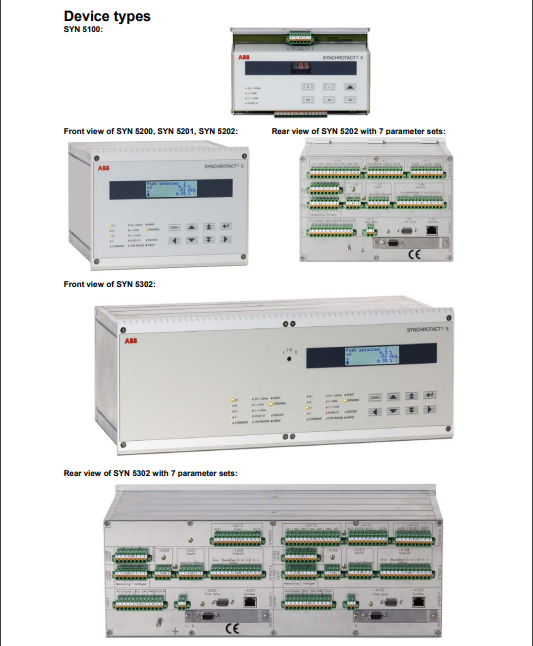

ABB SYNCHROTACT 5 SYN 5201a-Z, V2277 3BHB006714R2277 Synchronization Unit

ABB SYNCHROTACT 5 SYN 5201a-Z, V2277 3BHB006714R2277 asic Parameters

1. Model and Version
   • Model: SYN 5201a-Z
   • Version: V2277
   • Ordering Number: 3BHB006714R2277
2. Frequency Range
   • Measurement Range: 0.1 Hz ~ 100 Hz
   • Nominal Frequency: 50 Hz / 60 Hz (configurable)
   • Frequency Accuracy: ±0.01 Hz
3. Voltage Range
   • Input Voltage: 100 V / 110 V / 230 V AC (optional)
   • Measurement Accuracy: ±0.5%
4. Phase Angle Measurement
   • Measurement Range: 0° ~ 360°
   • Accuracy: ±0.5°

Synchronization Function Parameters

5. Allowable Difference for Synchronization
   • Frequency Difference: 0.01 ~ 2.0 Hz (configurable)
   • Voltage Difference: 0.1% ~ 20% (configurable)
   • Phase Angle Difference: 0.1° ~ 50° (configurable)
6. Advance Time
   • Range: 0 ~ 1000 ms (adjustable)
   • Accuracy: ±1 ms

Interfaces and Communication

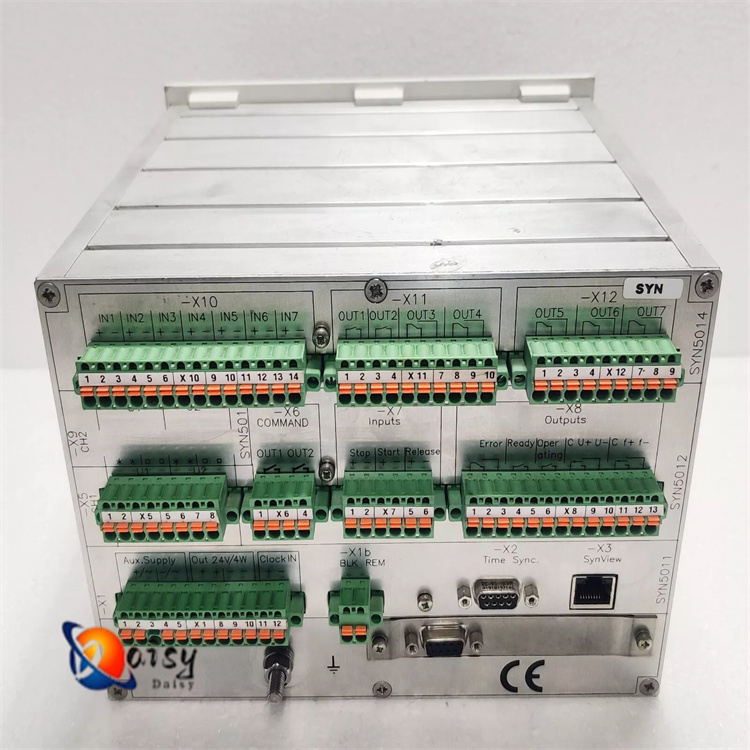

7. Digital Input/Output
   • Digital Input: 8 channels (configurable)
   • Relay Output: 6 channels (Contact Capacity: 5A/250V AC)
   • Optional: 2 pulse outputs (for speed regulation/voltage regulation)
8. Communication Interfaces
   • MODBUS RTU (RS485)
   • IEC 60870-5-103 (optional)
   • Support remote monitoring and parameter setting

Power Supply and Environment

9. Power Supply
   • Voltage: 100 ~ 240 V AC/DC (self-adaptive)
   • Power Consumption: ≤10 W
10. Operating Environment
    • Temperature Range: -25°C ~ +70°C (standard type)
    • Humidity: 5% ~ 95% RH (no condensation)
    • Protection Level: IP20 (panel-mounted)

Mechanical Parameters

11. Dimensions and Weight
    • Dimensions: 210 mm × 175 mm × 125 mm (height × width × depth)
    • Weight: Approximately 2.5 kg
12. Installation Method
    • Panel embedded installation (cutout size: 195 mm × 152 mm)

Certifications and Standards

• In compliance with standards: IEC 60255, IEEE C37.1, EN 61000-6-2
