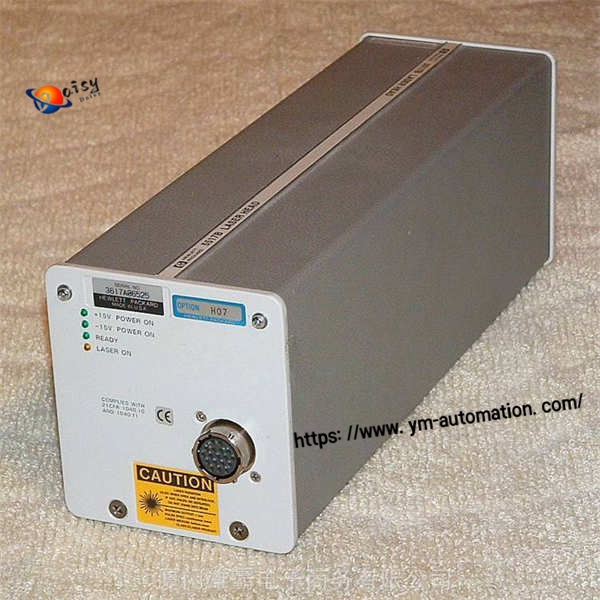

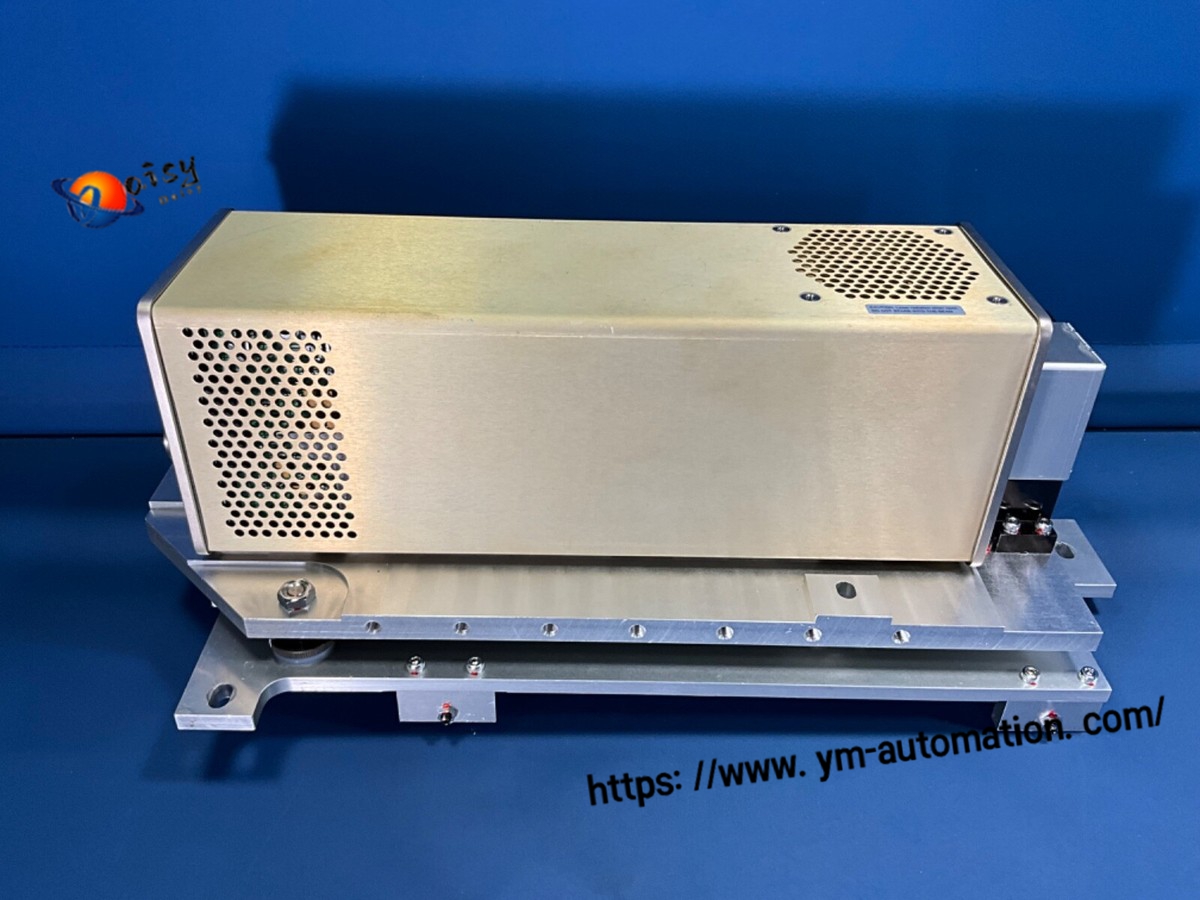

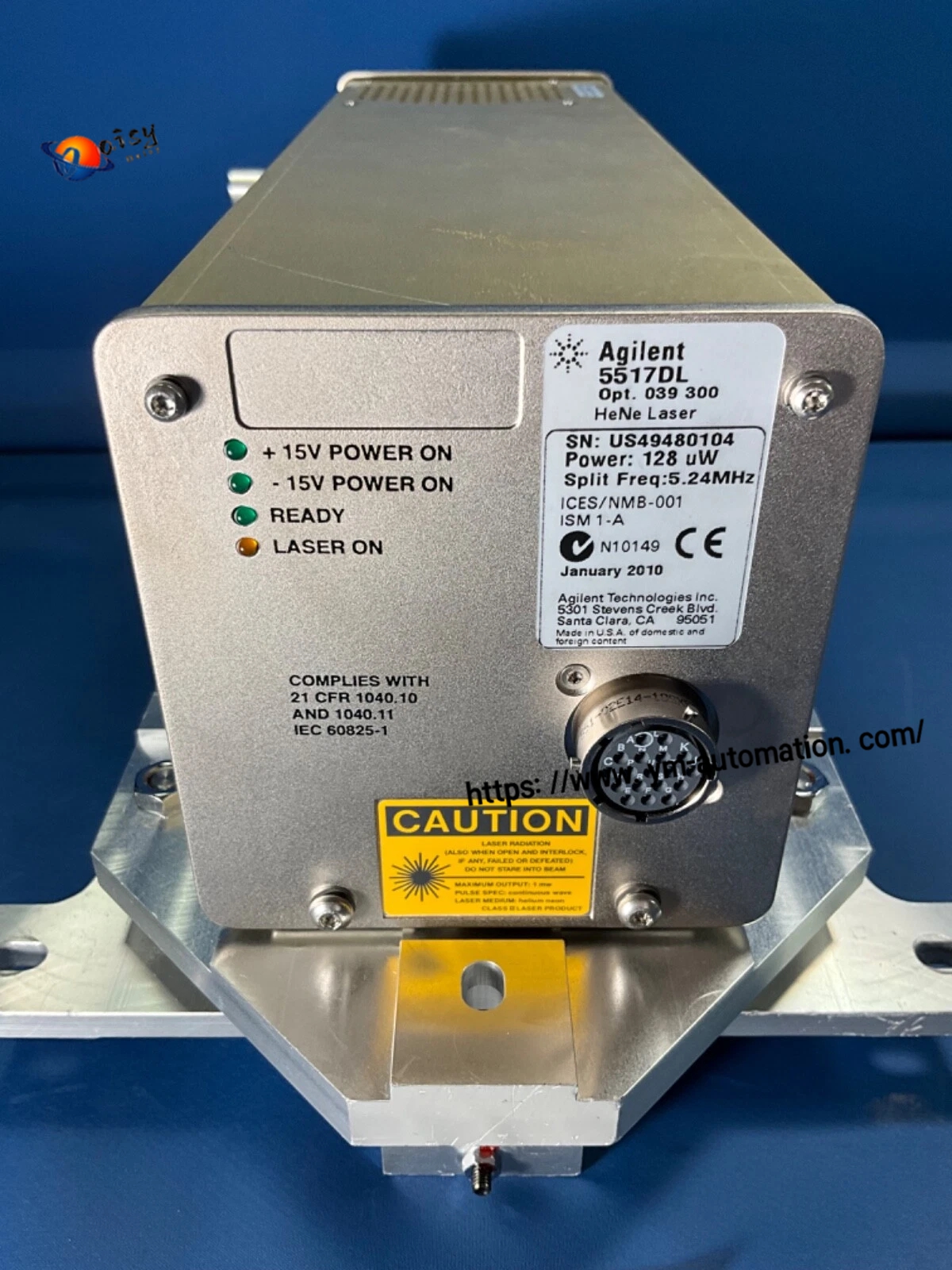

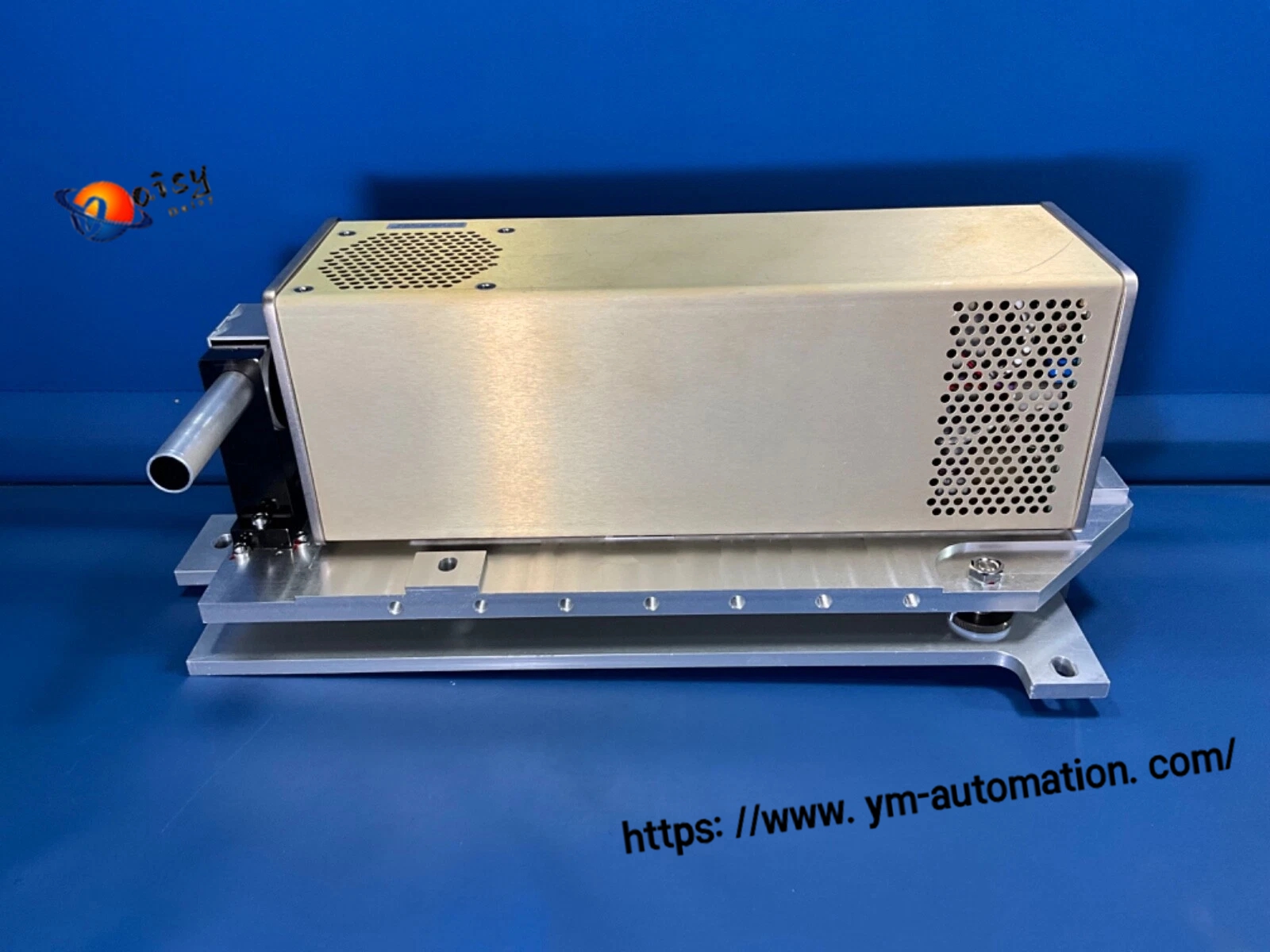

The Agilent 5517DL is a Class II helium – neon laser source produced by Keysight Technologies (formerly Agilent). It is designed to provide highly stable and accurate 633 nm wavelength light, which is crucial for precision dual – frequency interferometry. This laser head is widely used in industrial control and precision measurement fields due to its excellent performance and reliability.
2. Key Parameters
| Parameter | Value |
|---|---|
| Maximum linear velocity | 1329 mm/s (requires use of E1709A receiver to obtain this velocity) |
| Reference frequency | 1234 MHz |
| Minimum output power | ≥ 4.4 μW |
| Warm – up time | > 180 minutes |
| Available laser beam diameter | 6 mm, 9 mm |
| Mean time between failures (MTBF) | > 50,000 hours |
3. Product Features
High Wavelength Stability: The 5517DL has a vacuum wavelength stability of 2 ppb within 1 hour and 20 ppb over its lifetime, ensuring highly accurate measurement results.
High Wavelength Accuracy: The standard wavelength accuracy is ± 0.1 ppm, and with the optional calibration, it can reach ± 0.02 ppm, which meets the high – precision requirements of various industrial applications.
Reliability: With an MTBF of more than 50,000 hours, the 5517DL can operate stably for a long time, reducing the maintenance cost and downtime of the equipment.
4. Application Scenarios
Machine Tool Inspection: It can be used to measure the position accuracy, straightness, and flatness of machine tools, helping to improve the machining accuracy of workpieces.
Semiconductor Manufacturing: In semiconductor manufacturing processes, the 5517DL is used for precise positioning and measurement of wafers and other semiconductor materials.
Metrology and Calibration Laboratories: As a high – precision measurement tool, it is widely used in metrology and calibration laboratories to calibrate other measurement instruments.
