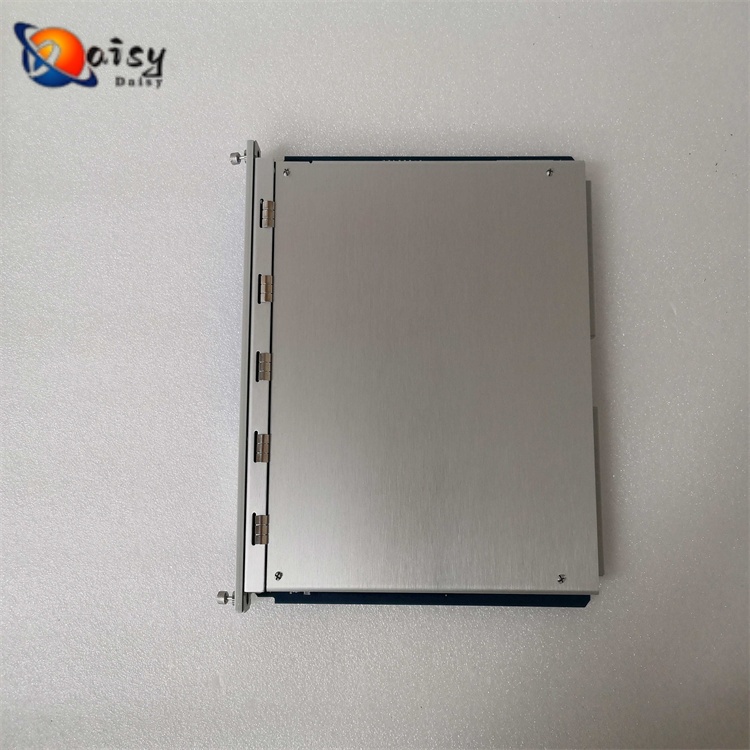

BENTLY 3500/94M 184826-01B is a VGA display module within the Bently Nevada 3500 monitoring system. Here are its detailed specifications.
1. Product Definition
The BENTLY 3500/94M 184826-01B is a VGA display module designed for the Bently Nevada 3500 monitoring system. It serves as a core human-machine interaction component of the system, responsible for visually presenting real-time monitoring data of mechanical equipment.
2. Data Sheet & Parameters
Brand/Manufacturer: Bently Nevada
Dimensions: Approximately 24.13 cm × 2.44 cm × 24.18 cm (9.50 in × 0.96 in × 9.52 in)
Weight: About 0.91 kg
Country of Origin: United States
I/O Modules: Optional position I/O modules with internal terminals (e.g., proximitor, RPT, DC LVDT)
Humidity Resistance: 95% relative humidity, non-condensing
Operating Temperature: -30°C to +65°C (-22°F to +150°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Rack Space Requirement: 1 full-height front slot
3. Operating Principle
The 3500/94M VGA display module utilizes a standard color VGA monitor with touchscreen technology to present data from the 3500 system. It consists of three main components: the 3500/94M VGA display module itself, its associated I/O modules, and the VGA display monitor.
The display monitor can be installed at a maximum distance of 6.1 meters (20 feet) from the rack via a standard cable, enabling flexible placement in control rooms or on-site observation areas.
The 3500/94M module is configured using the 3500 Rack Configuration Software. It supports customization of up to 9 screens; by default, one bar graph screen displays all 1x filtered vibration measurements, and another screen shows the gap values of proximity sensors—allowing operators to quickly access key equipment status data.
4. Application Scenarios
The 3500 monitoring system is used for continuous, permanent monitoring of rotating and reciprocating machinery across multiple industries. As a display module of this system, the BENTLY 3500/94M 184826-01B is also applicable to these scenarios, including but not limited to:
Industrial gas turbines and steam turbines for power generation and mechanical drive systems
Aerodynamic gas turbines
Hydraulic turbines
Compressors
Turboexpanders
Electric motors and generators
Excitation generators
Gearboxes
Pumps
Fans and blowers
Reciprocating compressors
