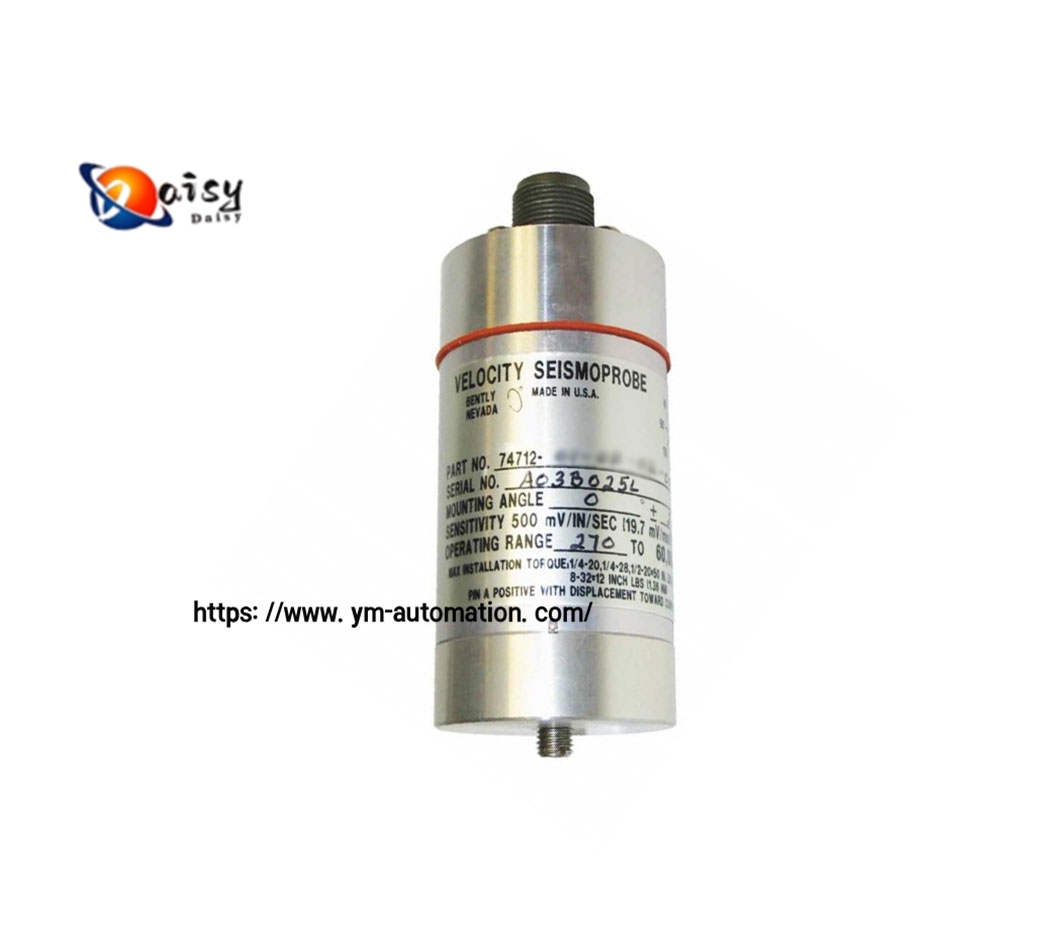

BENTLY 74712-06-05-03-00 Speed Sensor

In stock

Brand:BENTLY 74712-06-05-03-00

Warehouse: Spot

Condition: New original inventory

Warranty: 100% Perfect Functionality

Available for sale: nationwide, overseas

Warranty period: one year

Imported or not: Yes

Shipping location: Yuanmiao, Guizhou

BENTLY 74712-06-05-03-00 is a speed sensor. The following is the detailed data sheet:

Basic Information:
1. Type: High-temperature two-wire sensor.
2. Application: Used to measure the absolute vibration speed of bearing housings, enclosures or other key structures, providing critical data for monitoring the health status of bearings, enclosures and rotating equipment.
Sensitivity: 20mV/mm/s (500mV/in/s) at 100Hz (6000cpm), with an accuracy of ±5%.
Frequency Response: From the minimum operating frequency to 1kHz (60,000cpm), the typical value is +0 to ±3dB.
Transverse Sensitivity: ±10%.
Shock Resistance: Can withstand a mechanical shock of 50g peak acceleration along the non-sensitive horizontal axis.
Temperature Range: Operating temperature is -29℃ to +204℃ (-20°F to +400°F).
Installation-related:
1. Mounting Angle: As indicated by “-06” in the model, the mounting angle is 0±100, and the minimum operating frequency is 10Hz (600cpm).
2. Mounting Base: As indicated by “-05” in the model, the mounting base is without a base, with a 1/2 inch 20UNF-3A stud bolt.
3. Connector: As indicated by “-03” in the model, the connector is top-mounted on the terminal block.
External Dimensions: The typical height is 102mm (4in), and the typical diameter is 41mm (1.6in).
Weight: Approximately 0.48kg.
