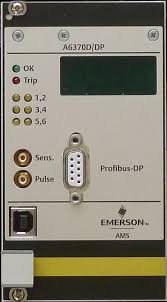

The parameters of Emerson A6370D/DP

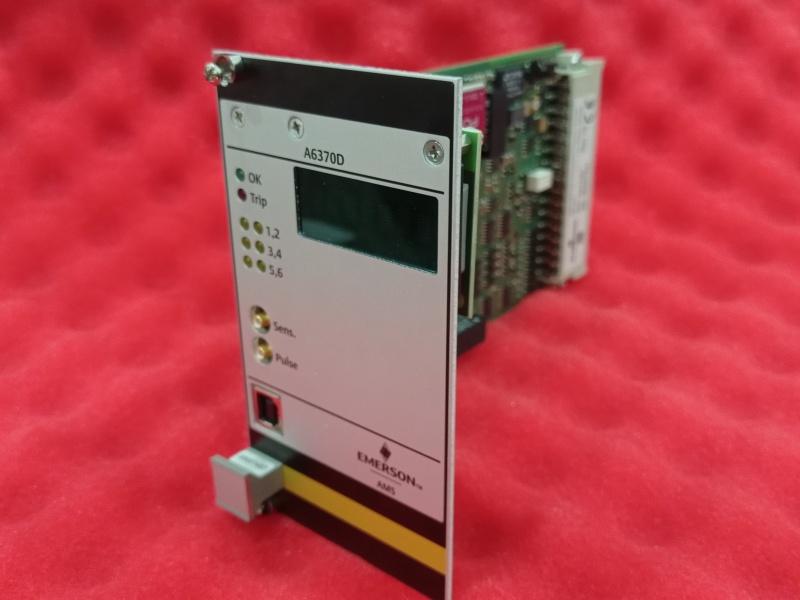

Emerson A6370D is an overspeed protection monitor. The following are its main parameters
Emerson A6370D is an overspeed protection monitor. The following are its main parameters
- Input Power Supply: 12 – 24V DC or AC 100 – 240V, 50/60Hz.
- Measurement Range: 0 – 10,000rpm.
- Accuracy: ±0.5% of the reading or 1rpm, whichever is larger.
- Response Time: Less than 50ms.
- Operating Temperature: -20°C to +60°C.
- Storage Temperature: -40°C to +85°C.
- Humidity Range: 0% – 95% non – condensing.
- Dimensions: 80×80×25mm.
- Connection Type: RS – 485 or analog output.
- Alarm Types: LED and relay output.

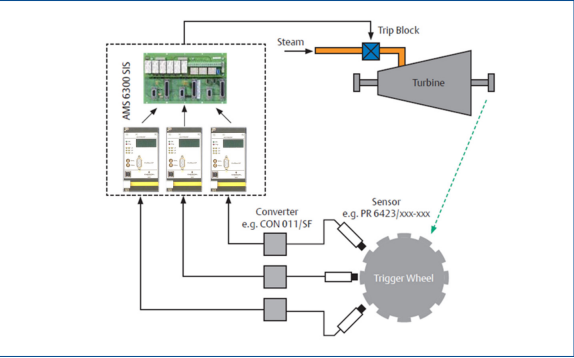

In addition, this monitor is part of the AMS 6300 SIS overspeed protection system and needs to be installed on a 19 – inch rack with the A6371 system backplane. It is suitable for eddy current sensors, Hall element sensors, and magnetic (VR) sensors. The sensor voltage supply is nominal supply voltage – 24.5V±1.5V DC, with short – circuit protection and a maximum current of 35mA.
