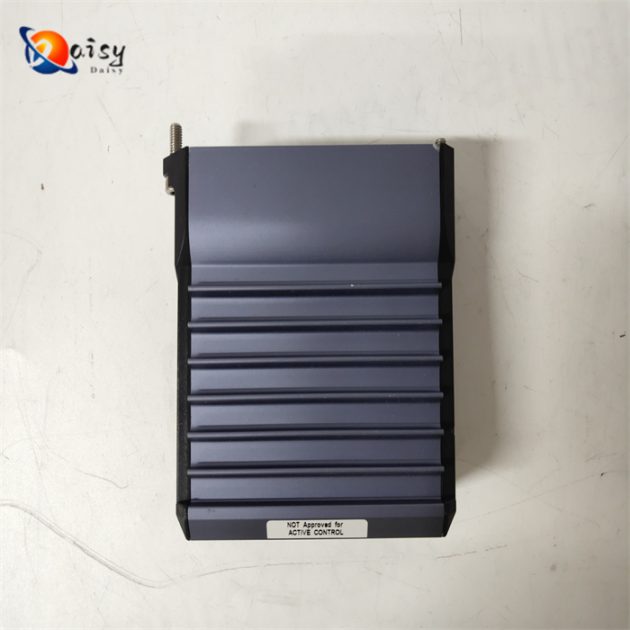

Parameters of FBM232 P0926GW

1. Physical Characteristics

• Dimensions: 50mm (width) × 136mm (height) × 118mm (depth)
• Mounting Method: Wall – mounted or DIN – rail mounted

2. Electrical Characteristics

• Power Supply: DC24V; Optional: AC/DC85 – 265V, DC – 48V, DC12V
• Internal Power Consumption: ≤5W
• Input/Output Channels: 16
• Communication Speed: 10/100Mbps
• Network Connection: The RJ45 port is 10Base – T/100Base – TX auto – adaptive, with a transmission distance of < 100m. The optical port is 100Base – FX, connected via SC/ST interfaces. It supports single – mode (20/40/60/80Km optional) and multi – mode (2/5Km optional), with a wavelength of 1310nm

3. Operating Environment

• Operating Temperature: – 10℃ ∽ + 70℃ (Wide – temperature range: – 40℃ ∽ + 75℃)
• Storage Temperature: – 45℃ ∽ + 85℃
• Humidity: 10% ∽ 95% without condensation

4. Network and Protocols

• Supported Network Redundancy Protocols: Supports O – Ring (up to 250 switches in a single ring network, self – healing time < 30ms) and MSTP (RSTP/STP) network redundancy protocols, Open – Ring open – loop network, compatible with other brands’ ring network technologies, O – Chain additional redundant ring network, compatible with different brands and different network topologies, and the standard IEC 62439 – 2 MRP (Media Redundancy Protocol)
• Other Protocol Support: Supports the IEEE 802.3at standard, providing a maximum of 30W output per port, supports IEEE 1588v2 clock synchronization, supports the IPv6 protocol, supports the Modbus TCP protocol, IEEE 802.3az energy – efficient Ethernet technology, application – based QoS management, IP – based bandwidth management, and port – based device binding security features
