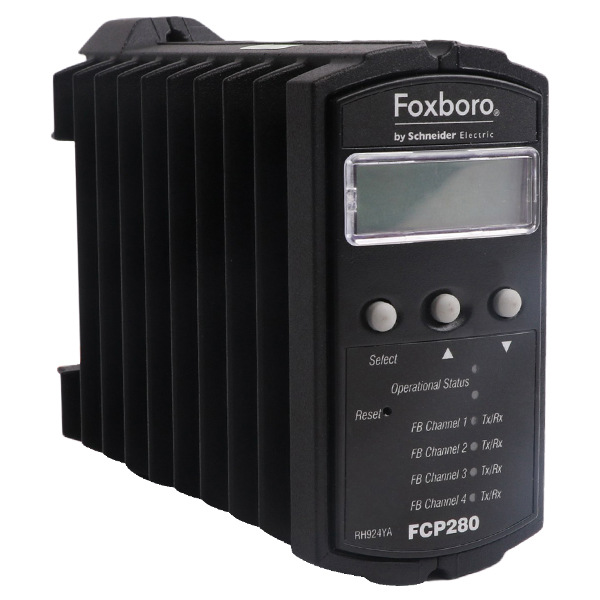

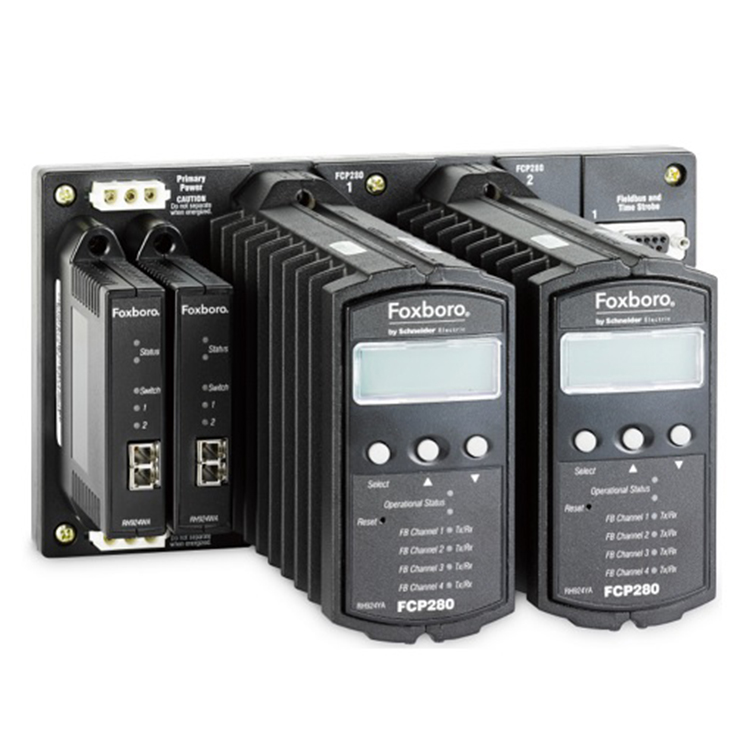

Foxboro FCP280 RH924YA is a Field Control Processor (FCP) module belonging to the Foxboro I/A series under Schneider Electric. It is a distributed, fault-tolerant optional field-mounted controller module, widely used in process industries such as petrochemicals, electric power, and metallurgy. Its main parameters are as follows:
- Processor: Dual-core PowerPC 440.
- Memory: 54MB SDRAM and 8MB Flash.
- Communication interfaces: Two pairs of 100Mbps Ethernet ports, two pairs of EIA-232 ports, and one EIA-485 port.
- Operating temperature range: -40°C to +70°C.
- Storage temperature range: -55°C to +85°C.
- Protection rating: IP67.
- Power supply: 24VDC.

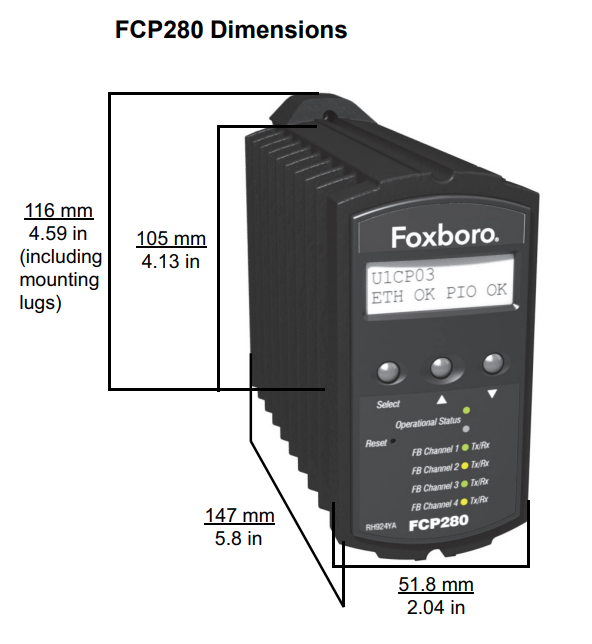

- Dimensions: 14.7 cm in length, 5.18 cm in width, 11.6 cm in height.
- Housing material: Stainless steel.
- Process connection: 1/2″~2″ NPT.
- I/O module support: Supports up to 128 compact or standard Series 200 Function Block Modules (FBMs), or a combination of 128 Series 100 and Series 200 FBMs.
