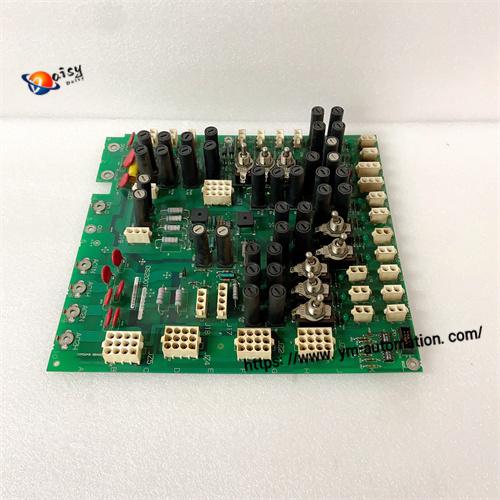

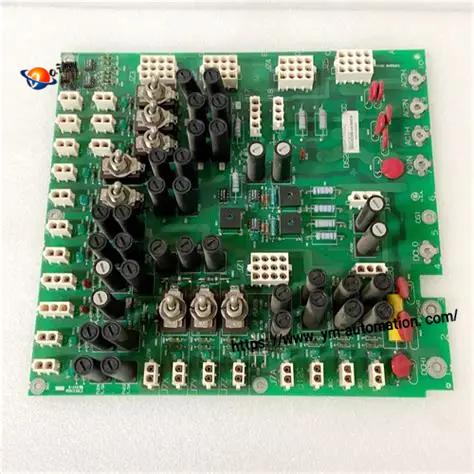

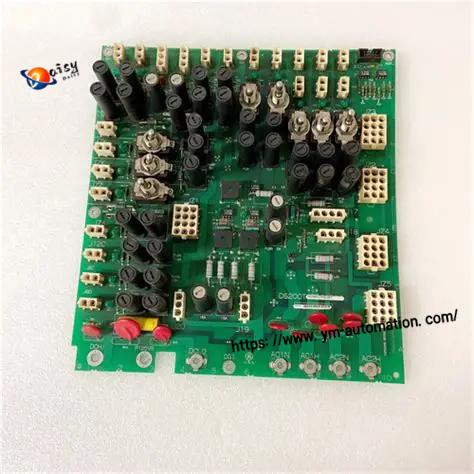

GE DS200TCPDG2BEC Power Distribution Board
Product Name: GE DS200TCPDG2BEC Power Distribution BoardBrand: General Electric (GE)Origin: USAStock Status: In StockWarranty: 12 Months
Overview
The GE DS200TCPDG2BEC is a high-reliability power distribution board tailored for GE Mark V/Mark VIeS turbine control systems. It serves as a critical component in industrial power systems, responsible for stable power supply to control system components and signal conditioning. It is widely applied in gas turbines, steam turbines, and wind power generation equipment, ensuring continuous and efficient operation of industrial control systems.
Core Specifications
| Category | Details |
|---|---|
| Input Voltage | 220V AC; 18 – 32VDC (nominal 28VDC); 38V/115V AC (control power transformer input) |
| Output Parameters | +24VDC (3A), -24VDC (1A); +5VDC (4A, adjustable); 15VDC (0.8A per channel, 0.25A for external load); 125VDC (trip solenoid rated value) |
| Output Frequency | Nominal 620kHz; VCO output nominal 250kHz (0 – 500kHz adjustable) |
| Physical Size | 33.0cm×17.8cm; weight about 0.46KG (varies by configuration) |
| Mounting Method | DIN rail mounting, compatible with standard industrial rail systems |
| Operating Temperature | -40℃ – 70℃ |
Key Features
Stable Power Distribution: Supplies controlled power to drive units and 115V AC power to cabinet fans. It also provides stable power for processors, memory, and I/O modules in the control system.
Comprehensive Protection Mechanism: Equipped with FU1/FU2/FU3 fuses to prevent short circuits. LED indicators (CR51/CR55) promptly alert to fuse burnout, minimizing system downtime.
Flexible Signal Regulation: DIP switches (SW4/SW5/SW6) adjust input voltage, motor voltage feedback, and attenuation circuits, adapting to diverse system configuration needs. Its VCO circuit converts input voltage into frequency signals for real-time system monitoring.
Easy Maintenance: Modular design and DIN rail mounting allow quick integration and replacement. LED status indicators enable intuitive troubleshooting of fuse and power status.
Application Scenarios
Power plants: Powers auxiliary systems and control cores of steam/gas turbines.
Wind power generation: Provides stable power for wind turbine control modules.
Industrial automation: Acts as a power interface between control systems and power supply systems in heavy industrial equipment.
Certifications
Compliant with CE, UL, and CSA standards, meeting global industrial safety and quality requirements.
