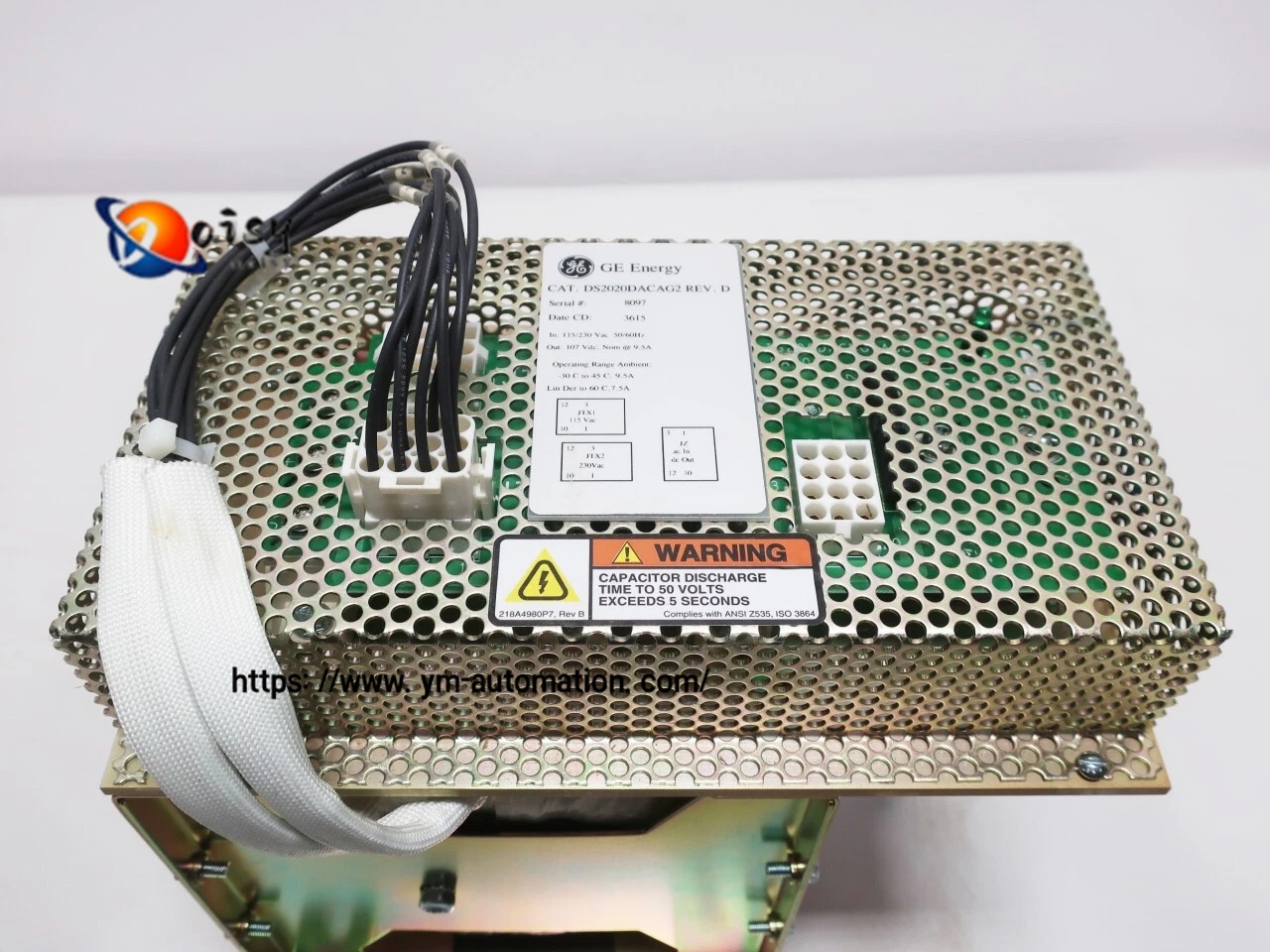

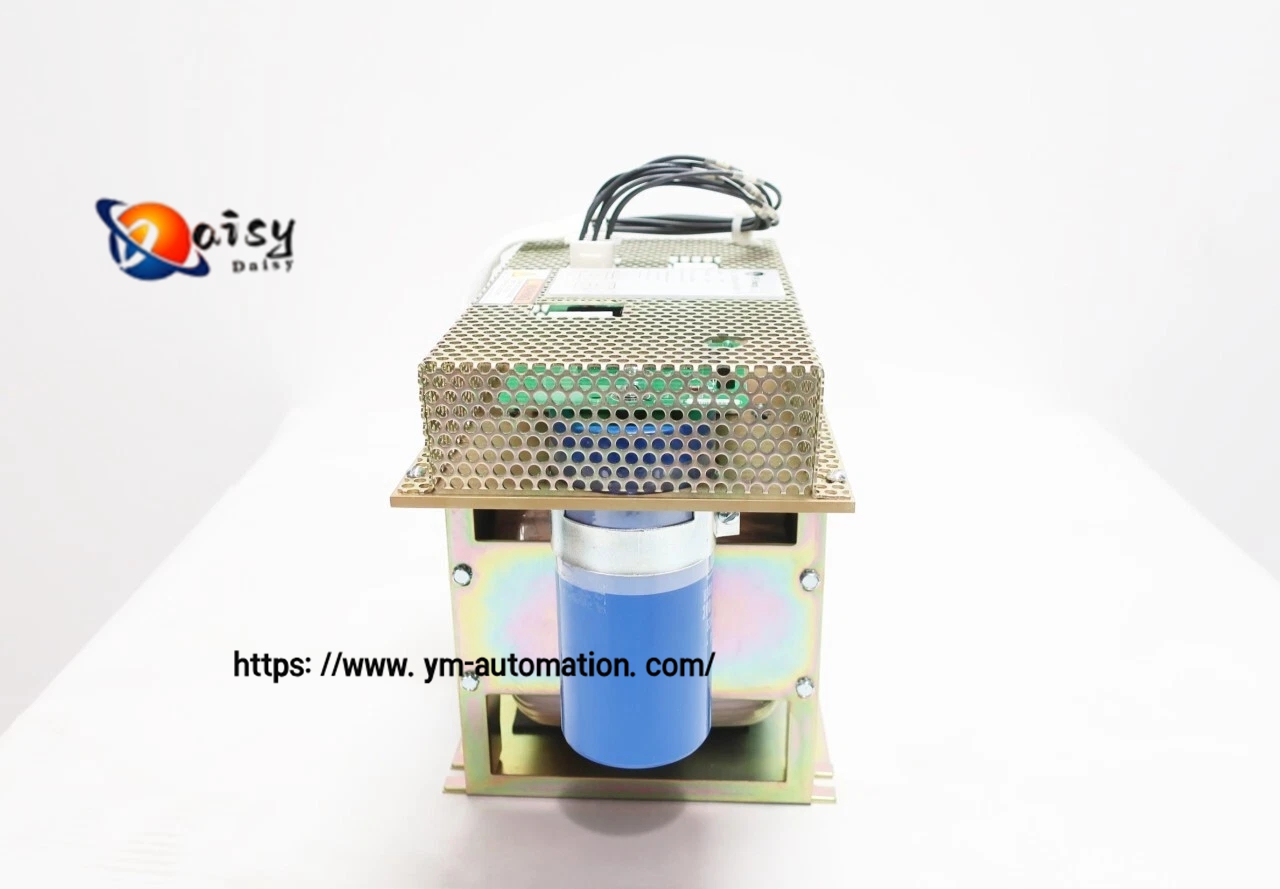

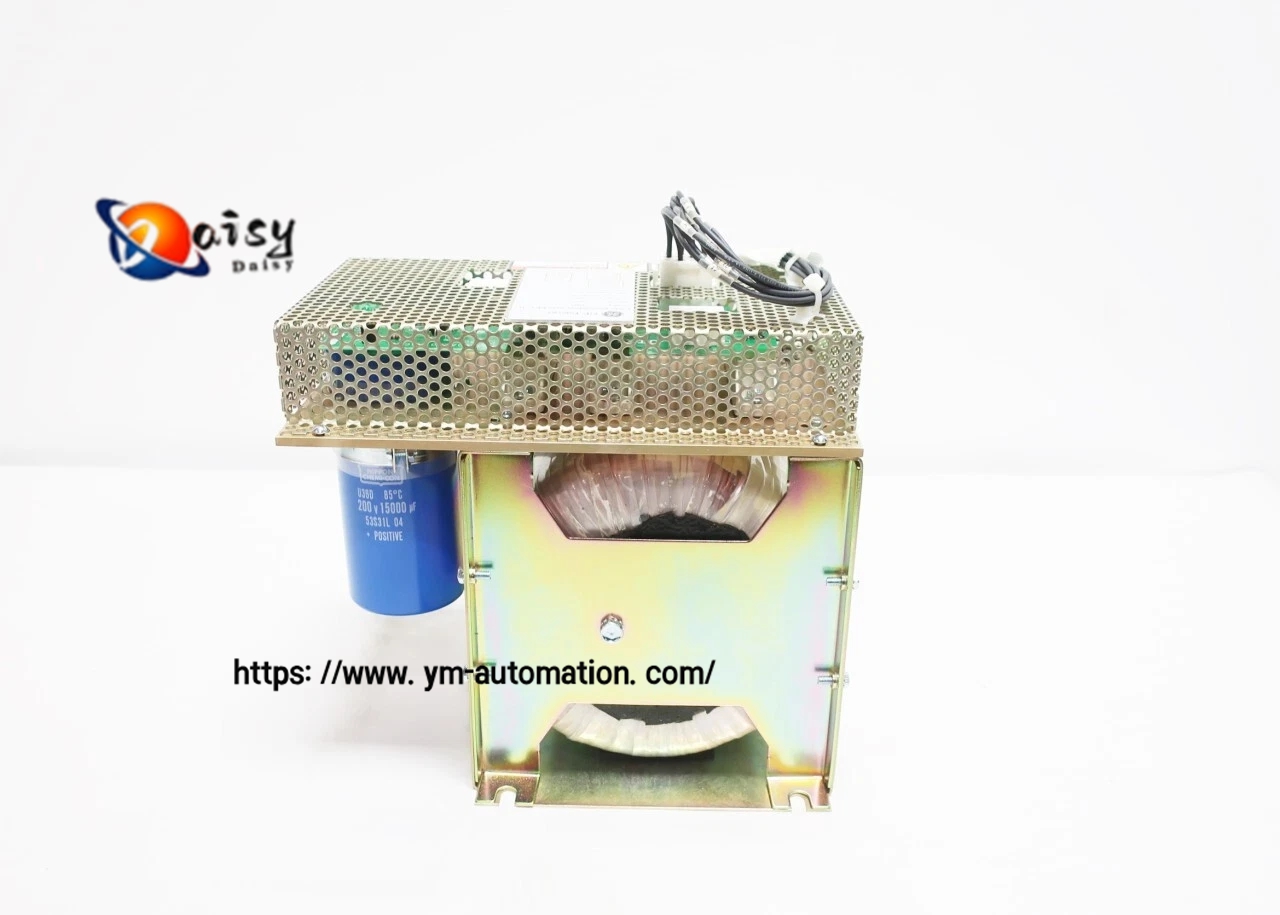

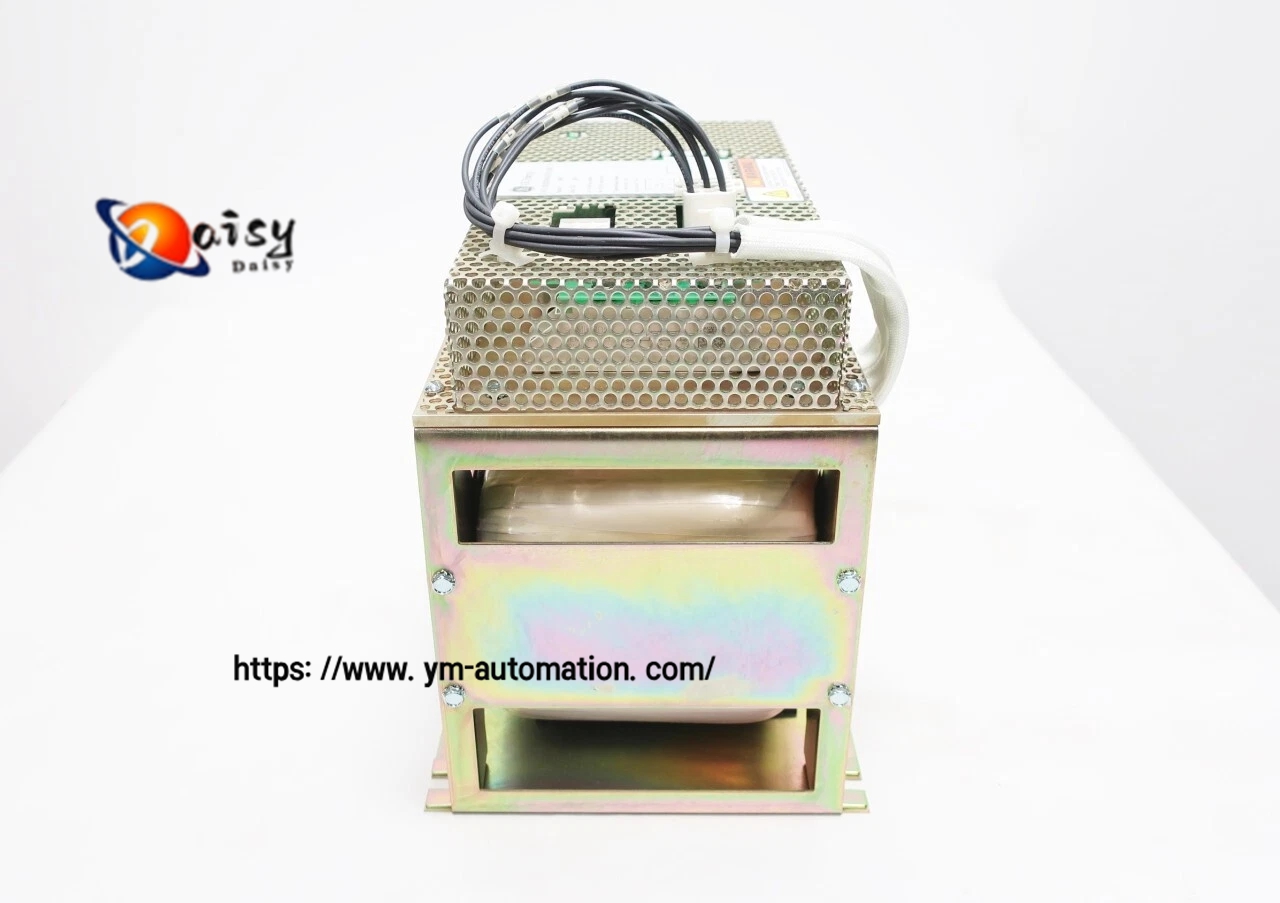

GE DS2020DACAG2 Power Module

In stock

Brand:GE DS2020DACAG2

Warehouse: Spot

Condition: New original inventory

Warranty: 100% Perfect Functionality

Available for sale: nationwide, overseas

Warranty period: one year

Imported or not: Yes

Shipping location: Yuanmiao, Guizhou

Tags: GE DS2020DACAG2 Power Module

There are various opinions on GE DS2020DACAG2. Some consider it a current sensing interface board, some data show it is a digital-to-analog conversion module, and others indicate it belongs to AC/DC power conversion components. The relevant data sheet information is as follows:

Basic Information
1. Manufacturer: GE Fanuc
2. Product Type: Digital-to-analog conversion module or AC/DC power conversion component
3. Country of Origin: United States
Dimensions and Weight
1. Dimensions: 178mm × 94mm × 100mm
2. Weight: Approximately 1.2kg
Electrical Parameters
1. Input Voltage: 24VDC ± 10%
2. Output Voltage: 125VDC
3. Maximum Output Current: 30A
4. Power Conversion: 115/230VAC input to 126VDC output
5. Power Factor: ≥ 0.95
6. Efficiency: 98%
Performance Parameters
1. Resolution: 16 bits
2. Output Channels: 4 independent analog outputs
3. Output Range: Configurable as ±10V, 0 to 10V, or 4 to 20mA
4. Accuracy: ±0.05% of full scale
5. Settling Time: <10μs (to 0.01%)
6. Temperature Coefficient: 5ppm/°C
Communication Interface: Supports RS-485, Profibus DP, Ethernet/IP
Operating Environment
1. Operating Temperature: -40°C to 85°C
2. Storage Temperature: -55°C to 90°C
3. Humidity: 5% to 95%, non-condensing
4. Protection Rating: IP20
Other Features
1. Diagnostic Function: Built-in self-diagnosis for fault detection
2. Protection Functions: Equipped with overvoltage protection, overcurrent protection, and short-circuit protection
