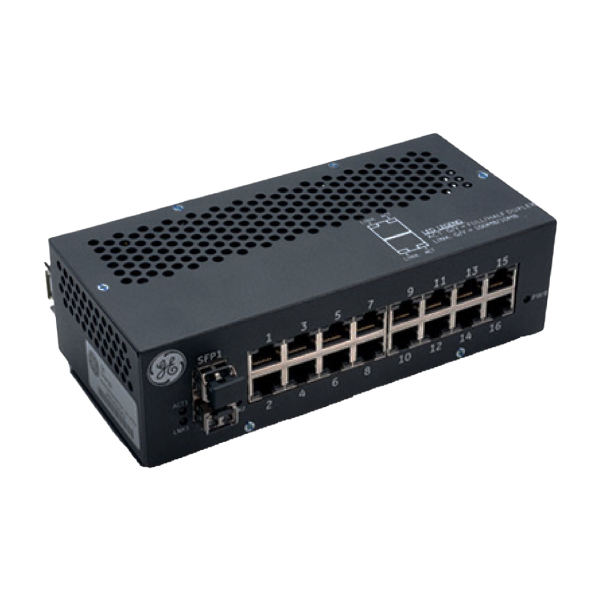

- GE Fanuc IS420ESWBH3A is an Ethernet IONet switch, belonging to GE’s distributed gas turbine control system Mark VIe series. Its specific parameters are as follows:
- Basic Information:
- Product Type: Ethernet IONet switch
- Part Number: IS420ESWBH3A
- Manufacturer: General Electric (GE)
- Series: Mark VIe
- Software and Operating System:
- Software: Control ST V04.03.18C
- Operating System: QNX Neutrino (real-time operating system)
- Power Supply and Memory:
- Memory: 256MB DDR SDRAM
- Power Requirement: 18V DC to 32V DC
- Environmental Conditions:
- Relative Humidity: 5% to 95%, non-condensing
- Connection Characteristics:
- Ports: 8 x 10/100Base-TX ports
- Uplink Port: 100Mbps fiber port (FX)
- Auto-negotiation: Full-duplex/half-duplex, 10/100Mbps
- Auto-sensing: HP-MDIX (crossover adaptation)
- Indicators and Performance:
- LED Indicators: Link, Activity, Duplex, Speed, Power
- Buffer: 256KB, supporting 4K Media Access Control (MAC) addresses
- Installation Method: DIN rail mounting
- Physical Dimensions and Weight:
- Dimensions: 138×86×56 mm
- Dimensions: 138×86×56 mm
