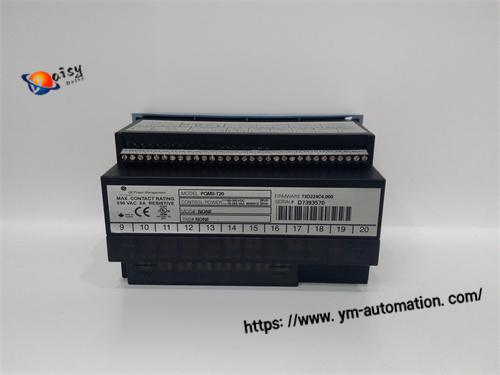

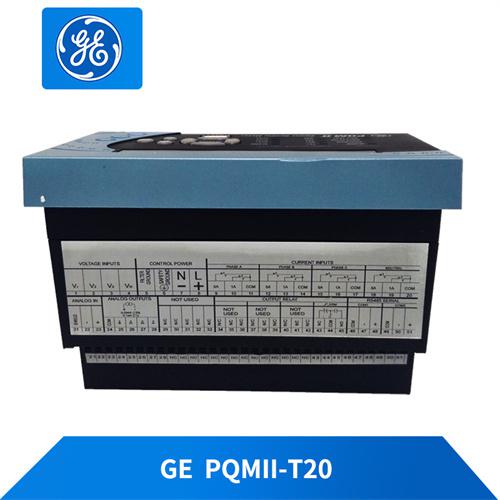

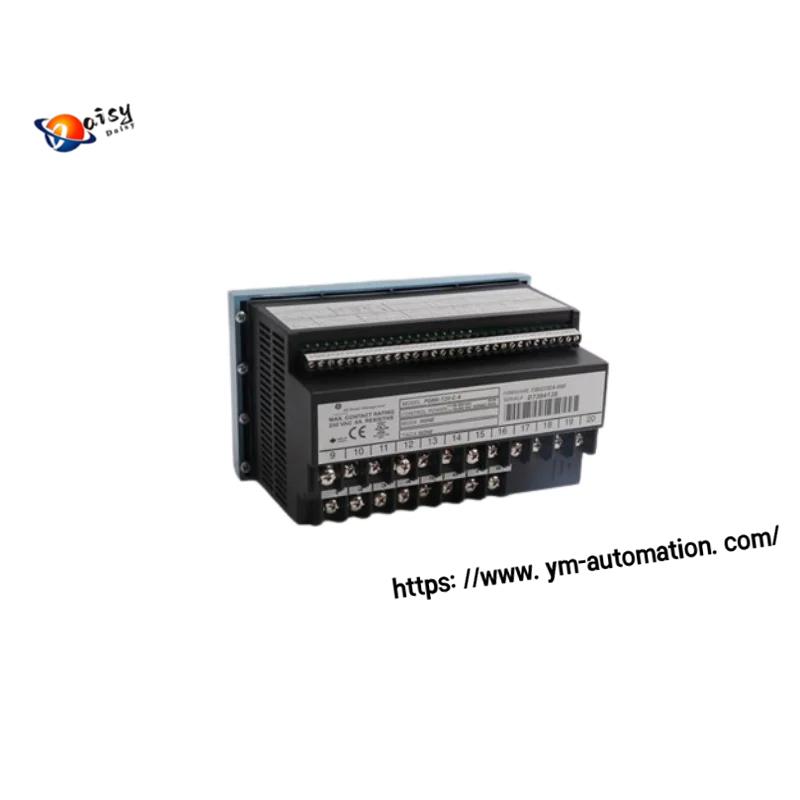

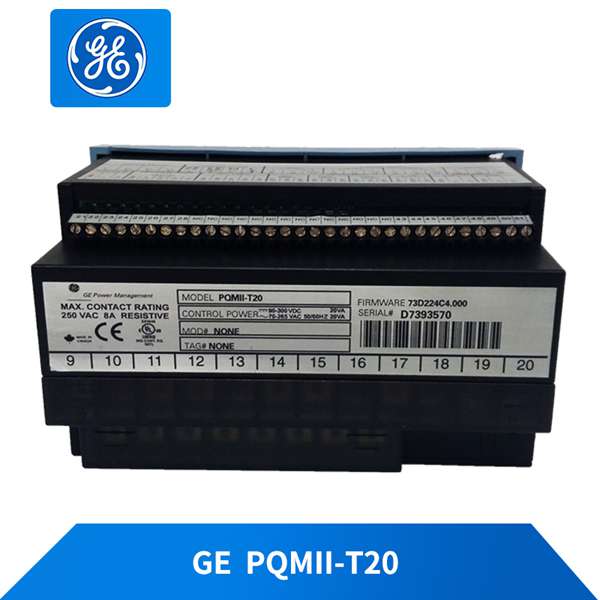

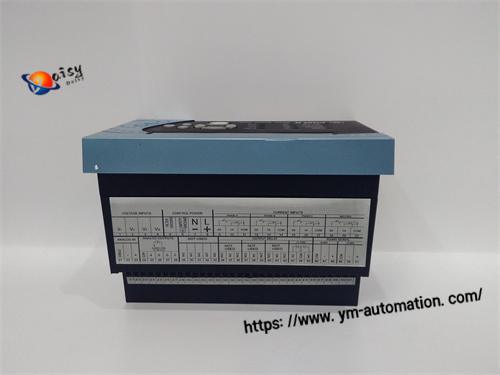

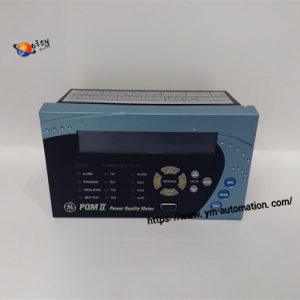

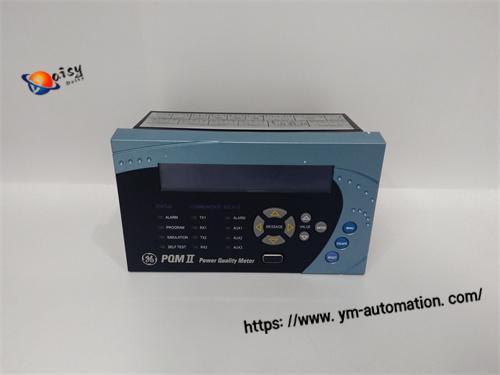

GE PQMII-T20 Product Details
The GE PQMII‑T20 is a professional three‑phase power quality monitoring device designed for industrial power systems, utility substations, data centers and commercial facilities. It provides real‑time electrical parameter measurement, power quality analysis, event recording and communication functions to ensure stable and efficient operation of power equipment.
Key Features
High‑Precision Metering: Voltage/current ±0.2% accuracy; power/energy ±0.5% accuracy
Comprehensive Parameter Monitoring: Voltage, current, real/reactive/apparent power, energy, power factor, frequency, and harmonics up to the 63rd order
Voltage Disturbance Recorder (VDR): Captures voltage sags, swells, and transients; logs up to 500 disturbance events
Event & Data Logging: 150‑event recorder; 98,000 data points storage; high‑speed transient waveform capture
Flexible I/O: 4 analog outputs (0–20/4–20mA), 7 digital inputs, 8 relay outputs; programmable setpoints for alarms, load shedding, and power factor correction
Multi‑Protocol Communications: RS232 (front), dual RS485 (rear); supports Modbus RTU/TCP, DNP3.0; Ethernet‑ready via MultiNet converter
Industrial Design: Rugged panel‑mount construction; wide power input (70–265VAC / 90–300VDC); operates in harsh environments
Software Support: Compatible with EnerVista PQMII for configuration, monitoring, and reporting
Technical Specifications
| Parameter | Details |
|---|---|
| Voltage Range | 10–600VAC (L‑N), 17–1000VAC (L‑L) |
| Current Range | 0.1–10,000A (via external sensors) |
| Frequency | 45–65Hz |
| Power Supply | 70–265VAC / 90–300VDC (standard); 20–60VDC / 20–48VAC (optional) |
| Operating Temp | -40°C to +85°C |
| Certifications | CE, UL, CSA |
| Weight | ~1.37kg (3.02lbs) |
Applications
Power monitoring for distribution feeders, transformers, generators, capacitor banks, and motorsGE Vernova
Medium/low‑voltage power quality analysis in industrial plants, substations, and data centers
Load management, demand response, and power factor correction control
Integration with SCADA, DCS, and BMS systems for centralized energy management
HS Code & Customs Info
HS Code: 8538900000 (Electrical parts & accessories for machinery/equipment)
Declaration: Industrial Power Quality Monitor (GE PQMII‑T20)
Why Choose GE PQMII‑T20
Delivers unmatched accuracy, robust data capture, and seamless industrial integration—ideal for maintaining power reliability, reducing downtime, and ensuring compliance with power quality standards.
