1. Product Overview

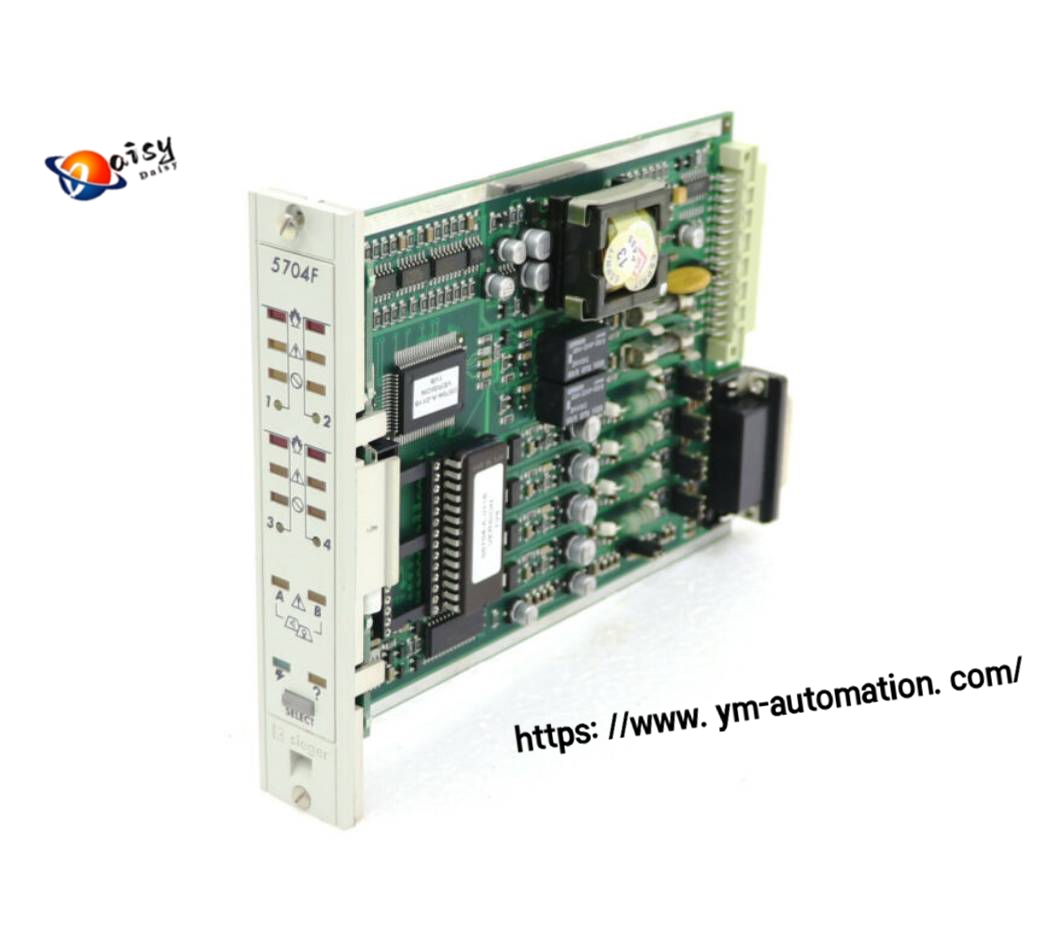

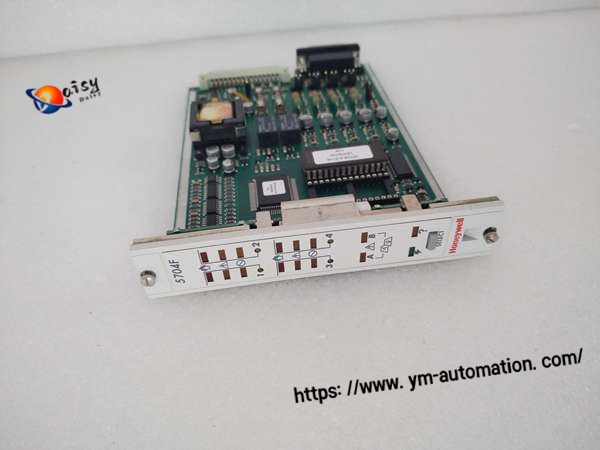

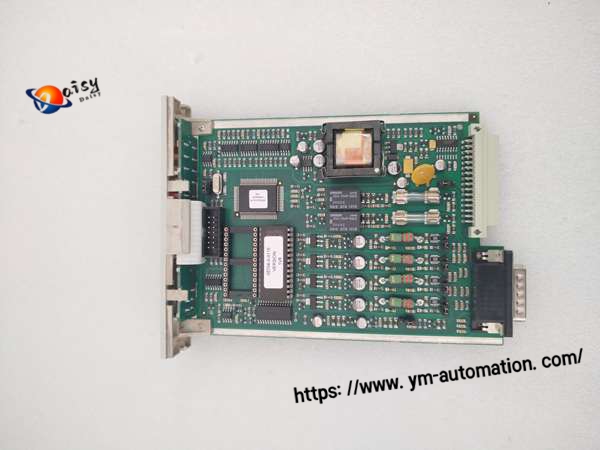

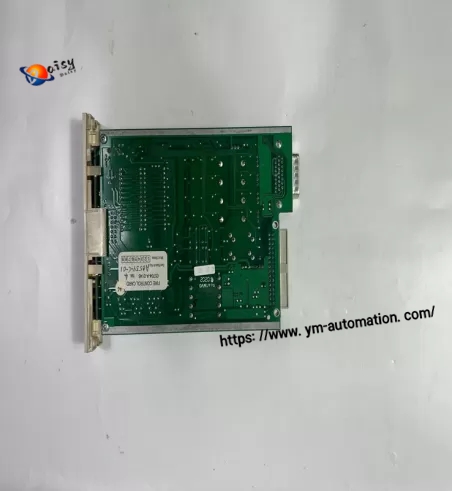

The Honeywell 05704 – A – 0146, also known as the 5704F fire control card, is a crucial component in Honeywell’s fire – control product line. It is designed to provide reliable and efficient fire – control functions in industrial and commercial environments. With its advanced technology and compact design, the 5704F fire control card can effectively monitor and control fire – related situations, ensuring the safety of people and property. It is suitable for a wide range of applications, including large – scale industrial plants, commercial buildings, and public facilities.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 05704 – A – 0146 (5704F) |
| Supply Voltage | 21V to 32V DC |
| Power Consumption | 2W |
| Operating Temperature | – 5°C to + 55°C |
| Storage Temperature | – 25°C to + 55°C |
| Operating Humidity | 20 – 90% RH (non – condensing) |
| Dimensions | 3U high x 25 mm wide |
| Weight | 175g |
| Approvals | EN 50270 |
3. Product Features
Multi – zone Control: The 5704F fire control card provides four zones of fire control within a 1 – inch wide package. This allows for precise monitoring and control of different areas, enabling quick identification and response to fire incidents in specific zones.
LED Indication: It is equipped with LEDs that indicate the individual fire – zone status. This visual indication makes it easy for operators to quickly assess the situation at a glance, without the need for complex diagnostic procedures.
Monitored Outputs: The card has two – line monitored outputs. These outputs can be used to connect to external devices such as alarms, sirens, or other fire – control equipment, ensuring that the appropriate actions are taken in the event of a fire.
High – density Installation: Up to 15 cards can be installed in a 19 – inch rack. This high – density installation feature allows for efficient use of space, making it suitable for applications where space is limited.
Compatibility: The 5704F fire control card is compatible with a wide range of fire detectors, including flame, smoke, and heat detectors, as well as manual call points. This makes it a versatile solution that can be integrated into existing fire – detection systems.
4. Application Scenarios
Industrial Plants: In industrial plants, such as oil refineries, chemical plants, and power plants, the 5704F fire control card can be used to monitor and control fire –prone areas. It can detect early signs of fire and trigger appropriate responses, such as shutting down equipment, activating fire – suppression systems, and alerting personnel.
Commercial Buildings: Commercial buildings, such as shopping malls, offices, and hotels, also require reliable fire – control systems. The 5704F fire control card can be used to ensure the safety of occupants and property by providing accurate fire – zone monitoring and control.
Public Facilities: Public facilities, such as hospitals, schools, and airports, have strict safety requirements. The 5704F fire control card can be used to meet these requirements by providing a reliable and efficient fire – control solution.
