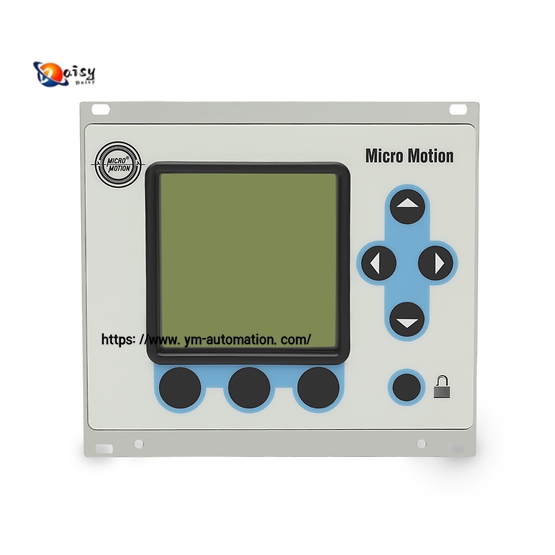

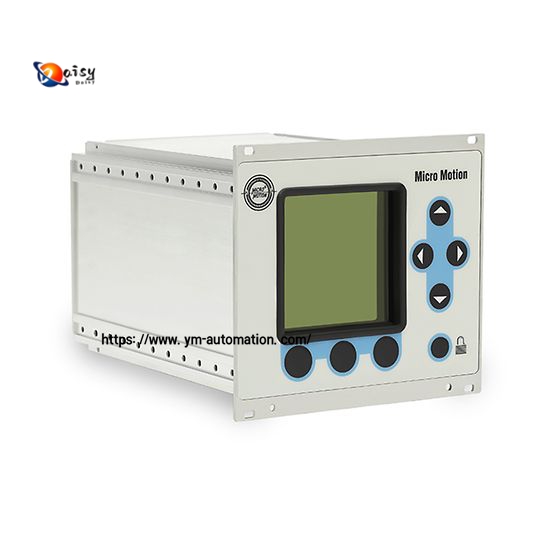

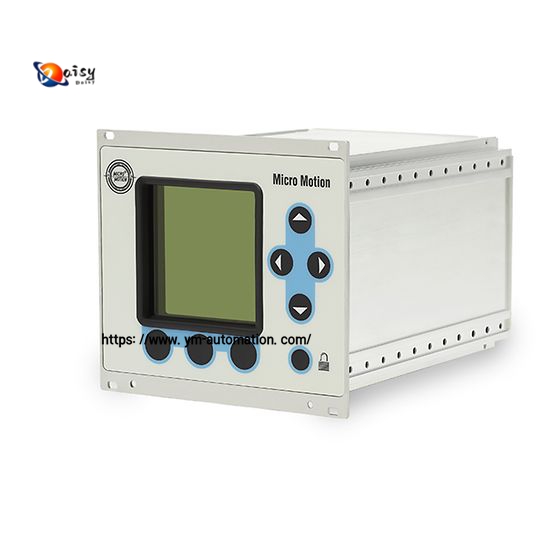

MICRO MOTION 3500P1A05B1AEZZZ” refers to a transmitter of Coriolis mass flow meters by Micro Motion, a brand under Emerson. This series is used for high-precision measurement of flow, density, and temperature for liquids and gases, widely applied in industries such as chemical, petroleum, food, and pharmaceutical sectors.
Core Parameters and Functions
-
Measurement Capability
- Mass flow accuracy: ±0.1% (liquids) or ±0.35% (gases)
- Density accuracy: ±0.0005 g/cm³
- Temperature accuracy: ±0.5°C (depending on the sensor model)
-
Communication Protocols
- Supports multiple industrial protocols including HART, Modbus RTU, Profibus PA/DP, and Foundation Fieldbus
- Optional 4-20mA analog output (with HART overlay) or digital output
-
Process Connections
- Sensor interface: Compatible with various 口径 (DN15-DN200) sensors from Micro Motion
- Protection class: IP66/68 (NEMA 4X) for harsh environments
-
Power Requirements
- Power supply range: 18-30VDC (standard) or 85-265VAC (optional)
- Power consumption: <20W
-
Explosion-Proof Certifications
- Optional explosion-proof ratings: ATEX, IECEx, CSA, FM, etc., suitable for hazardous areas
-
Display and Configuration
- Local LCD display (optional): Enables real-time display of multi-parameters like flow, density, and temperature
- Remote configuration via MCT™ 100/200 software or HART handheld devices
Model Analysis
- 3500P: Represents the 3500 series transmitter platform (supporting advanced diagnostics and multi-variable output)
- 1: Input type (typically 1 indicates digital input)
- A05: Communication protocol configuration (e.g., A05 may denote HART protocol)
- B1: Output configuration (e.g., B1 may signify 4-20mA + HART output)
- AE: Housing material and protection class (e.g., AE may refer to an aluminum explosion-proof enclosure)
- ZZZ: Factory-customized code (may include special functions or calibration information
Typical Application Scenarios
- Precise metering and batching of chemical raw materials
- Trade measurement in oil and gas industries
- Ingredient control in food and beverage sectors
- High-precision fluid conveying in pharmaceutical industrie
