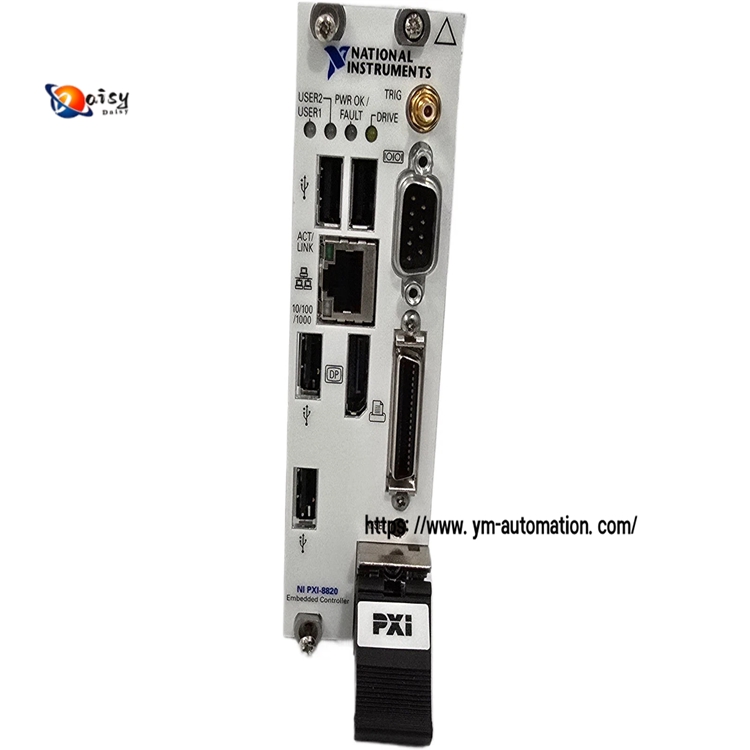

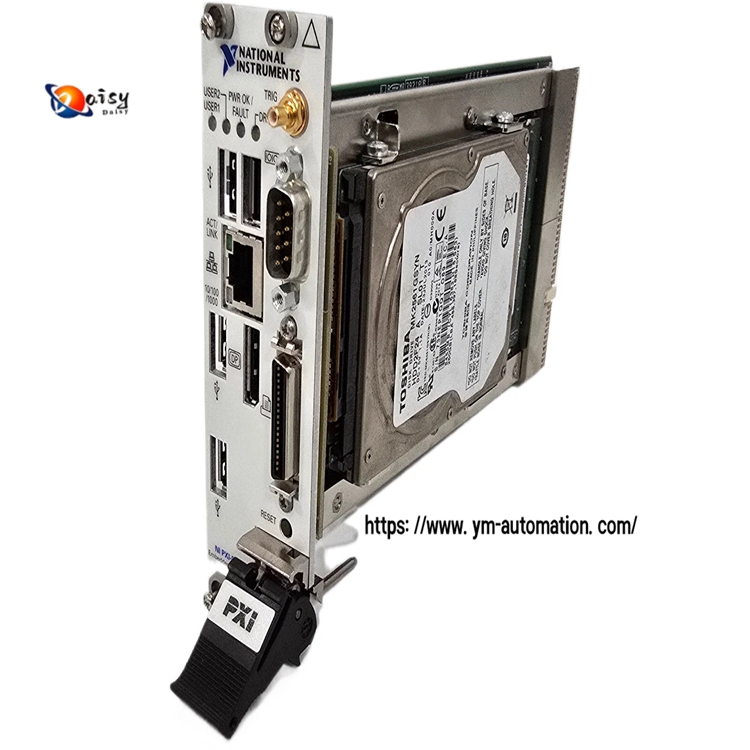

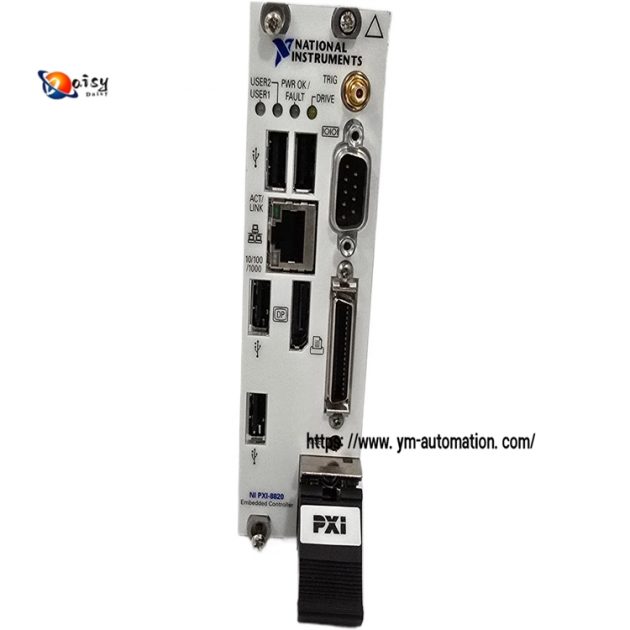

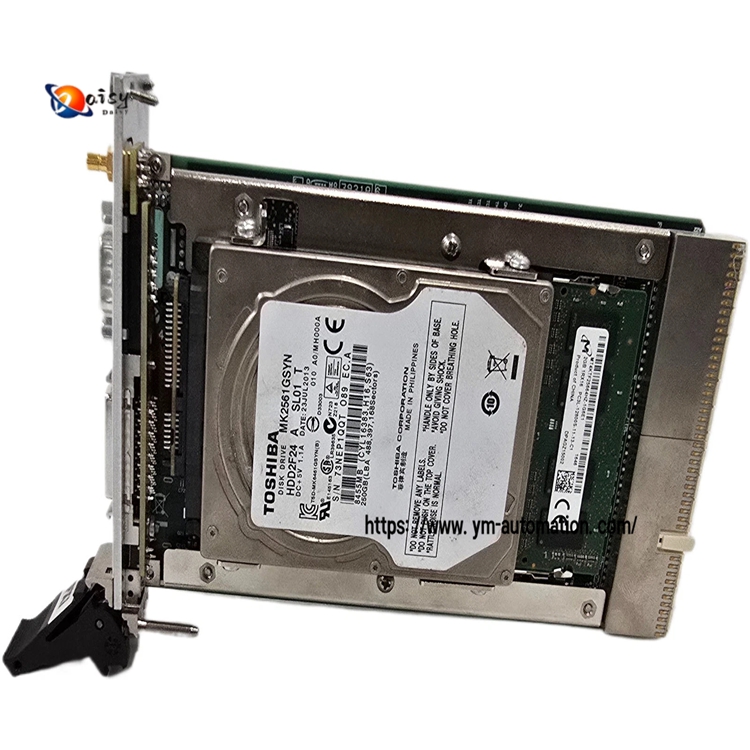

NI PXI-8820 2.2 PXI Embedded Controller

In stock

Brand:NI PXI-8820 2.2
Warehouse: Spot

Condition: New original inventory

Warranty: 100% Perfect Functionality

Available for sale: nationwide, overseas

Warranty period: one year

Imported or not: Yes

Shipping location: Yuanmiao, Guizhou

Tags: NI PXI-8820 2.2 PXI Embedded Controller

The NI PXI-8820 is a PXI embedded controller launched by National Instruments (NI). The “2.2” typically refers to the processor clock speed of 2.2GHz. Here are its parameter details:

Key Parameters

Product Type: PXI Embedded Controller.
Processor: Intel Celeron 1020E dual-core, 2.2GHz, 2MB cache.
System Bandwidth: Up to 1GB/s.
Slot Bandwidth: 250MB/s (four x1 PCI Express connections).
Memory: Standard 2GB DDR3L (1333MHz), expandable to 8GB.
Storage: 250GB or larger SATA hard drive (laptop form factor). Supports Windows 7 installation from USB devices (CD/DVD-ROM) or external SCSI CD-ROM via PXI-SCSI adapter.
Form Factor: 2-slot 3U PXI Express module.
Weight: Approximately 1.87lb (0.85kg).
Standard I/O Interfaces: 1 DisplayPort video interface, 1 RS-232 serial port, 1 parallel port, 4 high-speed USB 2.0 ports, 1 Gigabit Ethernet port, 1 reset button, and PXI trigger interface.
Trigger Function: Front-panel SMB connector supporting PXI trigger bus input/output.
Operating System: Compatible with 32-bit Microsoft Windows 7, also supports LabVIEW Real-Time OS.
Operating Temperature: 5°C to 50°C.
Application Fields: Suitable for industrial control, data acquisition, test and measurement, etc.
