1. Product Overview

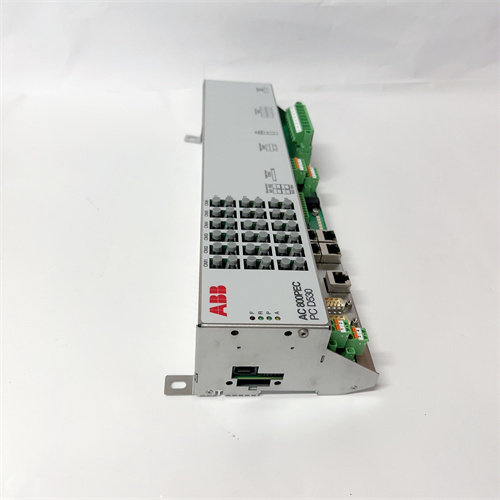

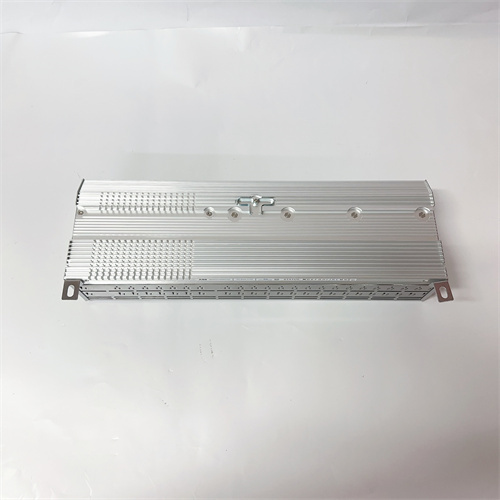

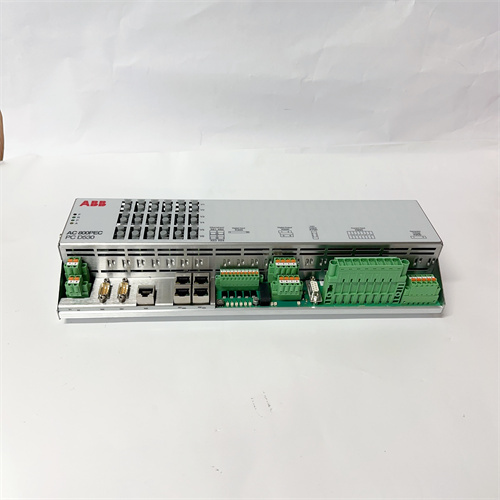

PCD530A 3BHE041343R0102 is a high-performance communication control module designed for industrial automation and power system control. It serves as a core interface for data transmission and protocol conversion between distributed control systems (DCS), programmable logic controllers (PLC), and field devices. Compliant with IEC 61131-3 and EN 61000-6-2 standards, it ensures stable, real-time communication in harsh industrial environments, making it ideal for power generation, petrochemical, and heavy manufacturing sectors.
2. Key Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | PCD530A 3BHE041343R0102 |
| Product Type | Communication Control Module |
| Communication Protocols | PROFINET, Modbus TCP/RTU, Ethernet/IP, IEC 61850 |
| Data Transfer Rate | Up to 1 Gbps (Ethernet ports) |
| Communication Ports | 4×Ethernet (RJ45), 2×RS485/RS232 |
| Power Supply | 24V DC (±10% tolerance), redundant input |
| Operating Temperature | -25°C to +70°C |
| Protection Class | IP20 (rack-mounted) |
| Certifications | CE, UL, CSA, IECEx |
| Dimensions (W×H×D) | 120mm × 180mm × 60mm (4.72in × 7.09in × 2.36in) |
| Weight | Approx. 0.5kg (1.1lb) |
3. Core Application Scenarios
3.1 Power Generation (Thermal & Renewable Energy)
Serves as a communication bridge between turbine control systems, boiler monitoring devices, and DCS in thermal power plants.
Enables real-time data sharing between solar/wind inverters and grid control systems, supporting efficient energy dispatching.
3.2 Petrochemical Industry
Connects process sensors (pressure, temperature) and actuators (valves, pumps) to central DCS, ensuring reliable transmission of production data.
Supports remote monitoring of pipeline flow meters and storage tank level devices, reducing on-site operation risks.
3.3 Heavy Manufacturing
Facilitates communication between PLCs of production lines (e.g., automotive assembly, steel rolling) and MES (Manufacturing Execution Systems), optimizing production scheduling.
Ensures anti-interference data transmission in high-voltage, high-noise factory environments.
4. Core Features
Multi-Protocol Compatibility: Supports PROFINET, Modbus, and IEC 61850, eliminating protocol barriers between different devices.
High-Speed Data Transmission: 1 Gbps Ethernet ports enable real-time control, avoiding delays in critical processes.
Redundant Design: Redundant power input and dual-network ports minimize downtime caused by hardware failures.
Harsh Environment Adaptability: Wide operating temperature range (-25°C to +70°C) and anti-interference performance suit industrial on-site conditions.
