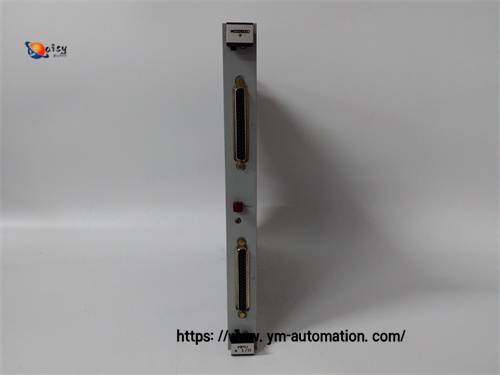

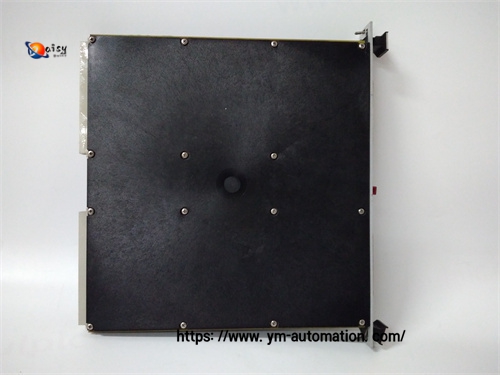

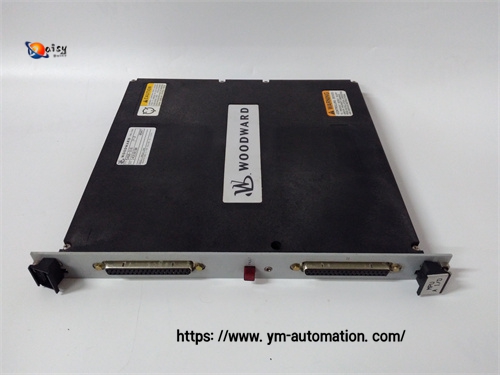

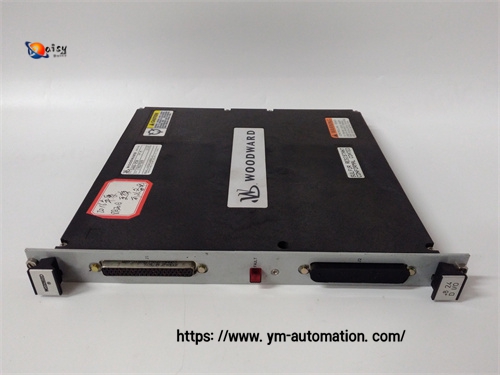

1. Product Overview
Woodward 5466-1035 is a high-performance electronic control module tailored for engine and turbine speed regulation in industrial and power generation applications. It delivers precise control over fuel injection or valve actuation, ensuring stable operation under variable loads. Compliant with industry standards like ISO 8528 and SAE J1939, it’s ideal for diesel/gas engines in power plants, marine vessels, and heavy-duty machinery.
2. Key Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 5466-1035 |
| Product Type | Electronic Control Module |
| Application | Engine/Turbine Speed Regulation |
| Speed Control Range | 50–3600 RPM |
| Control Accuracy | ±0.1% (steady-state) |
| Input Signals | Magnetic pickup (0.5–25 V AC), 4–20 mA load signal |
| Output Signals | PWM (0–100% duty cycle), 0–5 V DC analog output |
| Power Supply | 12–24 V DC (±15% tolerance) |
| Operating Temperature | -40°C to +70°C |
| Protection Class | IP65 (enclosure) |
| Certifications | CE, UL, ISO 8528 |
| Dimensions (W×H×D) | 120×80×45 mm |
| Weight | Approx. 0.5 kg |
3. Core Features
- Precision Regulation: ±0.1% steady-state accuracy ensures consistent engine/turbine speed, reducing energy loss.
- Multi-Signal Compatibility: Supports magnetic pickup and analog load signals, adapting to diverse sensor setups.
- Harsh Environment Resistance: IP65 protection and -40°C to +70°C operating range withstand dust, moisture, and temperature fluctuations.
- Easy Integration: SAE J1939 protocol support enables seamless connection to vehicle/industrial control networks.
4. Application Fields
- Power Generation: Controls generator-set engines for stable electricity output (grid-connected/backup power).
- Marine Industry: Regulates main propulsion engines for smooth vessel navigation.
- Heavy-Duty Machinery: Manages engine speed in construction equipment (excavators, bulldozers) and industrial pumps.
