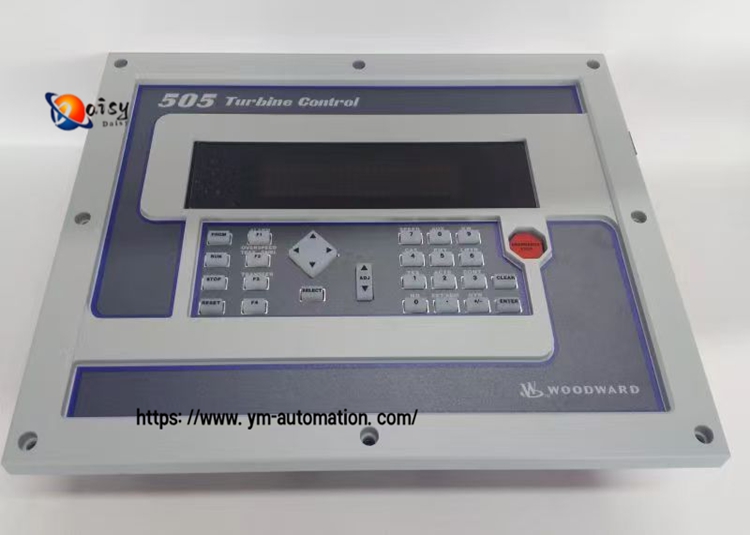

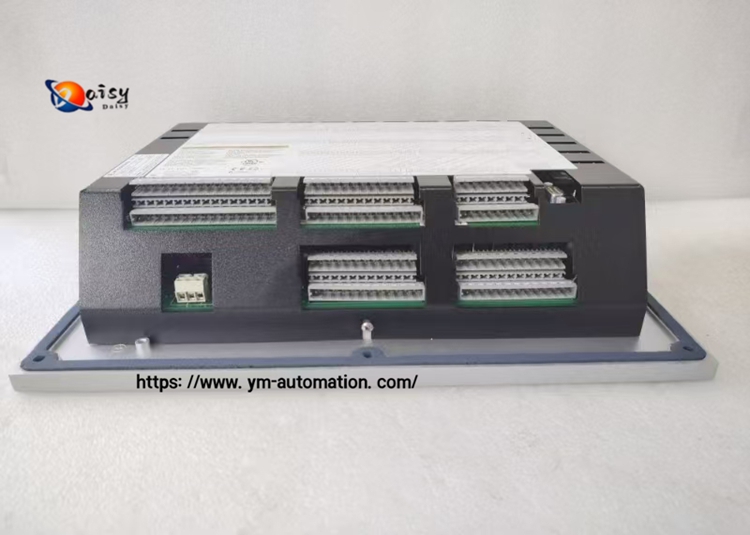

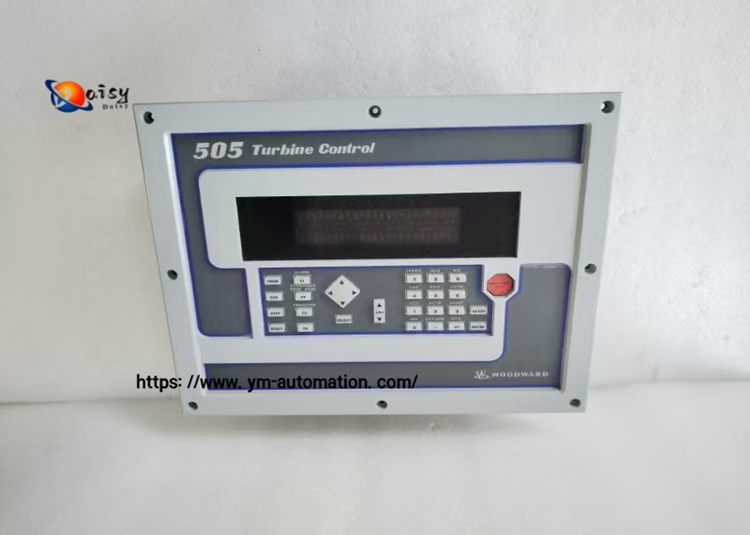

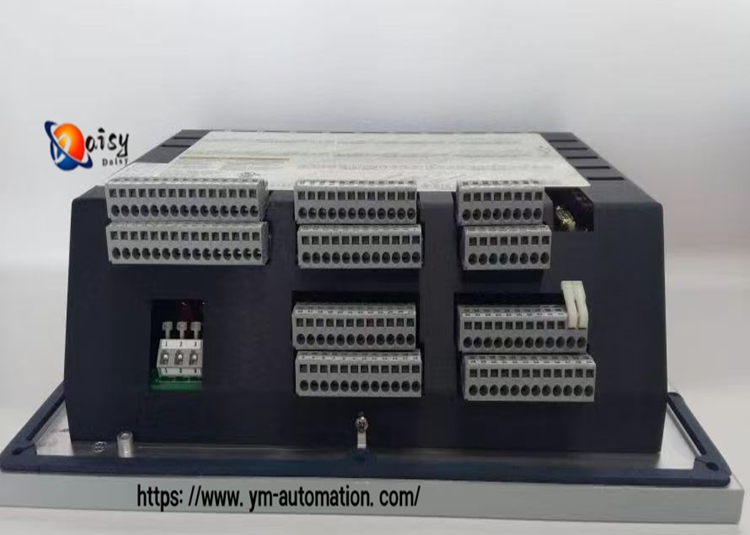

Woodward 9907-163 is a digital turbine controller belonging to the Woodward 505 series. Its specific parameters are as follows:
- Dimensions: 35.56cm × 27.94cm × 10.16cm (14in × 11in × 4in)
- Weight: Approximately 4.38kg (9lb 11oz)
- Input Voltage: 18-32VDC
- Input Types: 6 programmable current inputs, 16 discrete contact inputs
- Display Type: 24-character LED
- Enclosure Type: NEMA 4X
- Operating Temperature: Passed Lloyd’s Env3 type dry heat test
- Slot Type: RS-232C/RS-422 serial port
- Software Version: Op View™ and 505 View
- Storage Temperature: For extended service life, it is recommended to store near room temperature and limit the range of thermal cycles
