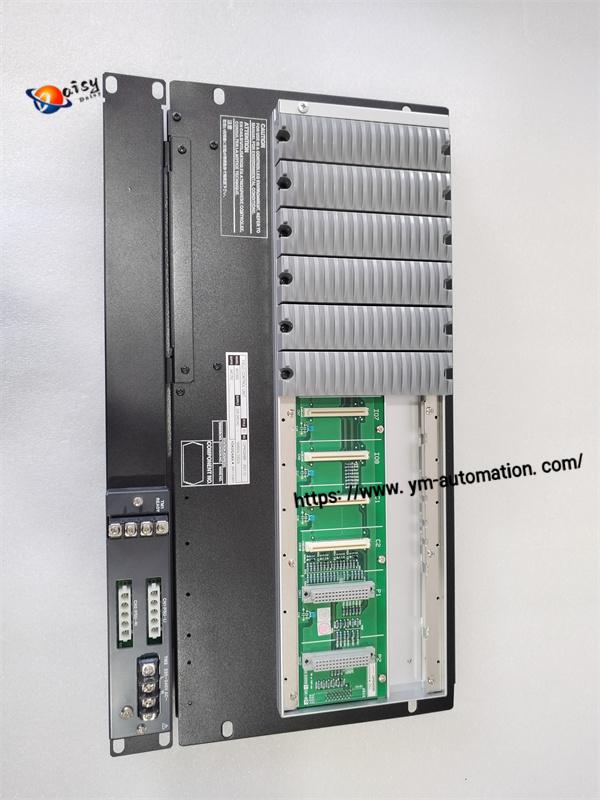

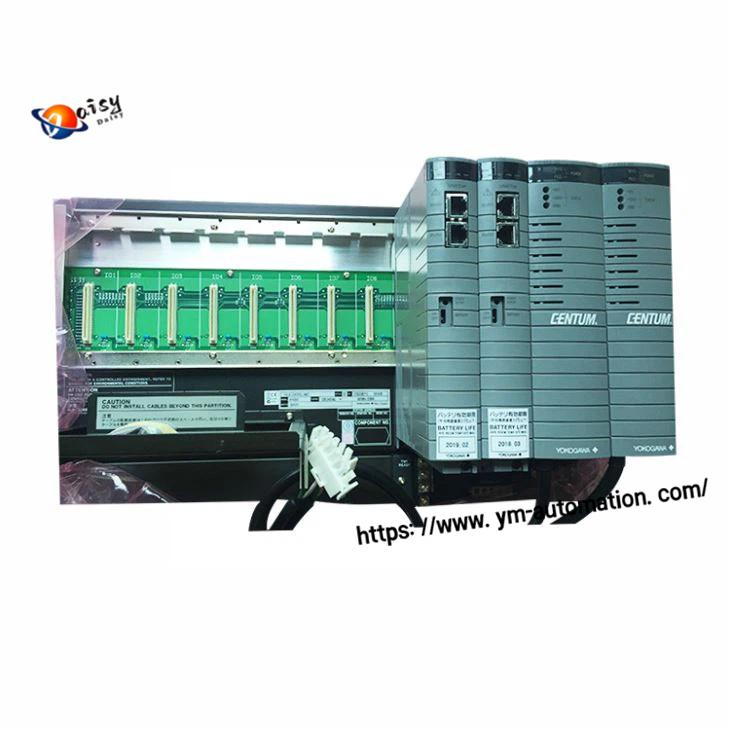

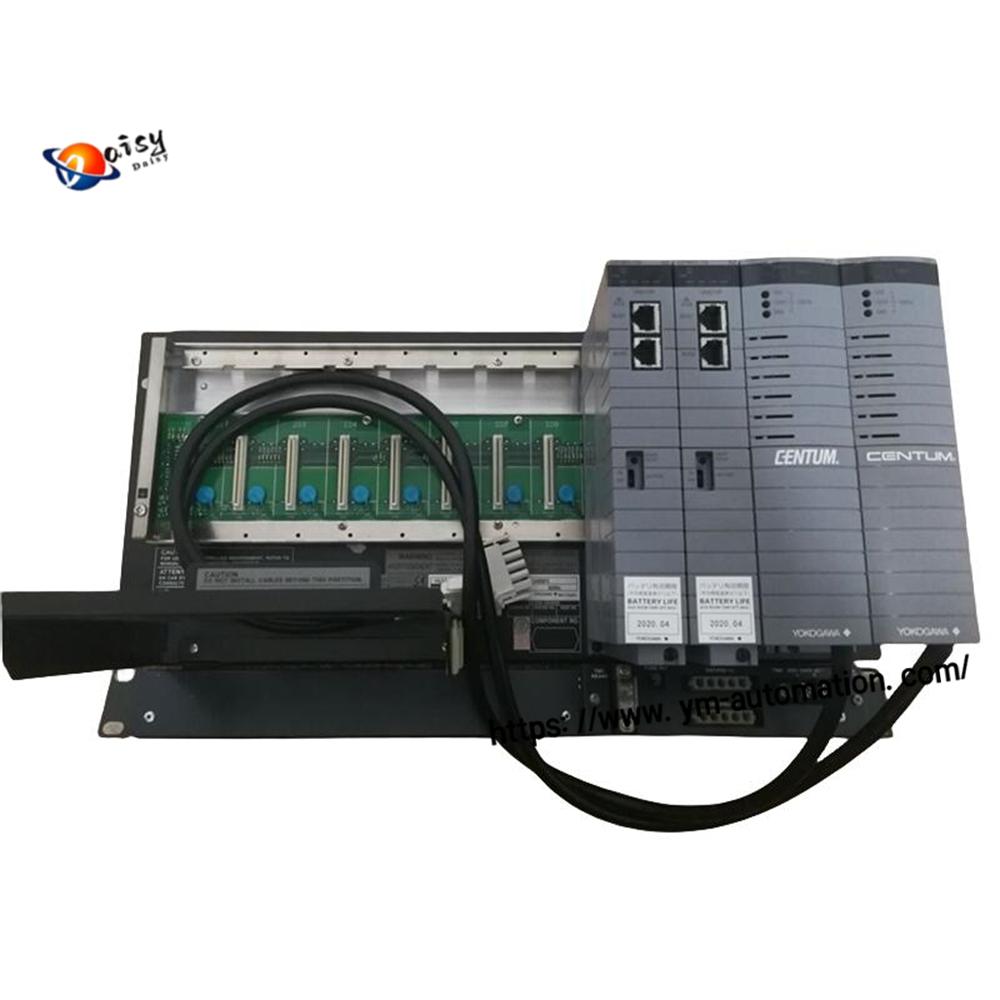

AFV30D-A41252 Field Control Unit – Technical Specifications & Application Solutions
Product Overview
The AFV30D-A41252 is a high-precision field control unit specifically designed for industrial automation scenarios. It integrates advanced signal processing and control algorithms to provide reliable local control, data acquisition, and remote communication functions for process industries. Its modular design supports flexible configuration, adapting to complex control needs in petrochemical, power, water treatment, and other fields. It is a core device for improving on-site operational efficiency and system stability.
Core Technical Specifications
| Parameter Category | Detailed Specifications |
|---|---|
| Model Number | AFV30D-A41252 |
| Control Functions | Supports multiple algorithms including PID, fuzzy control, and cascade control; configurable with up to 16 control loops |
| Input Signals | Analog input: 8 channels of AI (4-20mA/0-10V, supports thermocouples and RTDs); 16 channels of DI (dry contact/PNP) |
| Output Signals | 8 channels of AO (4-20mA/0-10V); 16 channels of DO (relay output, 250VAC/30VDC) |
| Communication Interfaces | 2 RS-485 ports (Modbus RTU); 1 Ethernet port (Modbus TCP/IP); HART protocol supported |
| Sampling Cycle | Minimum sampling cycle of 10ms; control cycle customizable (10ms-1s) |
| Display & Operation | 3.5-inch color LCD touchscreen, supporting Chinese/English interfaces; equipped with physical operation buttons |
| Power Supply | 24VDC (18-30VDC), power consumption ≤15W |
| Operating Environment | Temperature: -20℃~+60℃; Humidity: 10%~90%RH (non-condensing); Protection Class IP65 |
| Installation Method | Wall-mounted/rail-mounted installation (compliant with DIN EN 50022 standard) |
| Dimensions (L×W×H) | 280mm×220mm×110mm |
| Certification Standards | CE, UL, ATEX (explosion-proof certification optional) |
Core Advantages
Multi-algorithm Integration: Built-in PID, fuzzy control, and other algorithms to support precise regulation of complex processes, adapting to different industrial scenarios.
High Expandability: Modular design allows flexible addition or removal of I/O modules, supporting subsequent system upgrades and function expansion.
Stable Communication: Dual communication interface design, supporting mainstream protocols such as Modbus and HART, ensuring seamless connection with PLC and DCS systems.
Harsh Environment Adaptability: IP65 protection class and wide temperature operating range enable stable operation in on-site environments with humidity, dust, and severe temperature differences.
Easy Operation: Color touchscreen with intuitive interface supports local parameter configuration and fault diagnosis, reducing operation and maintenance costs.
Typical Application Scenarios
Petrochemical Industry: Reactor temperature and pressure control, pipeline flow regulation and monitoring.
Power Industry: Boiler water level and steam pressure control, generator set auxiliary system regulation.
Water Treatment: Water quality pH and turbidity monitoring, chemical dosing control, and sewage treatment process automation.
Smart Manufacturing: Production line material ratio control, equipment status monitoring and early warning.
New Energy: Photovoltaic inverter power regulation, energy storage system charging and discharging control.
Why Choose the AFV30D-A41252?
The AFV30D-A41252 field control unit takes high-precision control, stable communication, and flexible expansion as its core advantages. It has passed rigorous industrial environment certifications to ensure long-term reliable operation. Its user-friendly operation design and strong compatibility can be quickly integrated into existing automation systems, helping enterprises achieve intelligent upgrading and efficient management of production processes.
Technical Support & Services
Free technical consultation and solution design are provided.
On-site installation, commissioning, and operation training are supported.
1-year product warranty and lifelong maintenance services are offered.
For more detailed parameters or customized solutions, please contact our technical team!
