ABB PPD513A24-110110 Excitation Control Board

Brand: ABB

Model: PPD513A24-110110

Part Number: 3BHE039724R2441

Series: AC 800PEC Excitation System

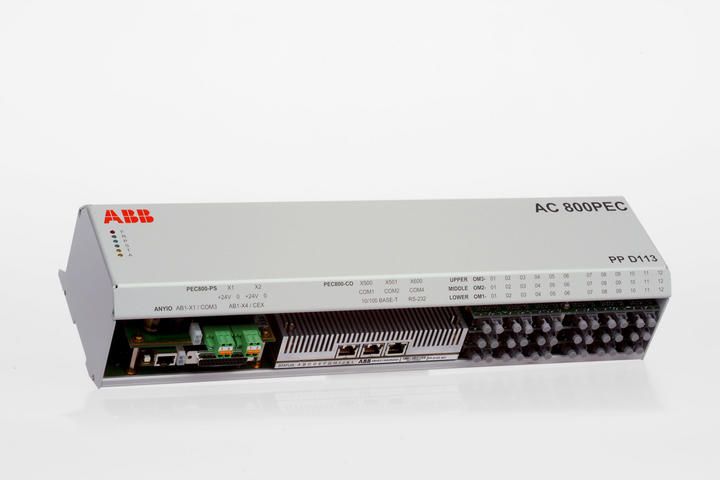

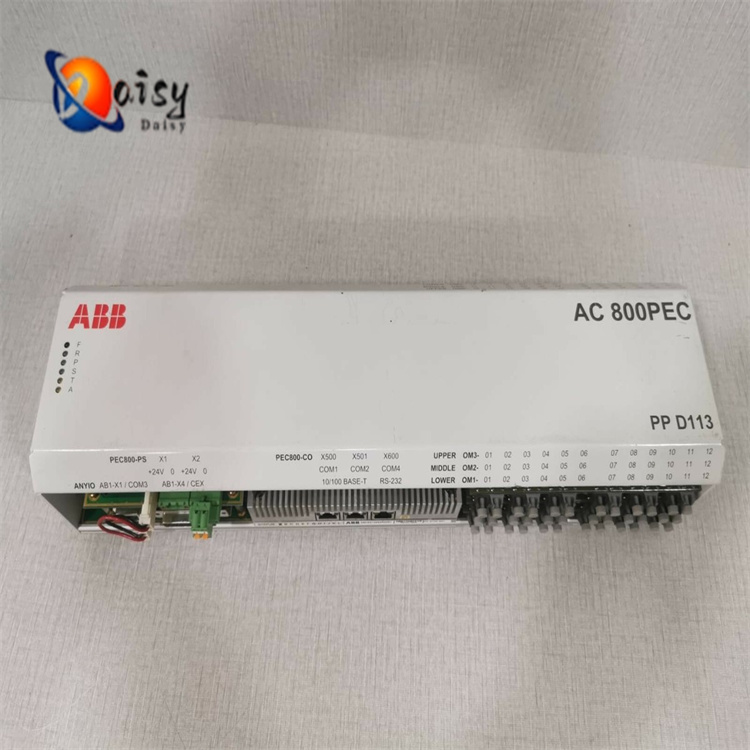

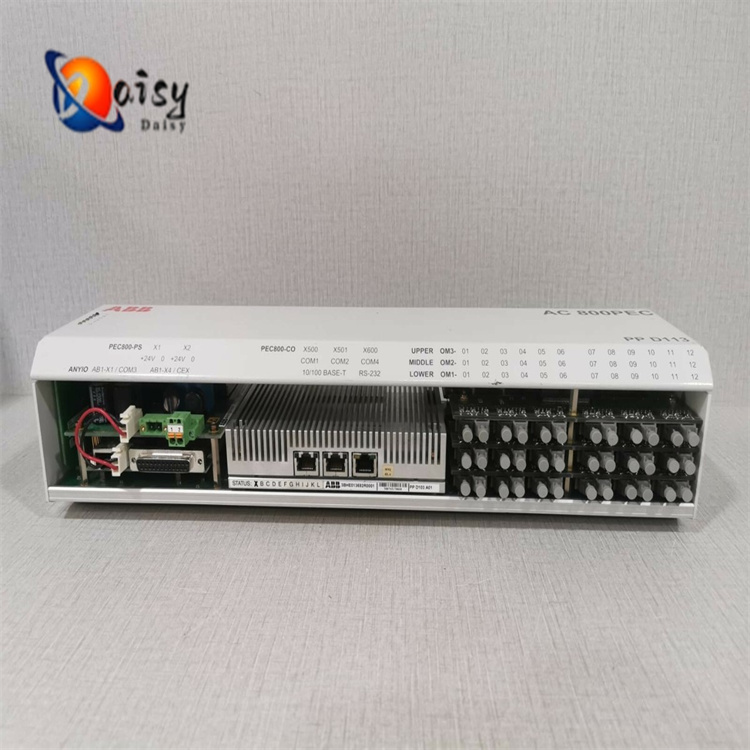

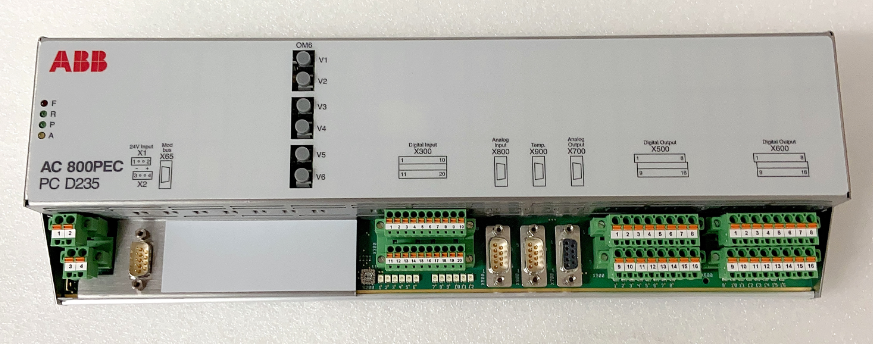

ABB AC800PEC PPD513A-23-111615 is a high-performance controller manufactured by ABB, belonging to the AC800PEC series. The relevant information is as follows:

一、（Parameter Data Sheet）

Analog Input/Output Channels: 8 channels, configurable as analog input or output.

Analog Input Signal Ranges:

Unused (default setting), 0V-10V, -10V to +10V, 0mA-20mA, 4mA-20mA,

PT100 (-50°C to +400°C, 2-wire or 3-wire; 3-wire requires 2 channels),

PT1000 (-50°C to +400°C, 2-wire or 3-wire; 3-wire requires 2 channels),

NI1000 (-50°C to +150°C, 2-wire or 3-wire; 3-wire requires 2 channels),

0V-10V (differential input, requires 2 channels),

-10V to +10V (differential input, requires 2 channels).

Resolution:

12 bits (including sign) for voltage (-10V to +10V), 12 bits for voltage (0V-10V),

12 bits for current (0mA-20mA, 4mA-20mA), 0.1°C for temperature.

LED Indicators: 10 LEDs, used for displaying signal status and error information.

Power Supply: Internal power supplied via the I/O bus interface; external power supplied via terminals ZP and UP (process voltage: 24V DC).

二、（Application Scenarios）

Power Systems: Can be used for excitation control of synchronous generators to achieve reactive power compensation and reactive power control, ensuring stable operation of generators and voltage stability of power systems. Additionally, it is applicable for protection and control of generators, transformers, and transmission lines.

Industrial Automation: Suitable for controlling industrial equipment such as robots, machine tools, packaging machinery, and textile machinery. It enables fast and accurate control, improving production efficiency and product quality.

Smart Buildings: Provides stable power supply and supports remote monitoring and intelligent control (e.g., thermostats, lighting controllers) to realize intelligent management of buildings.

LED Lighting Systems: Used for precise control of the brightness and color temperature of LED lamps, meeting various lighting needs such as commercial lighting, industrial lighting, and outdoor lighting.

三、（Operating Principle）

Control Algorithms: The AC800PEC features extremely fast control algorithms with a cycle time as low as 100μs, capable of handling high-speed algorithms for power electronics and other process applications. It adopts the IEC61131-3 language for system engineering design, and can be programmed using ABB Control Builder (Compact or Professional Edition). It also supports model-based product and control development using MATLAB®/Simulink®.

Hardware Architecture: Combines the floating-point computing performance of a CPU with the flexibility and high-speed capability of an FPGA. It realizes fast communication and input/output via optical links, featuring strong processing capability and high communication speed.

Working Process: The AC800PEC receives signals (e.g., voltage, current, temperature) from sensors through analog input channels, processes and calculates these signals according to preset control algorithms, and then sends control signals via analog output channels or digital output channels to control the actions of actuators. This enables precise control of the system. Meanwhile, it can exchange data and communicate with other devices via communication interfaces to achieve system integration and remote monitoring.

ABB PPD513A24-110110 is a high-performance excitation control board designed for generator excitation, power regulation and industrial automation. It delivers fast response, high precision and stable operation to ensure reliable power system control.

Applications

Generator excitation control

Power plant automation

Industrial power regulation

Electric arc furnace control

Renewable energy power systems

High-speed process control

Quality & Warranty

100% new original module

Full inspection before shipping

1-year warranty

Professional technical support
