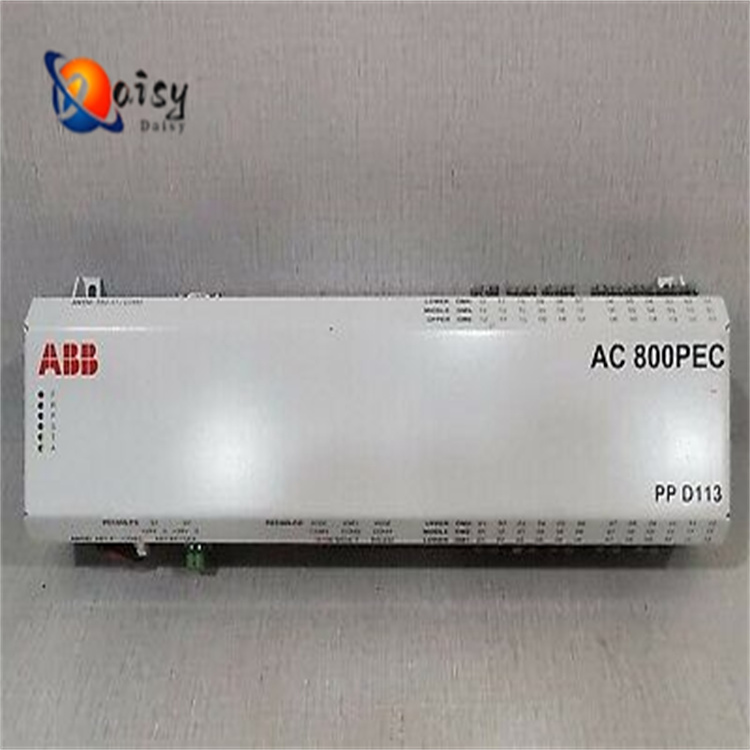

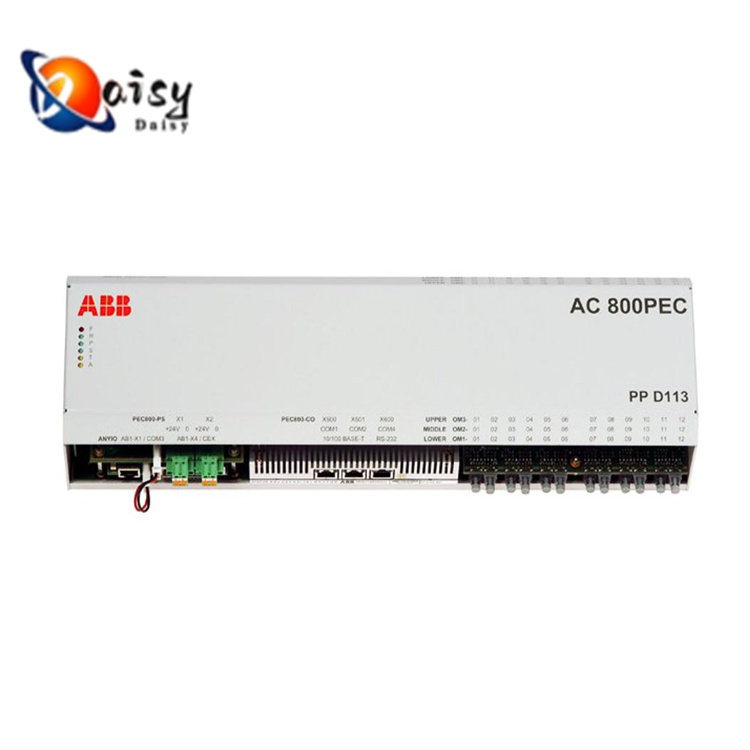

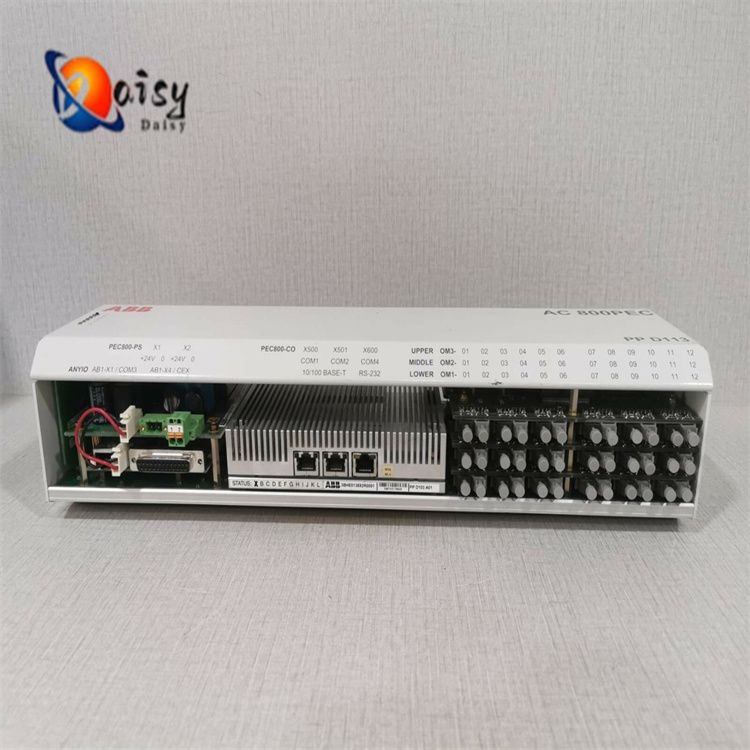

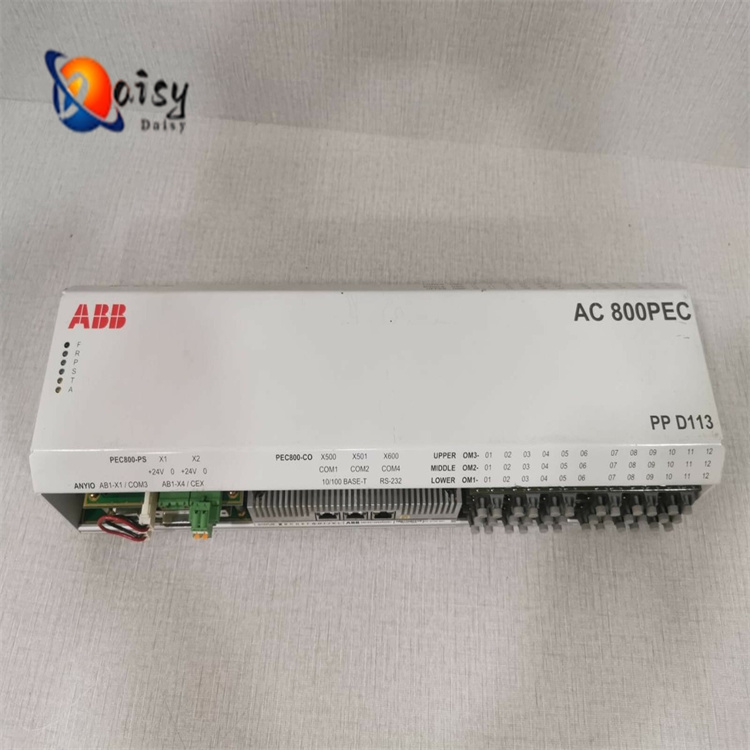

ABB AC800PECPPD513A-23-111615 controller

Description

1. Power supply voltage: DC24V (±5%)
2. Dimensions: (Width) 40mm × (Height) 110mm × (Thickness) 75mm
3. Installation method: 35mm guide rail
4. Protection level: IP20
5. Operating temperature: -20°C to +55°C, relative operating humidity: 95% (no condensation)
6. Transportation temperature: -30°C to +70°C
7. Ethernet interface: 2 RJ45 Ethernet interfaces, supporting 100BASE-TX, full-duplex communication, with MDI/MDIX self-detection
8. PROFINET features: Integrated Ethernet switch for easily forming a daisy chain of PROFINET devices; conforming to the C class standard of PROFINET, supporting PROFINET version 2.3
9. Data limit: The total input and output data of all slots/sub-slots shall not exceed 2880 bytes
10. Communication interface: 3-channel fully isolated MODBUS interface, supporting the MODBUS/RTU protocol, and the function codes 01H, 02H, 03H, 04H, 05H, 06H, 0FH, 10H
11. Baud rate: Options include 300, 600, 1200, 2400, 4800, 9600, 19.2K, 38.4K, 57.6K, 115.2K
12. Parity bit: Options include 8 bits with no parity and 1 stop bit, 8 bits with even parity and 1 stop bit, 8 bits with odd parity and 1 stop bit, 8 bits with no parity and 2 stop bits. The three-channel MODBUS can be set with different parameters.
13. Bridge control word: It can flexibly control the sending of MODBUS messages, with periodic sending (optional sending interval and waiting interval) and event-triggered sending; it can strictly control the sending of MODBUS write commands (05H, 0FH, 10H), and options include enabling/disabling write commands, enabling/disabling data change sending, etc.
14. Gateway status word: It can reflect the MODBUS communication status of the gateway and the communication status of the serial port.
