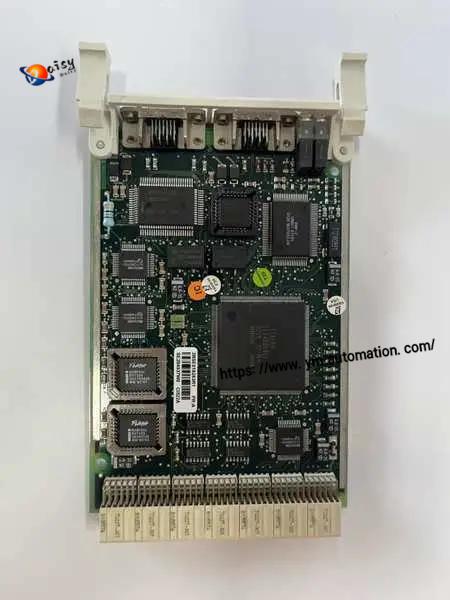

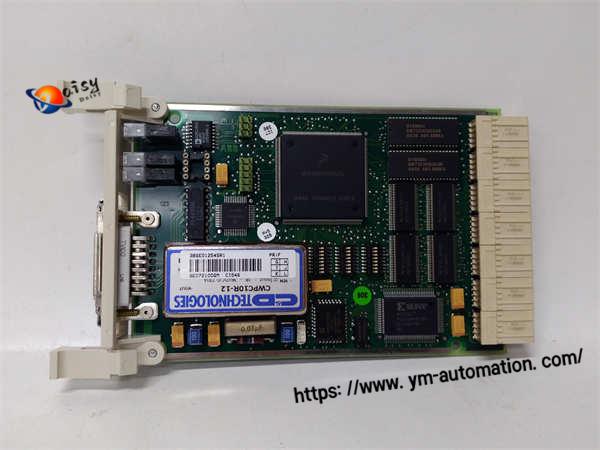

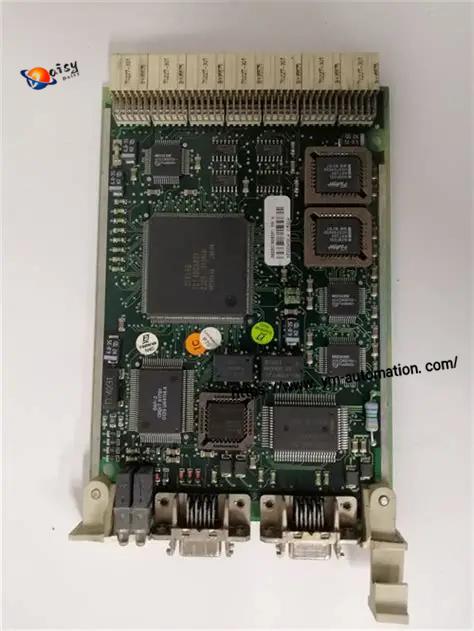

ABB CI522AK14 3BSE018460R1 AF100 Fieldbus Communication Interface Kit

ABB CI522AK14, order code 3BSE018460R1, is a complete AF100 fieldbus communication interface kit designed for ABB AC 800M, AC400 controllers and S800 remote I/O modules. The CI522AK14 kit acts as a reliable communication bridge for distributed automation systems, delivering high-speed AF100 bus data transmission between the controller and remote S800 I/O stations. This ABB CI522AK14 3BSE018460R1 communication kit supports dual redundant module configuration, hot swap operation and built-in diagnostic LEDs, widely adopted in process control, power, oil & gas and petrochemical industrial automation projects.

Technical Specifications

ABB 3BSE018460R1 CI522AK14 Included accessories are:
ABB 3BSE018283R1 CI522A
ABB 3BSE018059R1 TC512V1
ABB 3BSC950130R2 TK803V036

Key Features

• High-speed AF100 fieldbus communication with 1.5Mbps deterministic data refresh for S800 distributed I/O.
• Hot-swappable design, replace CI522A module without shutting down the whole control system.
• Bus-side galvanic isolation to reduce electrical interference in industrial field environments.
• Built-in LED diagnostic indicators to quickly check power status, running state and bus communication errors.
• Support dual redundant communication setup to improve system stability for critical process applications.
• Compact CI522A module size, easy installation inside control cabinet, DIN rail compatible.
• Fully compatible with ABB AC800M, AC400 controller and S800 remote I/O modules under 800xA platform.


Applications

ABB CI522AK14 3BSE018460R1 AF100 communication kit is widely used for distributed control systems in power plants, oil and gas, petrochemical, chemical, pulp & paper and heavy industry automation. It connects ABB AC800M controllers with remote S800 I/O stations, extending distributed I/O for large-scale process control projects.
