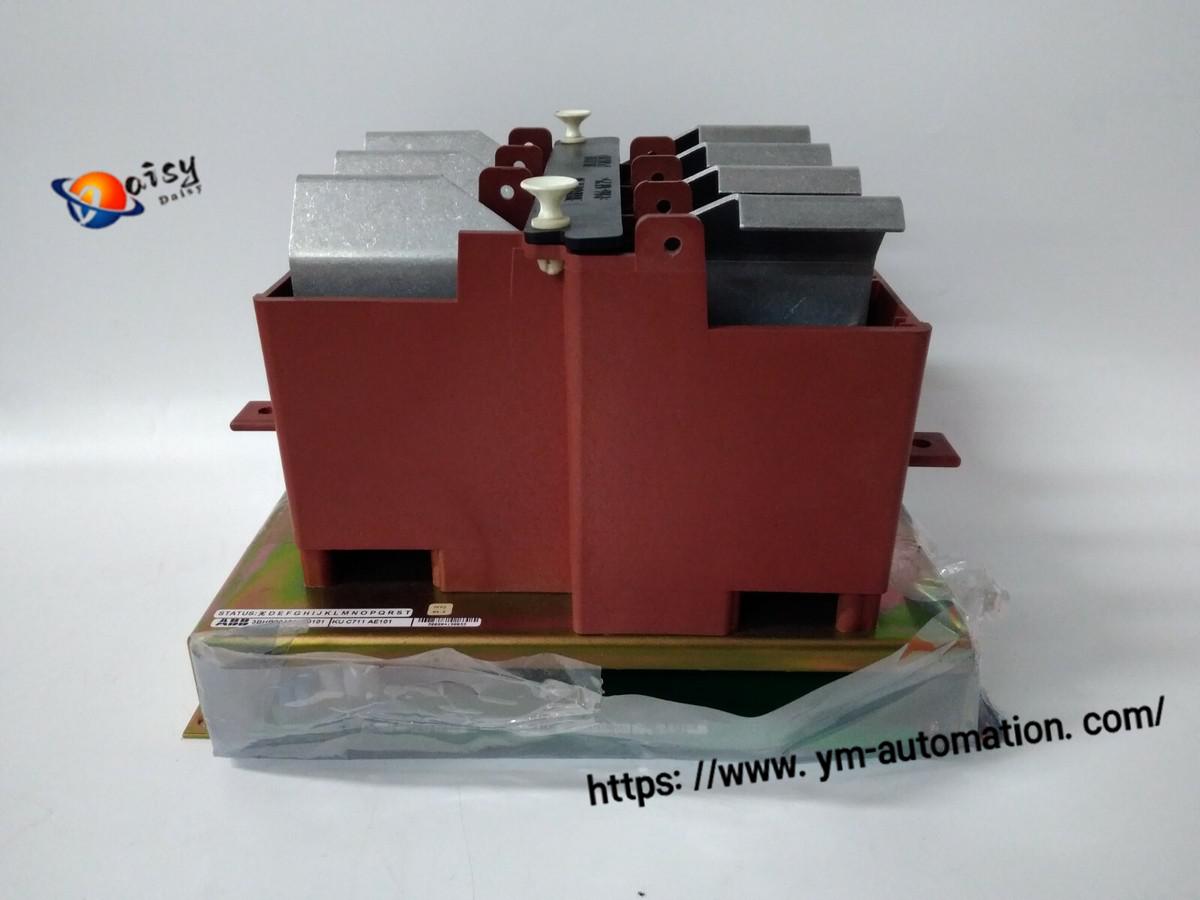

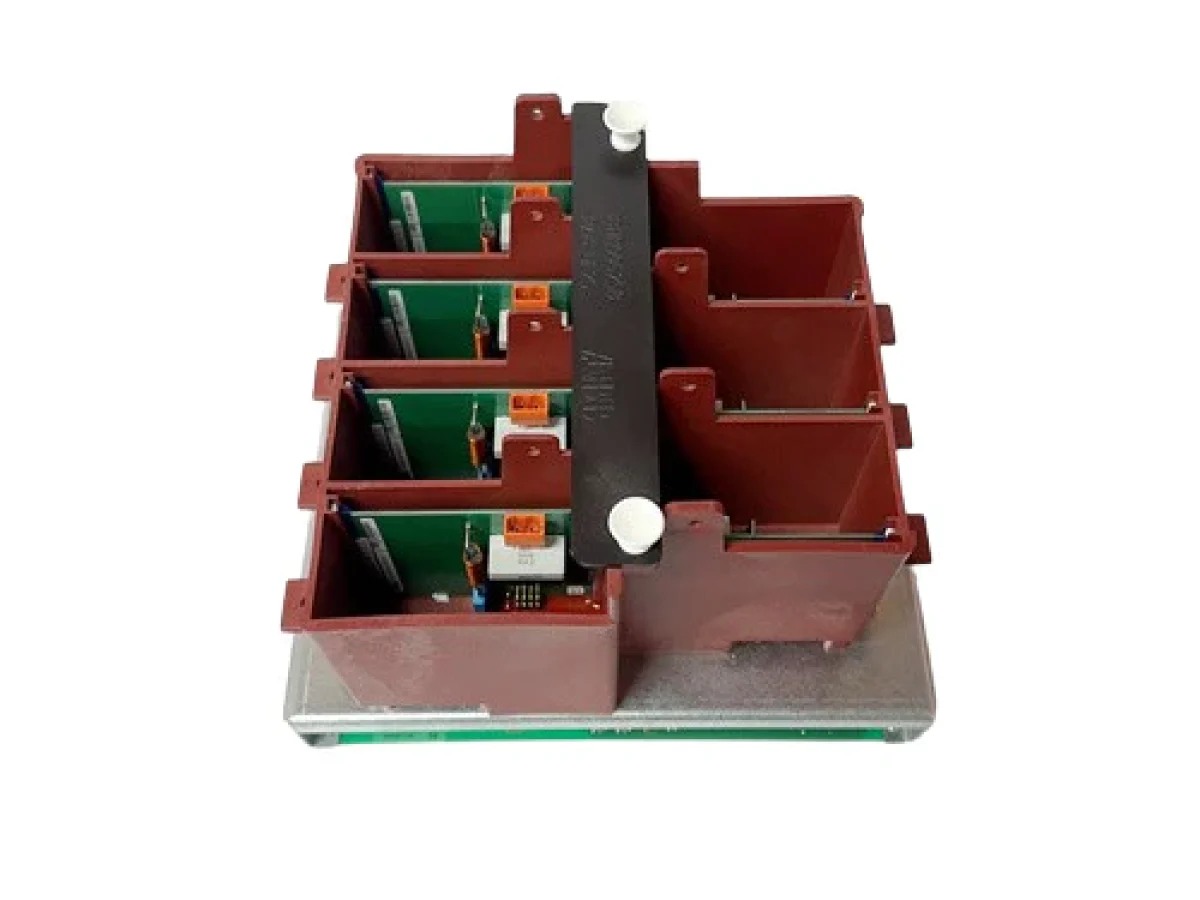

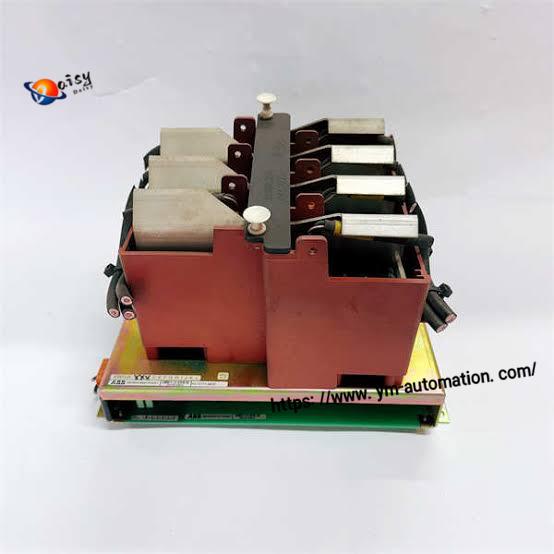

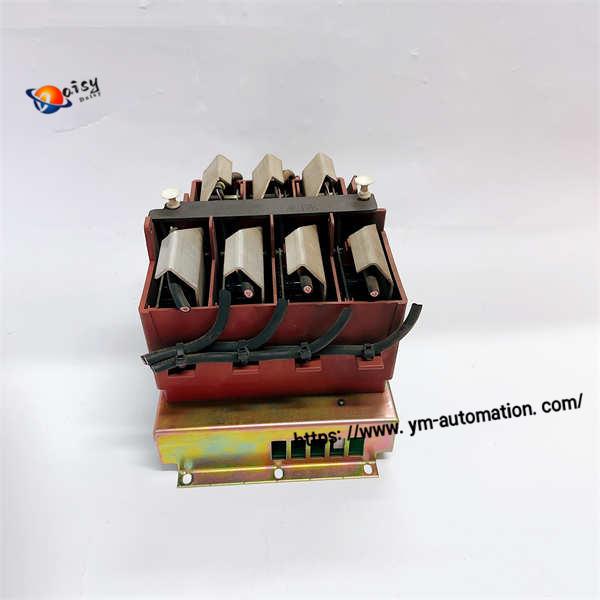

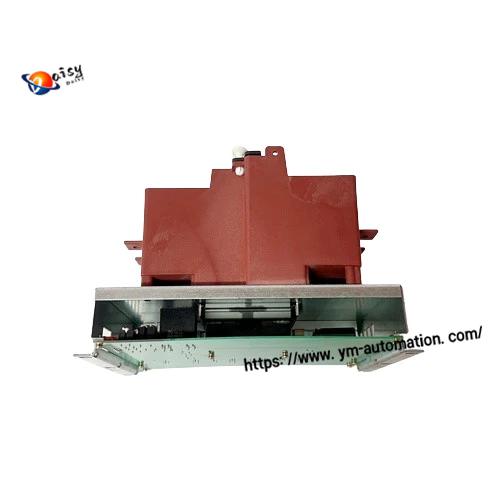

ABB KUC711AE101 3BHB004661R0101 GUSP IGCT Gate Unit Power Supply for ACS1000 MV Drive

Description

Product Introduction

Medium voltage drives such as ABB ACS1000 rely on IGCT (Integrated Gate Commutated Thyristor) power semiconductors. The gate unit power supply is the critical board that delivers isolated DC power and firing signals to each IGCT valve — when this module fails, the drive trips and the whole line (conveyor, pump, fan, mill) goes down. Original ABB new units have long lead times and the GUSP generation is now end-of-life. The KUC711AE101 (3BHB004661R0101) is the factory-original GUSP for ACS1000 IGCT stacks, supplied as fully-tested maintenance spare. It restores gate drive power and enables fast recommissioning during planned or unplanned outages, avoiding a costly full converter replacement.

3. Key Features & Benefits

Purpose-built GUSP for ABB ACS1000 IGCT stacks : Designed to power and interface with ABB IGCT gate units over fiber / isolated links -> Drop-in replacement for the original slot, no gate-unit redesign or re-tuning needed.

24 V DC isolated gate supply, high peak current capability : Delivers the pulse energy required to turn IGCTs on/off reliably at switching frequency -> Prevents under-voltage misfiring and valve-level phase failures in heavy-load start-stop cycles.

Integrated overload / over-voltage protection (auto-recovery) : Protects the GUSP itself and the connected IGCT gate from short-circuit and transient overvoltage -> Reduces secondary damage cascades when a valve fault occurs, cutting repair cost.

DIN-rail / chassis mount inside converter cabinet : Compact aluminum housing, IP20 cabinet-grade -> Fits the original ACS1000 slot layout, no mechanical modification during swap-out.

Backward-compatible within the KUC711AE / KUC755AE GUSP family : Shares form factor and electrical interface with KUC755AE105 / AE106 siblings -> Simplifies spare-parts inventory for fleets running multiple ACS1000 sizes.

4. Technical Specifications

5. Application Fields

Mining & Cement : ACS1000-driven ball mills, crushers and belt conveyors where an unexpected drive trip costs production per hour.

Oil, Gas & Petrochemical : Main crude pipeline pumps, refinery feed pumps and fan drives on medium voltage motors.

Power Generation : Boiler feed pumps, induced draft fans and cooling water pumps in thermal / combined-cycle plants.

Water & Wastewater : Large vertical turbine pumps and aeration blower drives in municipal water plants.

6. FAQ

Q: What is KUC711AE101 3BHB004661R0101 used for? A: It is the Gate Unit Power Supply (GUSP) for ABB ACS1000 medium voltage drives. It powers the IGCT gate units inside the converter valve stack.

Q: Can it replace KUC755AE105 or KUC755AE106? A: They are from the same GUSP family and share the form factor, but the exact replacement depends on your drive rating and firmware revision. We recommend confirming the nameplate before ordering.

Q: Is KUC711AE101 still produced by ABB? A: No, this GUSP generation is obsolete. Our stock is refurbished, fully pre-tested units intended for ACS1000 maintenance.

Q: What happens if the GUSP fails in service? A: The affected IGCT gate loses power, the drive triggers a valve-level fault and trips the motor. It is a high-priority critical spare for any ACS1000-driven line.

CTA

Request a quote for ABB KUC711AE101 3BHB004661R0101, or send us your drive nameplate to confirm compatibility before shipment.
