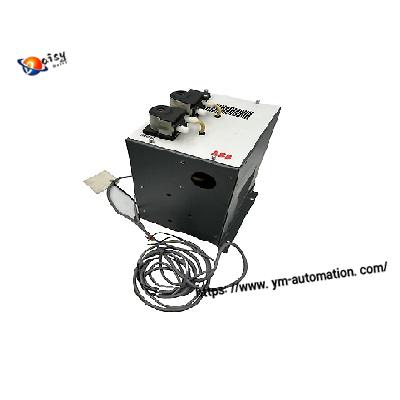

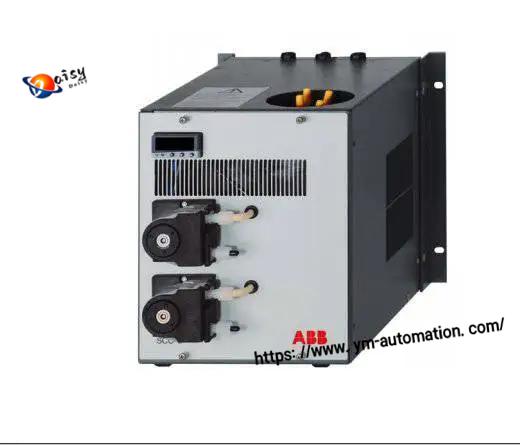

ABB SCC-C 23070-0-10114210000 Sample Gas Cooler

Product Overview

The SCC-C 23070-0-10114210000 is a factory-original ABB compressor-type sample gas cooler built for continuous flue gas analysis systems. It cools humid sample gas to a stable low dew point, eliminating internal condensation and measurement deviation in gas analyzers. Equipped with replaceable glass heat exchanger, built-in condensate peristaltic pump and digital temperature monitoring panel, this compact 1/2 19-inch rack unit delivers steady gas conditioning for industrial emission monitoring.

ABB SCC-C Gas Cooler

H2: Core Product Features

Single gas channel design, maximum gas flow rate 250 L/h

Corrosion-resistant glass heat exchanger, tool-free disassembly & replacement

Integrated peristaltic pump for automatic condensate discharge

PT100 temperature sensor + digital display with limit alarm signal

1/2 19-inch standard cabinet mounting housing, 6U compact size

Operating power: 230V 50/60Hz, CE safety certification

Max working gas pressure up to 10 bar (1 MPa)

Ambient working range: 0°C ~ 50°C, anti-electromagnetic interference layout

Constant outlet dew point to avoid water vapor cross-sensitivity errors

H2: Full Technical Specification Table

Parameter	Details
Part Number	SCC-C 23070-0-10114210000
Manufacturer	ABB Measurement & Analytics
Product Type	Compressor Sample Gas Cooler
Heat Exchanger Material	Glass
Gas Path Count	1 Path, 250 L/h Max Flow
Condensate Discharge	1 Built-in Peristaltic Pump
Temperature Monitoring	PT100 + Digital Display with Limit Signal
Input Power	230V AC, 50/60Hz
Cabinet Size	1/2 19-inch Rack, 6 Height Units
Max Gas Working Pressure	10 Bar (1 MPa)
Certification	CE Approved
Net Weight	2.3 KG
Compatible System	CEMS, Flue Gas Analyzer, Continuous Emission Monitoring

H2: Industrial Application Scenarios (Long-Tail SEO Keywords Embedded)

Thermal power plant CEMS flue gas sampling conditioning

Waste incineration exhaust emission monitoring system

Steel, cement kiln online gas analysis equipment

Petrochemical plant process gas sample pretreatment

Environmental protection air quality continuous monitoring stations

Industrial boiler flue gas detector supporting cooling unit

H2: Supply & After-Sales Service Info

Product Condition: Brand new original sealed, full factory function testing

Stock Status: Ready local stock, global shipping within 3–8 working days

Warranty: 12-month worldwide hardware quality warranty

Supporting Materials: Official datasheet, wiring diagram, installation guide

Technical Support: Free remote parameter calibration & compatibility consultation

Bulk Order Policy: Custom volume discount for environmental project procurement

Q1: What is the core function of SCC-C 23070-0-10114210000?

A1: It is a sample gas cooler that reduces sample gas dew point, separates condensate, and prevents water damage to gas analyzers in CEMS monitoring systems.

Q2: Can the heat exchanger of this ABB SCC-C model be replaced?

A2: Yes, the glass heat exchanger supports tool-free disassembly for easy maintenance and replacement on site.

Q3: What power supply matches SCC-C 23070-0-10114210000?

A3: Standard 230V AC 50/60Hz power input, matching most global industrial control cabinets.

Bottom Conversion CTA Paragraph

If you need genuine ABB SCC-C 23070-0-10114210000 sample gas cooler for CEMS equipment maintenance, project integration or spare part stocking, send your inquiry for instant stock quotation, freight plan and free technical matching service. Our industrial gas analysis team provides 24/7 online support.
