Bently 3500/94 145988-01 VGA Display Module | 3500 Machinery Protection System Spare Part

Description

Product Overview

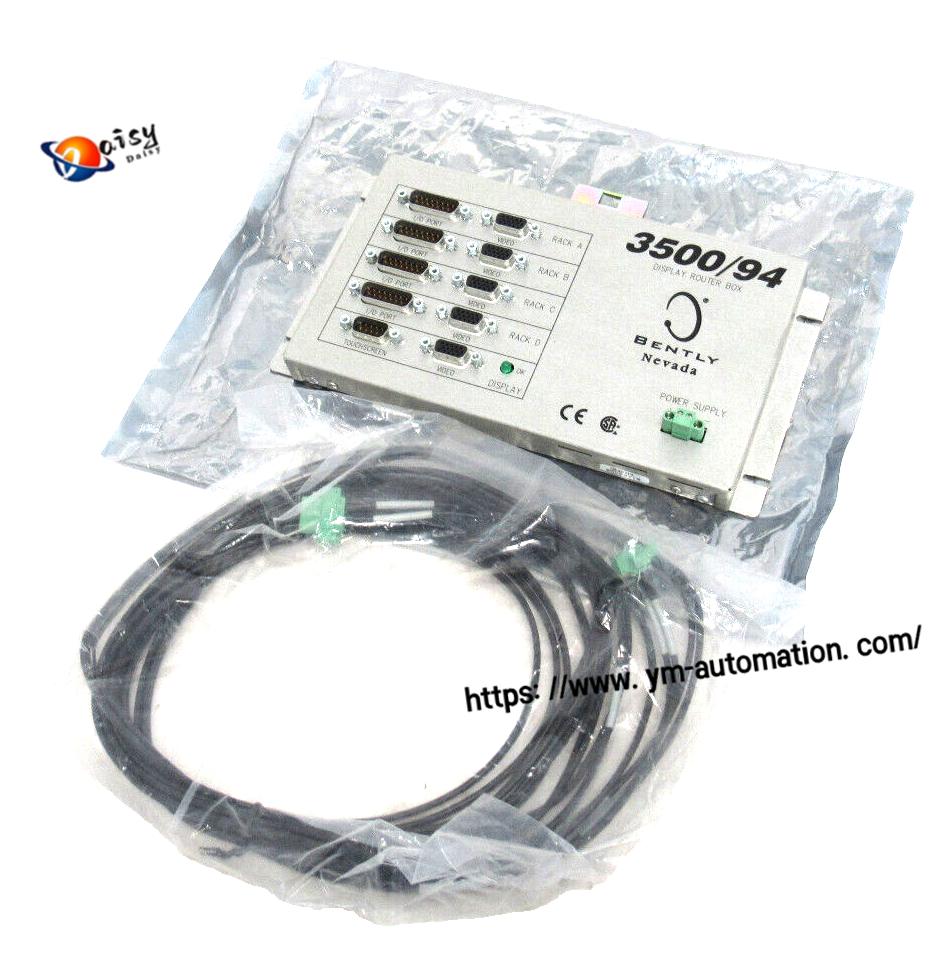

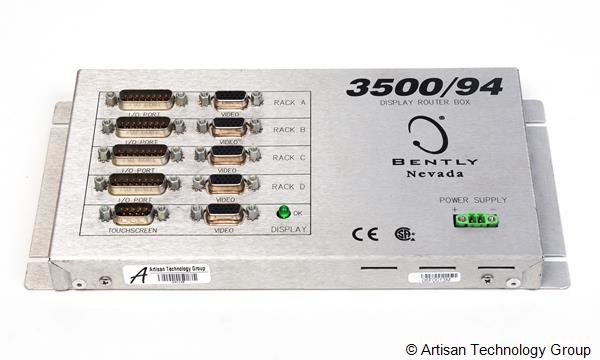

Bently Nevada 3500/94 145988-01 is a VGA touchscreen display module designed for the Bently Nevada 3500 Machinery Protection System. As a core spare part of the 3500 rack monitoring system, this 3500/94 display module provides local visual human-machine interface for operators to view real-time vibration data, system status, alarm logs and channel information of rotating machinery such as turbines, compressors and generators.

The 3500/94 145988-01 supports remote installation, and the display screen can be installed up to 8~10 meters away from the 3500 rack via standard cable. It can read data from up to four independent 3500 racks on one display. It comes with resistive touch control and 9 customizable display pages, supporting API-670 standard rack view, greatly convenient for on-site equipment commissioning and daily maintenance.

Technical Specifications

Part Number: 3500/94 145988-01

Brand: Bently Nevada (Baker Hughes)

Product Type: VGA Display Module / I/O Display Module

Series: 3500 Machinery Protection System

Power Supply: 24V DC (22.5~25.5Vdc)

Max Power Consumption: 4.6 Watts

Display: Color VGA, 640×480, resistive touch screen

Interface: 4 × VGA input, 4 × RS232 touch data port, 1 × VGA output, 1 × RS232 touch output

Operation Temperature: -40℃ ~ +85℃

Storage Temperature: -55℃ ~ +105℃

Humidity: 10%~85% RH, non-condensing

Weight: approx 0.5kg

Compatible System: Bently Nevada 3500 rack machinery protection system

Feature: Display system event list, alarm event list, module & channel data, custom screen configuration

Key Features

Real-time display of vibration, gap, 1X amplitude, alarm and system event data for rotating machinery

Touch screen operation, support 9 groups of custom display page configuration

Can monitor data from maximum four separate 3500 racks in single display unit

Compliant with API-670 machinery protection standard, 3300-style rack view available

Wide temperature range, stable performance for heavy-duty industrial environment

Separate installation design, display can be mounted remotely away from 3500 rack

Status LED indicator for module health diagnosis
