Product Overview

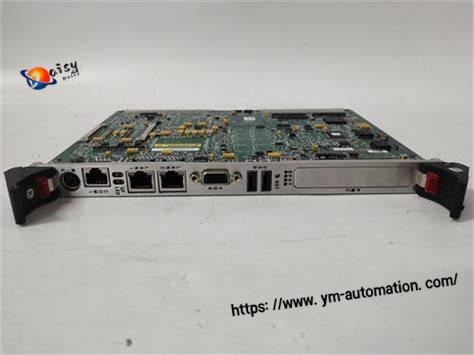

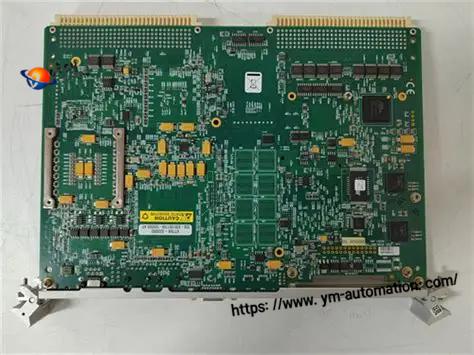

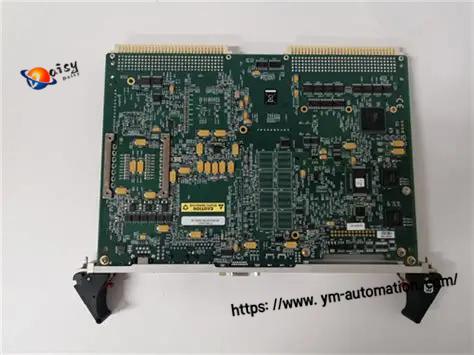

GE Fanuc V7768-320000 is a high-performance 6U VMEbus single-board computer (SBC) designed for industrial embedded control and real-time computing. Built by GE Fanuc (now part of Abaco Systems), it delivers robust processing, rich I/O, and extended environmental tolerance for mission-critical applications.
Key Features
- High-Speed Processor: Intel Core 2 Duo up to 2.16 GHz (or Celeron M 1.07 GHz)
- Large Cache & Memory: Up to 4 MB L2 cache; 2 GB DDR2 SDRAM (single SODIMM)
- Flexible Storage: Bootable CompactFlash up to 8 GB
- Dual Gigabit Ethernet: 2× RJ45 ports for high-speed networking
- Rich I/O Ports: 2× SATA, 4× USB 2.0, 2× serial, PS/2 KB/mouse, SVGA
- PMC Expansion: 1× PCI-X PMC site; supports PMC237CM1/V for extra I/O
- Industrial Ruggedness: Extended temperature, shock/vibration resistant
Technical Specifications
| Parameter | Details |
|---|---|
| Model | V7768-320000 (3509301007768-320000A0/B) |
| Manufacturer | GE Fanuc (Abaco Systems) |
| Form Factor | 6U VMEbus, dual-slot |
| Processor | Intel Core 2 Duo 2.16 GHz / Celeron M 1.07 GHz |
| Cache | 4 MB (Core 2 Duo) / 1 MB (Celeron M) |
| Memory | Up to 2 GB DDR2 SDRAM (SODIMM) |
| Storage | 8 GB CompactFlash (bootable) |
| Ethernet | Dual Gigabit Ethernet (Intel 82571) |
| I/O | 2× SATA, 4× USB 2.0, 2× RS-232, PS/2, SVGA |
| Expansion | 1× PCI-X PMC site |
| OS Support | Windows XP, VxWorks, Linux |
| Operating Temp | -20°C to +70°C |
| Power | 24 VDC ±10% |
| Dimensions | 305 × 155 × 127 mm |
| Weight | ~1.4 kg |
Applications
- Industrial automation & process control
- Aerospace & defense embedded systems
- Power generation & energy management
- Factory automation & robotics
- VMEbus-based real-time computing systems
