GE GF868-1-1NEM-21A14 | DigitalFlow Ultrasonic Gas Flow Meter

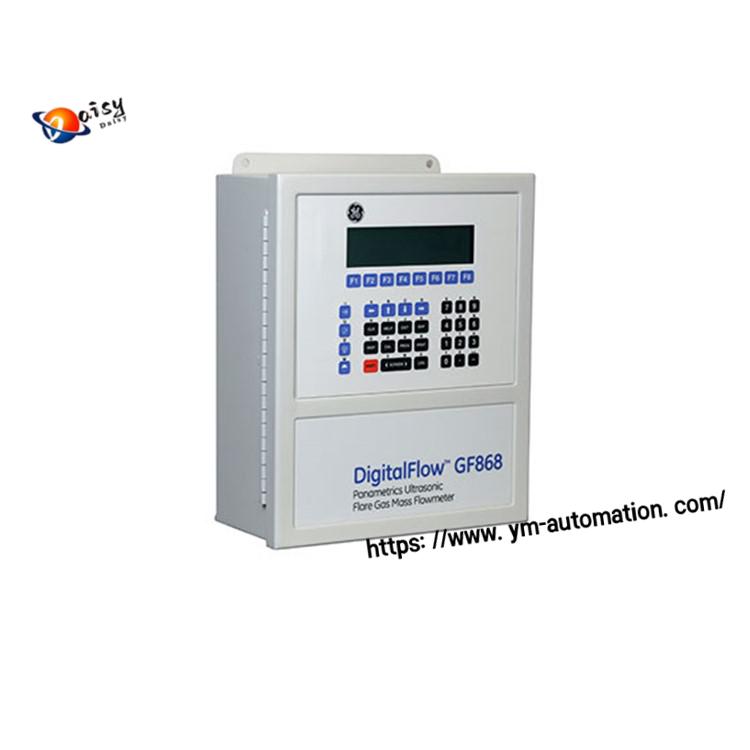

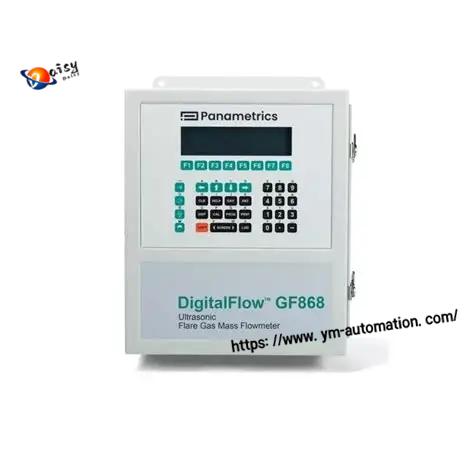

GE GF868-1-1NEM-21A14 is a high‑precision, clamp‑on ultrasonic gas flow meter from GE Panametrics (DigitalFlow™ series), engineered for non‑invasive measurement of flare gas, vent gas, and process gas in industrial environments. It offers accurate mass/volume flow, velocity, and molecular weight monitoring without pipe cutting or process shutdown.
Key Features

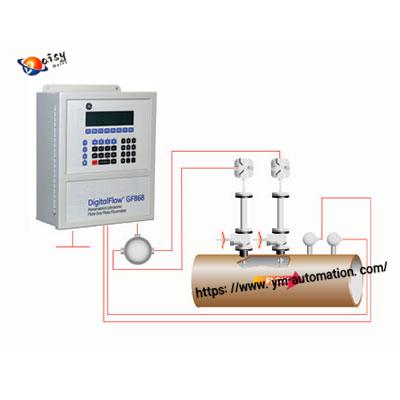

- Non‑invasive Clamp‑on Design: No pipe penetration, no pressure loss, minimal installation cost.
- Dual‑Function Measurement: Measures flow velocity, volumetric flow, mass flow, and real‑time molecular weight.
- Ultra‑Wide Flow Range: 0.03–85 m/s (0.1–275 ft/s) bidirectional; pipe sizes 50–3000 mm (2–120 in).
- No Moving Parts: Resists wear, clogging, and corrosion; zero routine maintenance.
- Harsh Environment Ready: Operating temp -40°C to +70°C; ATEX/IECEx/CE/UL certified.
- Smart I/O & Communication: 4–20 mA inputs/outputs, Modbus, HART, RS232/RS485; 43,000‑point data logging.
- Stable Performance: Immune to gas composition, pressure, and temperature fluctuations.
Specifications
| Parameter | Details |
|---|---|
| Model | GF868-1-1NEM-21A14 |
| Technology | Correlation transit‑time ultrasonic |
| Channels | 1‑channel (standard) |
| Power Supply | 100–240V AC / 24V DC (±15%) |
| Enclosure | Epoxy‑coated aluminum, IP66/Type 4X |
| Accuracy | Mass flow: ±2.4–7% (1‑path); Molecular weight: ±1.8% |
| Applications | Flare gas, vent gas, petrochemical, refinery, offshore, power plants |
Applications
- Flare Gas Monitoring: Optimize flare systems, reduce emissions, and ensure regulatory compliance.
- Process Gas Measurement: For corrosive, toxic, or high‑purity gases in chemical/pharmaceutical industries.
- Energy Management: Detect leaks, minimize product loss, and improve operational efficiency.
- HVAC & Power: Monitor combustion gas, steam, and ventilation flow in utilities.
Why Choose GE GF868-1-1NEM-21A14
As a trusted GE Panametrics solution, the GF868-1-1NEM-21A14 delivers reliable, low‑maintenance flow measurement for critical industrial processes. Its non‑invasive design and advanced ultrasonic technology reduce downtime and lifecycle costs, making it ideal for harsh and high‑demand environments.
