IS230PCAAH1B GE Core Analog I/O Module | Mark VIe Turbine Control Analog Signal Board
Original GE IS230PCAAH1B core analog I/O module for Mark VIe distributed turbine control system, multi-channel analog input & output, high precision, wide temperature range, UL CE certified, in stock with 12-month warranty.

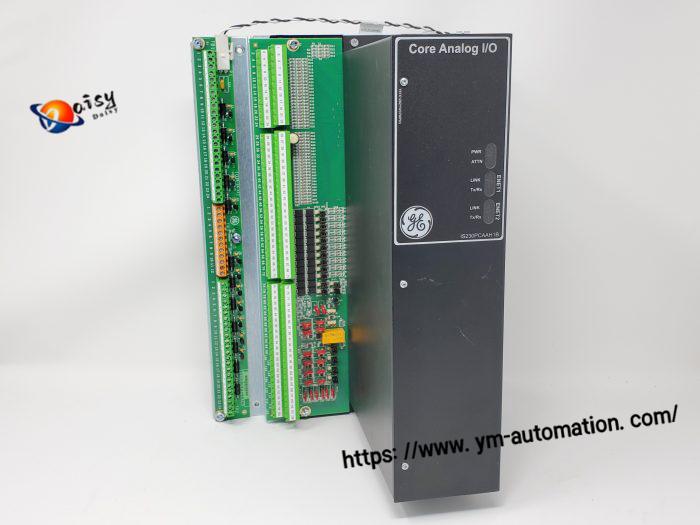

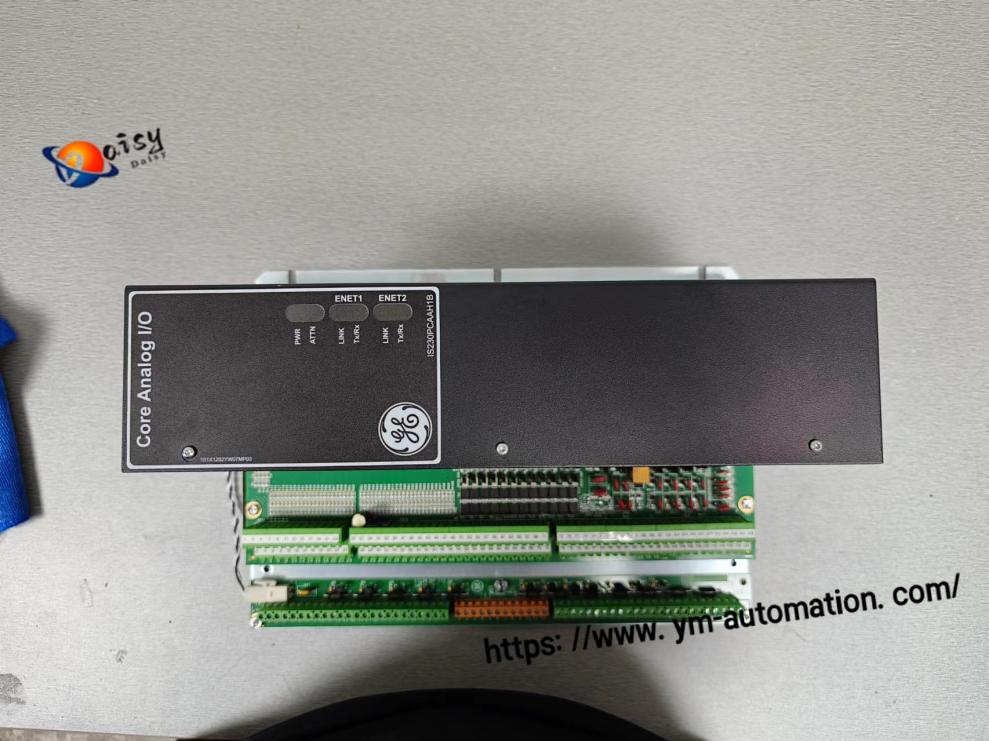

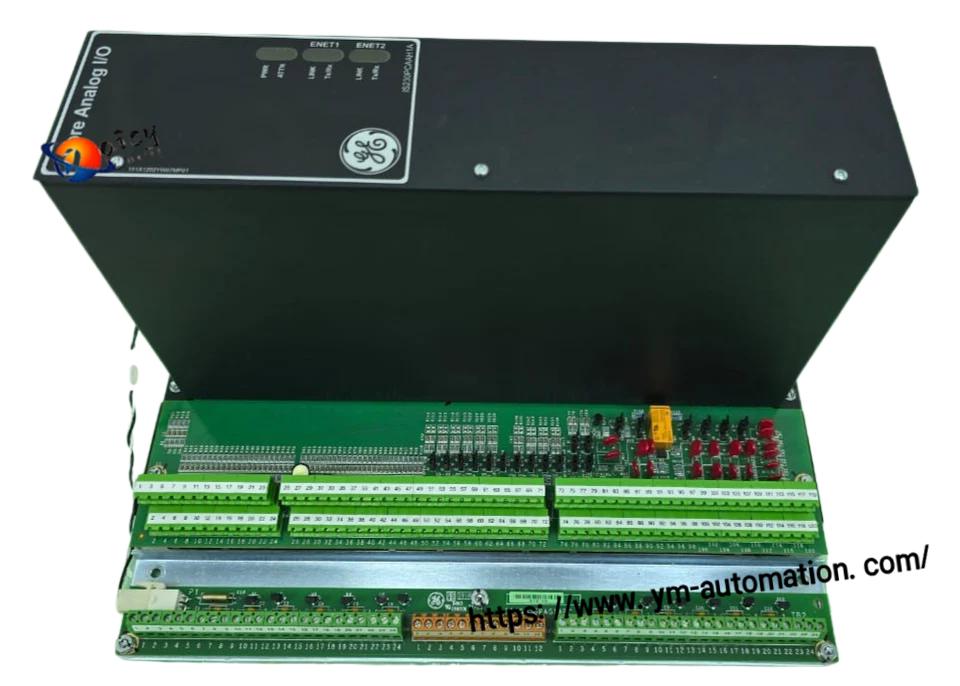

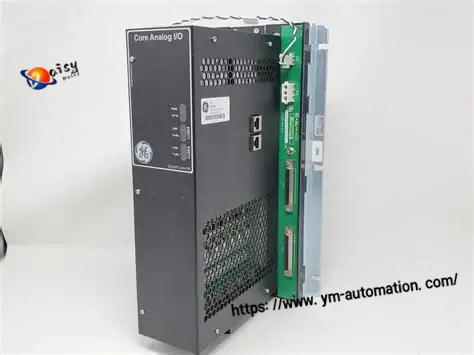

The IS230PCAAH1B is a factory-original core analog I/O module exclusively engineered for GE Mark VIe and Mark VIeS turbine control platforms. It integrates full-spectrum analog signal collection, LVDT excitation monitoring, servo coil drive and pulse signal input to realize real-time monitoring and closed-loop control of gas turbines, steam turbines and heavy industrial rotating equipment. Built with SMT circuit layout and industrial anti-interference isolation, this board delivers stable low-drift signal performance under extreme plant operating conditions.
H2: Core Key Features
- Multi-channel integrated I/O design: 25 thermocouple inputs, 4-20mA/±10V analog input, LVDT excitation output, servo drive coil port, TTL pulse input
- 16-bit AD/DA high precision conversion: ±0.5% accuracy for DC voltage signals, ±1.0% tolerance for LVDT monitoring
- Native IONet high-speed bus communication, seamless plug-and-play integration with Mark VIe controllers
- Support simplex, dual redundant and TMR triple redundant system architectures for critical power plant safety control
- Full self-diagnosis function: power-on self-test, single-channel fault detection, LED status indicator for quick troubleshooting
- Hot-swappable structure, no full-system shutdown required for module replacement & maintenance
- Wide operating temperature range: -30℃ ~ +65℃, anti-humidity design for 5%-95% non-condensing humidity environments
- Certified by UL, CSA and CE, complies with international power industry automation safety standards
H2: Complete Technical Specifications
| Item | Parameter |
|---|---|
| Model Number | IS230PCAAH1B |
| Manufacturer | General Electric (GE) |
| Applicable System | Mark VIe / Mark VIeS Turbine Control System |
| Operating Power Supply | 28VDC ±5% |
| Overall Dimension | 33.02cm (Height) × 17.8cm (Width) |
| Circuit Technology | Surface Mount SMT |
| Protection Grade | IP20 (Cabinet Mount Only) |
| Storage Temperature | -40℃ ~ +85℃ |
| Signal Accuracy | 0-10V DC: ±0.5% ; LVDT Monitor: ±1.0% ; Servo Output: ±3.5% |
| Communication Bus | IONet High-Speed Industrial Bus |
| Compatible Terminal Boards | TCAS, TCAT Core Analog Terminal Boards |
| Replacement Model | IS230PCAAH1A |
| Shipping Weight | 3 KG |
H2: Main Industrial Application Scenarios
- Gas turbine & steam turbine control systems for thermal power plants
- Combined cycle power generation unit monitoring & protection
- Oil & gas field industrial compressor and engine automation
- Heavy-duty rotating machinery vibration, seismic and temperature signal acquisition
- Process plant distributed control system analog signal expansion
- Power grid critical equipment closed-loop servo adjustment
H2: Product Supply & After-Sales Information
- Condition: Brand new original sealed, factory tested before delivery
- Stock Status: Ready stock, global shipping within 3-10 working days
- Warranty: 12-month full quality warranty covering hardware failure
- Supporting Documents: Datasheet, wiring manual, ControlST system version matching guide
- Custom Service: Bulk order discount, technical support for Mark VIe system debugging
