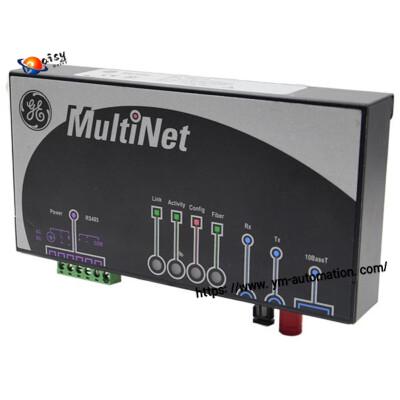

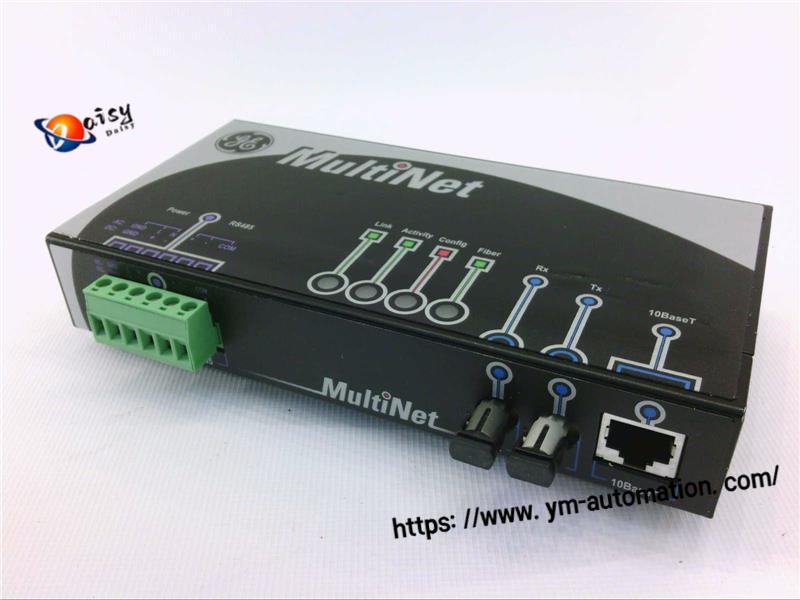

GE MultiNet-FE Modbus Gateway, RS485 Serial to Ethernet Fiber Converter
GE MultiNet-FE Modbus Gateway, RS485 Serial to Ethernet Fiber Converter - Image 2
GE MultiNet-FE Modbus Gateway, RS485 Serial to Ethernet Fiber Converter - Image 3
GE MultiNet-FE Modbus Gateway, RS485 Serial to Ethernet Fiber Converter - Image 4
GE MultiNet-FE Modbus Gateway, RS485 Serial to Ethernet Fiber Converter - Image 5

GE MultiNet-FE Modbus Gateway, RS485 Serial to Ethernet Fiber Converter

Brand:GE MultiNet-FE

Warehouse: Spot

Condition: New original inventory

Warranty: 100% Perfect Functionality

Available for sale: nationwide, overseas

Warranty period: one year

Imported or not: Yes

Shipping location: Yuanmiao, Guizhou

Category Tags , , , , , , , , ,
Contact Information

wechatPhone +8613368533614
whatsapp: +86 13368533614
Phone: +86 13368533614
Email: 3127402866@qq.com
ph connect：Daisy

Description

Product Overview

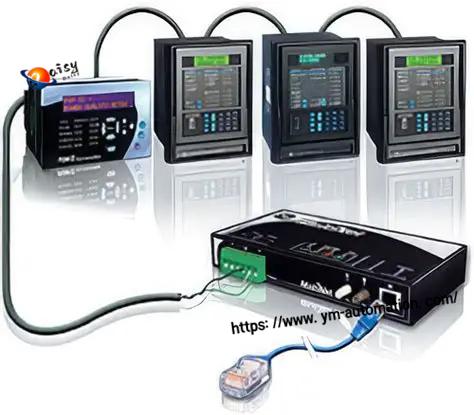

GE MultiNet-FE is an industrial hardened Modbus communication gateway developed by GE Vernova (GE Multilin). The MultiNet-FE converter translates Modbus RTU signals over RS485 to Modbus TCP/IP, connecting legacy serial Modbus IEDs, protection relays and power meters to modern Ethernet LAN/WAN networks. Equipped with dual 10BaseT copper and 10BaseF fiber ports, the MultiNet-FE delivers reliable long-distance communication with superior EMI immunity, widely deployed in power substations, utility automation and industrial SCADA systems. This GE MultiNet-FE communication module supports up to 32 RS485 Modbus slave devices and enables simultaneous access from multiple SCADA master hosts.

Key Features

GE MultiNet-FE converts Modbus RTU (RS485) to Modbus TCP/IP protocol

Integrated 10BaseT RJ45 Ethernet port + 10BaseF multi-mode fiber ST port

Supports maximum 32 serial Modbus RTU devices on one RS485 bus

Multiple SCADA masters access the same IED concurrently over Modbus TCP

Hardened industrial design for substation and harsh utility environments

Plug-and-play configuration via GE EnerVista setup software

DIN rail mounting for flexible retrofit installation

Full compatibility with GE Multilin IEDs, SR relays, PQM series power quality meters

Built-in surge and transient protection compliant with IEC and IEEE standards

Fiber optic communication eliminates electromagnetic interference and provides electrical isolation

Technical Specifications

Model: MultiNet-FE

Brand: GE Vernova (GE Multilin)

Protocol: Modbus RTU, Modbus TCP/IP

Serial Interface: Isolated RS485, 2-wire half duplex, Baud rate: 300 bps ~ 115.2 kbps

Ethernet Interface: IEEE 802.3 10BaseT (RJ45)

Fiber Port: 10BaseF, 820nm multi-mode fiber, ST connector, compatible with 50/125µm, 62.5/125µm fiber

Power Supply: 100–240 V AC 50/60Hz (20VA Max) / 90–300 V DC (5W Max)

Operating Temperature: -20°C ~ +70°C

Storage Temperature: -40°C ~ +85°C

Humidity: 0–95% non-condensing

Ingress Rating: IP40

Mounting: Standard 35mm DIN rail

Quantity of connected devices: Up to 32 RS485 Modbus devices

Typical Applications

Substation automation communication upgrade for GE Multilin protection relays

Connect legacy Modbus RTU IEDs to SCADA, HMI and remote monitoring systems

Power quality monitoring with PQM, PQMII meters

Long-distance isolated communication via fiber optics in industrial plants

Smart grid, energy management and utility automation projects

GE MultiNet-FE, MultiNet FE, GE Multilin gateway, Modbus RTU to TCP converter, RS485 serial to Ethernet, industrial communication gateway, substation Modbus converter, GE Vernova communication module, 10BaseF fiber Modbus gateway
