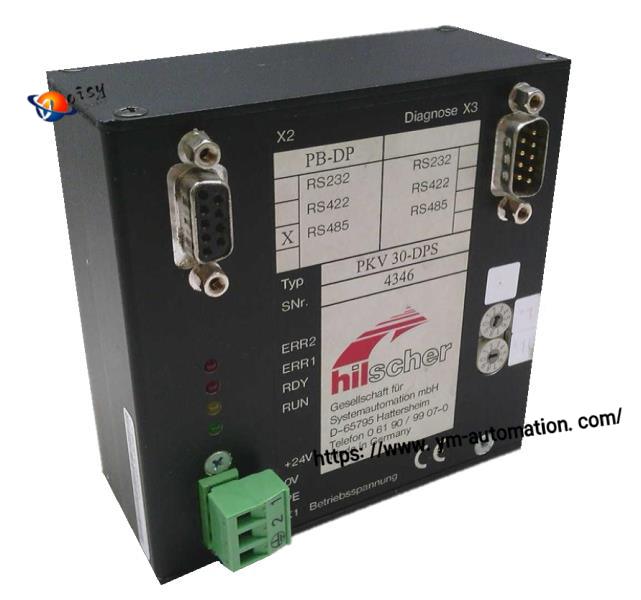

Hilscher PKV‑30‑DPS Protocol Converter | PROFIBUS‑DP Slave Gateway

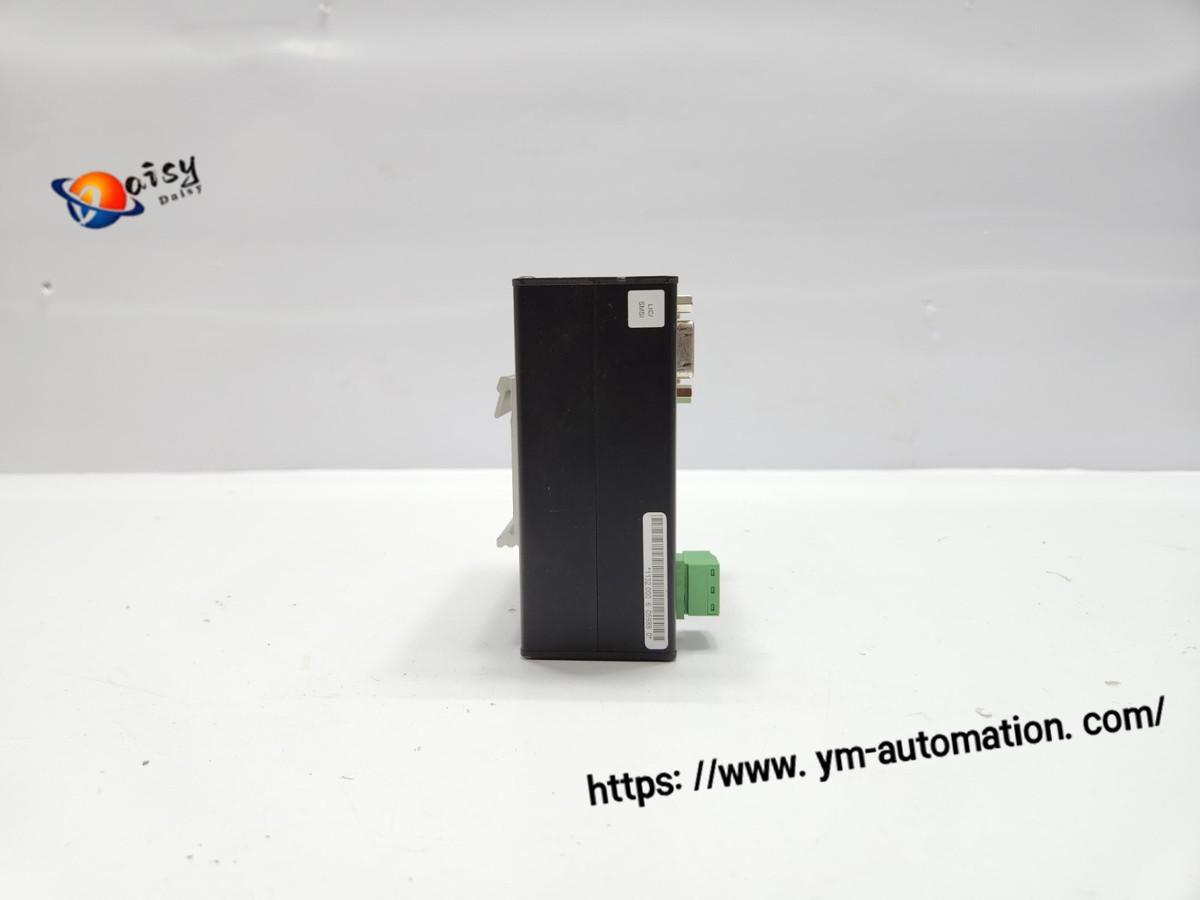

Hilscher PKV‑30‑DPS Protocol Converter | PROFIBUS‑DP Slave Gateway - Image 2
Hilscher PKV‑30‑DPS Protocol Converter | PROFIBUS‑DP Slave Gateway - Image 3
Hilscher PKV‑30‑DPS Protocol Converter | PROFIBUS‑DP Slave Gateway - Image 4

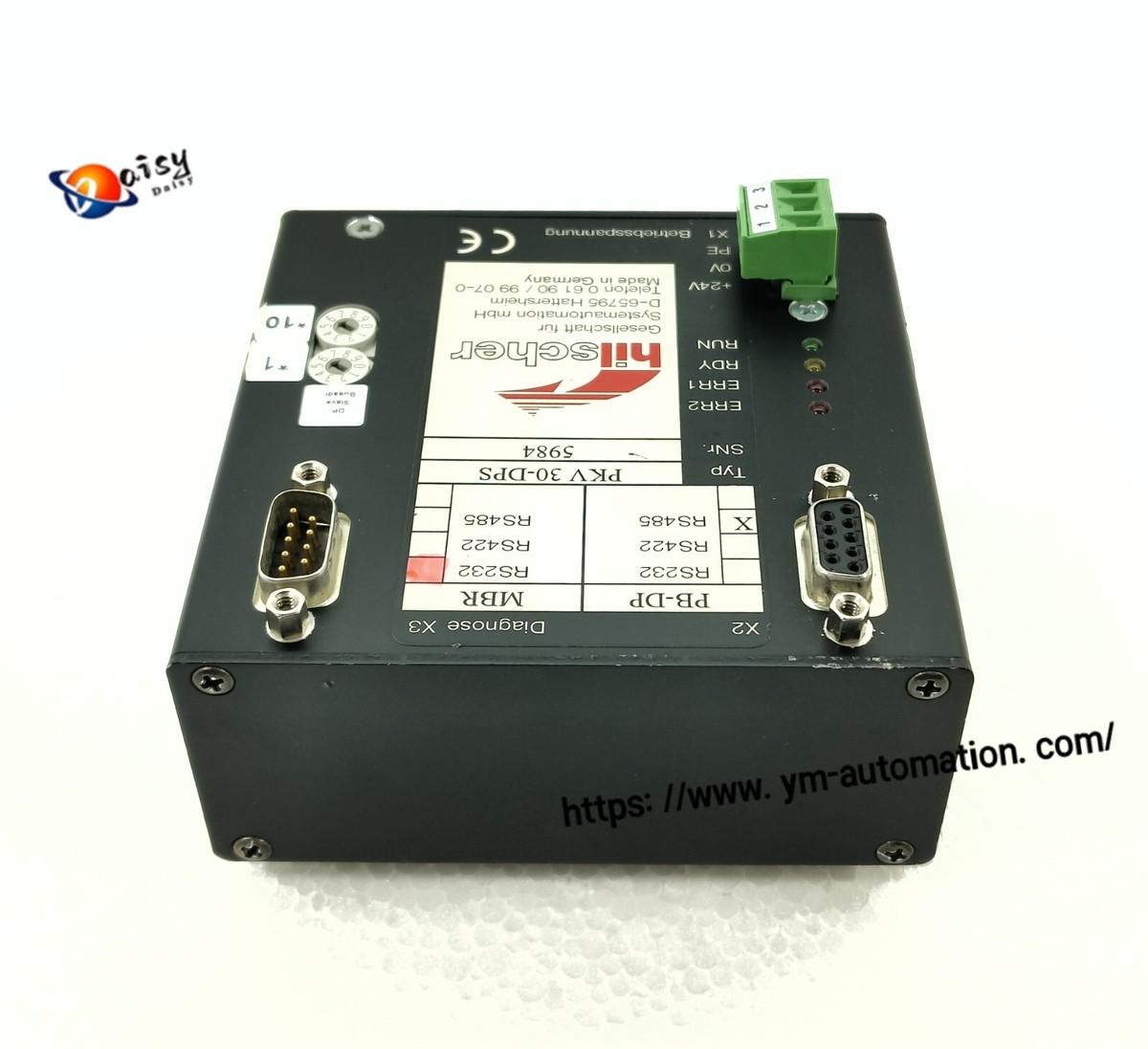

Hilscher PKV‑30‑DPS Protocol Converter | PROFIBUS‑DP Slave Gateway - Image 5

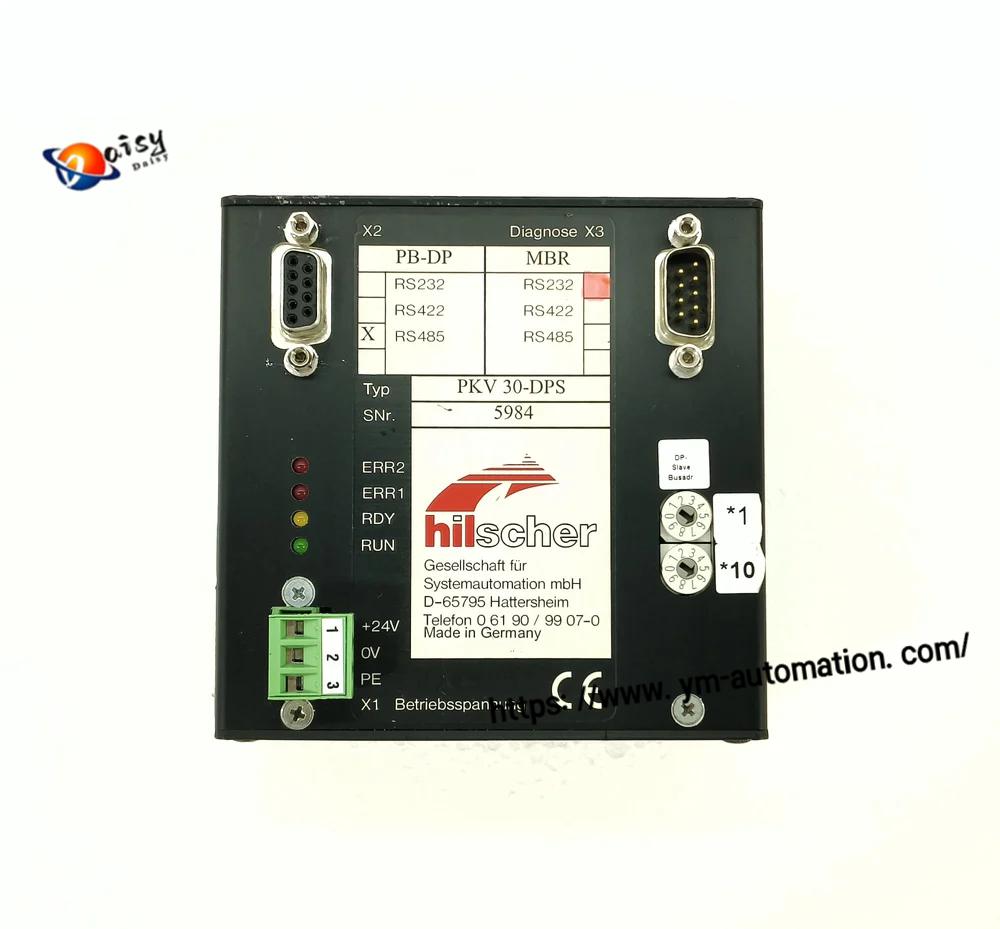

Hilscher PKV‑30‑DPS Protocol Converter | PROFIBUS‑DP Slave Gateway - Image 6
Hilscher PKV‑30‑DPS Protocol Converter | PROFIBUS‑DP Slave Gateway - Image 7

Hilscher PKV‑30‑DPS Protocol Converter | PROFIBUS‑DP Slave Gateway

Brand:Hilscher PKV‑30‑DPS

Warehouse: Spot

Condition: New original inventory

Warranty: 100% Perfect Functionality

Available for sale: nationwide, overseas

Warranty period: one year

Imported or not: Yes

Shipping location: Yuanmiao, Guizhou

Category Tags , , , , , ,
Contact Information

wechatPhone +8613368533614
whatsapp: +86 13368533614
Phone: +86 13368533614
Email: 3127402866@qq.com
ph connect：Daisy

Description

Product Overview

Hilscher PKV‑30‑DPS is an industrial protocol converter gateway. It connects RS232/RS422/RS485 serial devices to PROFIBUS‑DP fieldbus network, acting as PROFIBUS‑DP slave unit. Serial side supports Modbus‑RTU, 3964R, ASCII and other serial protocols. Configuration, firmware download and on‑line diagnosis are realized via PC tool. Robust metal housing for DIN‑rail mounting. Widely used for legacy automation retrofitting in chemical plant, power plant and manufacturing industry, solving communication conversion between serial instruments and PROFIBUS‑DP system。

Technical Specifications

Item Specification
Model PKV‑30‑DPS
Brand HILSCHER (Germany)
Product Type PROFIBUS‑DP Slave Protocol Converter Gateway
PROFIBUS Interface Galvanic isolated RS485, DP‑Slave, 9.6kBaud‑12Mbaud
Serial Interface RS232 / RS422 / RS485 non‑isolated, Baud rate 50‑19200Baud
Supported Protocols Modbus‑RTU, 3964R, ASCII, RK512
Power Supply 18‑30VDC, typical 24VDC, max 0.15A
Operating Temperature 0℃ ~ +50℃
Protection Class IP50
Mounting DIN‑rail EN50022
Dimension 105 × 105 × 80 mm
Weight 0.46kg
LED Indicator RUN, RDY, ERR, SNR status LED
Configuration Diagnosis D‑Sub port, PC tool for parameter & firmware download

Key Features

  1. Seamlessly connect serial devices to PROFIBUS‑DP network, operates as DP slave
  2. Multi‑serial‑protocol compatibility for legacy instruments, drives and serial PLC
  3. Galvanic‑isolated PROFIBUS interface against industrial EMI interference
  4. DIN‑rail snap‑in mounting, robust metal housing for cabinet installation
  5. Built‑in online diagnosis for communication troubleshooting, firmware upgrade supported
  6. OEM discontinued, serves as replacement spare part for legacy automation system

Application

Retrofit project for chemical, power, metallurgy and manufacturing industry; connect serial instruments & drives to PROFIBUS‑DP network; communication spare parts for DCS / PLC system.
