Woodward 9907-164 505 Digital Governor for Steam Turbine Controller

Description

Woodward 9907-164 505 Digital Governor

The Woodward 9907-164 is a 505 series digital governor, a microprocessor-based turbine controller built for steam turbines fitted with single or split-range actuators. Woodward 9907-164 delivers precision speed control, load control and cascade control for turbine generator sets, widely deployed in thermal power plants, CHP cogeneration, oil & gas and industrial steam systems. Woodward 9907-164 supports extraction and admission turbine control functions, capable of driving single or dual turbine actuators to regulate steam inlet valves.

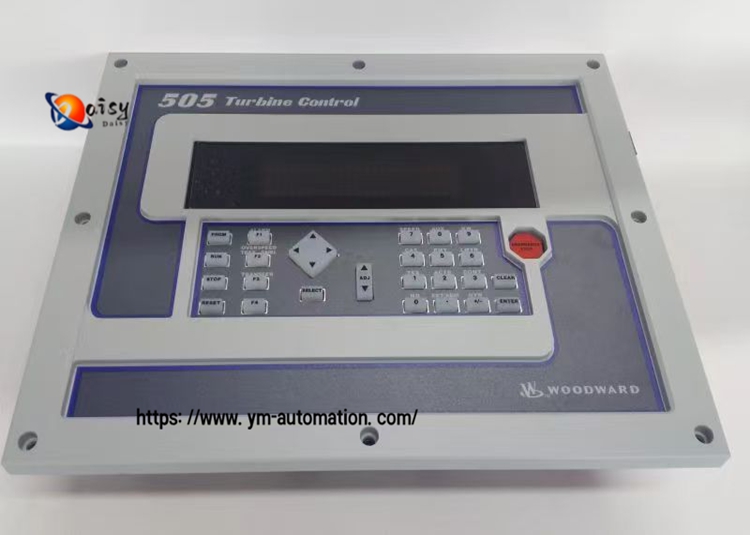

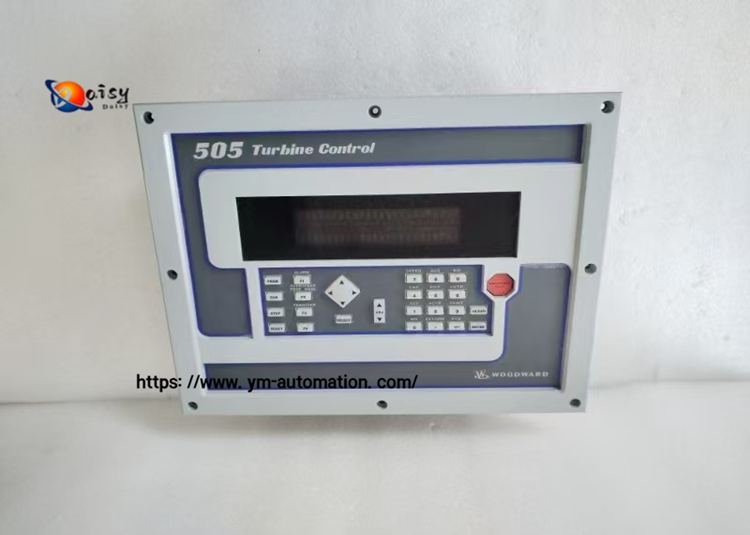

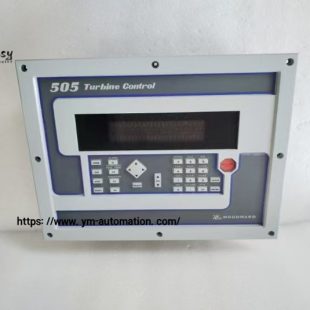

The Woodward 9907-164 505 digital governor comes with a built-in 2-line × 24 character LCD display and 30-function membrane keypad. Operators can directly configure parameters, view real-time operating data, check fault alarms and perform turbine startup/shutdown locally on the unit. Woodward 9907-164 integrates RS-232 communication port, compatible with Woodward 505View configuration software for remote setup, data logging and system diagnostics. It includes built-in critical speed avoidance, valve limiter, overspeed protection logic and self-diagnostic functions to improve turbine safety during operation.

Key Features of Woodward 9907-164

Model: Woodward 9907-164, 505 Digital Governor for Steam Turbine

For single or split-range actuator steam turbines, extraction & admission control support

Multi control modes: speed control, load control, cascade control, isochronous mode

Onboard 2-line × 24 character LCD display + 30 multi-function keypad

RS-232 communication interface, works with 505View software for configuration & monitoring

Built-in critical speed avoidance, valve position limiter, overspeed protection

Integrated self-diagnosis & event logging for fault troubleshooting

Panel mount design, front panel IP56 protection rating

Rugged industrial design, stable performance in power plant environments

Support field parameter modification without extra programming device

Technical Specifications

Application Scenarios

Steam turbine generator sets in thermal power station

CHP combined heat and power plant

Industrial steam turbine system

Oil & gas industry turbine & compressor control

Turboexpander control

Power plant turbine automation retrofit project

Package & Warranty

Package: Anti-static foam + heavy export carton

Condition: New / Refurbished available

Warranty: 12 months warranty

Delivery: Fast worldwide shipping
