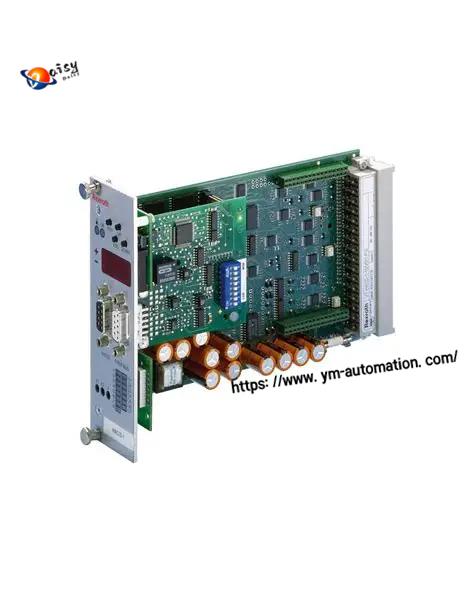

Bosch Rexroth VT-VPCD-1-1X/V0/1-0-1 – Digital Pump Controller Amplifier Card
Bosch Rexroth VT-VPCD-1-1X/V0/1-0-1 is a digital closed-loop control amplifier designed for A4VS axial piston pumps with HS4 control and A2V pumps with EO4 control. It delivers electrohydraulic pressure and swivel angle control, plus power limitation for variable displacement pumps in industrial hydraulic systems.
Key Features
- Dual Control Loops: Closed-loop control for pressure and swivel angle (HS4/EO4 pumps).
- Digital Precision: 2 ms scan rate, PWM current-regulated output stage for proportional valves.
- Integrated Diagnostics: Status LEDs, collective fault output, and RS232 (DB9) for BODAC configuration.
- Flexible Setup: Digital inputs for preset parameters; ramp time adjustment for pressure/angle signals.
- Industrial Durability: Euro-card format (100×160 mm), 24 VDC supply, and -10%/+40% voltage tolerance.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | VT-VPCD-1-1X/V0/1-0-1 |
| Brand | Bosch Rexroth (Indramat) |
| Function | Digital controller for A4VS (HS4) / A2V (EO4) pumps |
| Control Modes | Pressure control, swivel angle control, power limiting |
| Supply Voltage | 24 VDC (19.2–33.6 VDC range) |
| Current Consumption | 3.5 A max |
| Output Stage | Clocked, current-regulated (PWM), solenoid resistance 2 Ω @20°C |
| Communication | RS232 (9-pin D-sub), BODAC PC software compatible |
| Scan Rate | 2 ms |
| Operating Temp | 0°C to +50°C |
| Dimensions | 100 mm (W) × 160 mm (L) × 20 mm (D) |
| Weight | 0.2 kg |
| Protection | Overcurrent, short-circuit, fault monitoring |
| Mounting | Euro-card slot (standard industrial rack) |
Applications
- Hydraulic Presses: Precision pressure/flow control for metal forming.
- Plastic Injection Molding: A4VS pump control for high-pressure injection.
- Marine & Offshore: Winch, crane, and propulsion hydraulic systems.
- Construction Machinery: Excavator, loader, and crane pump control.
- Process Industry: Steel, paper, and chemical hydraulic power units (HPUs).
Why Choose VT-VPCD-1-1X/V0/1-0-1
The Rexroth VT-VPCD-1-1X/V0/1-0-1 ensures stable, efficient hydraulic pump control with high accuracy and reliability. Its digital closed-loop design reduces energy waste, while BODAC software enables easy parameterization and diagnostics—ideal for critical industrial hydraulic applications.
