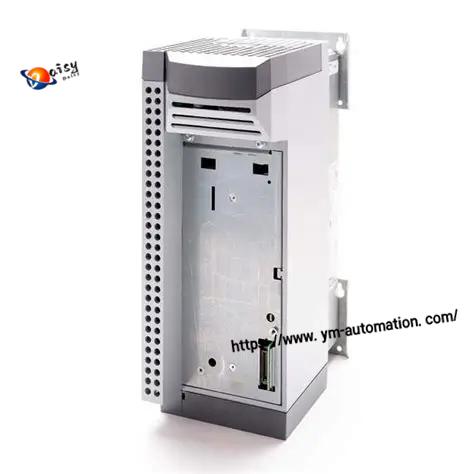

Parker 710‑4D0004‑BE‑0S‑0000 AC Drive | AC70 Series 4.0kW Variable Frequency Drive Stack Unit
Parker 710‑4D0004‑BE‑0S‑0000 AC Drive | AC70 Series 4.0kW Variable Frequency Drive Stack Unit - Image 2
Parker 710‑4D0004‑BE‑0S‑0000 AC Drive | AC70 Series 4.0kW Variable Frequency Drive Stack Unit - Image 3
Parker 710‑4D0004‑BE‑0S‑0000 AC Drive | AC70 Series 4.0kW Variable Frequency Drive Stack Unit - Image 4
Parker 710‑4D0004‑BE‑0S‑0000 AC Drive | AC70 Series 4.0kW Variable Frequency Drive Stack Unit - Image 5
Parker 710‑4D0004‑BE‑0S‑0000 AC Drive | AC70 Series 4.0kW Variable Frequency Drive Stack Unit - Image 6

Parker 710‑4D0004‑BE‑0S‑0000 AC Drive | AC70 Series 4.0kW Variable Frequency Drive Stack Unit

Brand: Parker   710‑4D0004‑BE‑0S‑0000

Warehouse: Spot

Condition: New original inventory

Warranty: 100% Perfect Functionality

Available for sale: nationwide, overseas

Warranty period: one year

Imported or not: Yes

Shipping location: Yuanmiao, Guizhou

Category Tags , , , , , ,
Contact Information

wechatPhone +8613368533614
whatsapp: +86 13368533614
Phone: +86 13368533614
Email: 3127402866@qq.com
ph connect：Daisy

Description

Product Overview

Parker 710‑4D0004‑BE‑0S‑0000 is an AC variable frequency drive power stack unit from Parker AC70 series, Frame D size, without keypad panel. It accepts three‑phase 380‑480V AC input, provides V/F and open‑loop vector motor control for fans, pumps, conveyors and general‑purpose industrial machinery. Designed for cabinet installation with built‑in comprehensive fault protection functions. This drive is OEM obsolete. Available stock includes new surplus and fully tested refurbished spare parts for legacy industrial drive system maintenance and replacementSDS Drives。



Technical Specifications

Item Specifications
Model 710‑4D0004‑BE‑0S‑0000
Brand Parker
Series AC70 Series
Product Type AC Variable Frequency Drive (Stack Only Power Unit)
Frame Size Frame D
Rated Power 4.0 kW
Input Power 3‑Phase 380‑480V AC,50/60Hz
Output Current 9.5 A
Ingress Protection IP20
Control Mode V/F Control, Open‑Loop Vector Control
Cooling Forced Air Cooling
Communication Modbus‑RTU, optional Profinet, EtherNet/IP expansion modules
Protection Over‑current, Over‑voltage, Under‑voltage, Over‑temperature, Motor overload, Earth‑fault protection
Mounting Control cabinet mounting
Dimension(W×H×D) 130 × 260 × 185 mm
Net Weight 4.1 kg
Operating Temperature ‑10℃ ~ +50℃
Storage Temperature ‑20℃ ~ +70℃
Certifications CE, UL
Product Status OEM Obsolete, new surplus stock & tested refurbished spare parts available
Application Pumps, fans, conveyor belts, general‑purpose industrial motor speed control system maintenance



Key Features

  1. Parker AC70 series 4kW AC drive power‑stack unit, external keypad required for local operation.
  2. Supports V/F and open‑loop vector control, stable output for standard asynchronous motors.
  3. Complete electrical fault protection including over‑current, overload, over‑temperature and earth‑fault detection.
  4. Multiple industrial communication options for seamless connection with PLC automation systems.
  5. IP20 rating with forced air cooling for long‑term reliable operation inside industrial control cabinets.
  6. Obsolete spare unit widely used for field replacement of aging AC70 drive equipment.

Application

Water treatment pumps, HVAC fans, production line conveyors and general manufacturing motor variable‑speed control.
