Product Overview

Technical Specifications

Model: PP875

Order No.: 3BSE092977R1

Series: Panel 800 Standard Operator Panel

Display: 7-inch TFT LCD with LED backlight

Resolution: 800 × 480 pixels, 16:9 widescreen

Touch Screen: Resistive touch, glove touch supported

CPU: 1 GHz ARM processor

Memory: 512 MB RAM, 8 GB flash storage

Operating System: Windows Embedded CE 6.0

Power Supply: 24 VDC (18 VDC ~ 32 VDC), max power consumption 14.4 W

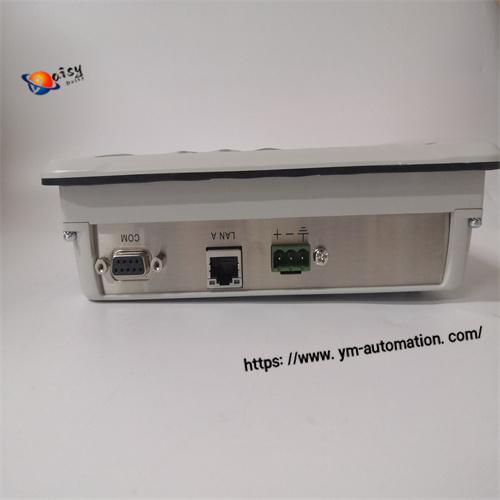

Interfaces: 1×Ethernet, 1×USB 2.0 Host, RS232, RS422/RS485

Protection Class: Front IP65 / NEMA 4X; Rear IP20

Operating Temperature: -10 ℃ ~ +60 ℃

Storage Temperature: -20 ℃ ~ +70 ℃

Ambient Humidity: 5%–85% non-condensing

Housing: Die-cast coated aluminum, fanless design

Overall Size: 204 mm × 143 mm × 50 mm

Panel Cut-out: 187 mm × 126 mm

Installation: Flush panel mounting

Certifications: CE, UL, FCC, KCC

Key Features

High-definition TFT LED display provides clear graphical visualization for process parameters, alarm information and trend curves.

Durable resistive touch panel ensures reliable operation under dust, vibration and humidity industrial conditions.

Open communication architecture connects seamlessly with ABB DCS, PLC and multi-brand automation controllers.

Fanless structure eliminates fan failure risk and lowers equipment maintenance frequency.

Built-in complete HMI functions: alarm logging, data trending, recipe management, multi-language switching.

Convenient program upload and download via Ethernet or USB interface; offline simulation supported in Panel Builder.

Slim compact structure saves installation space inside control cabinets.
