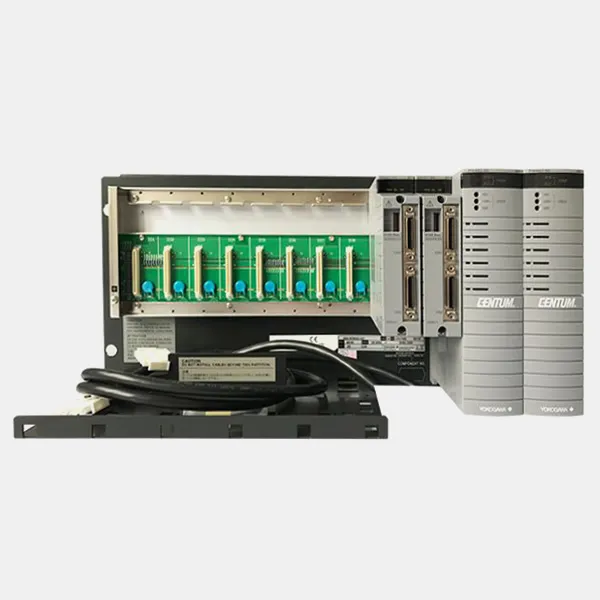

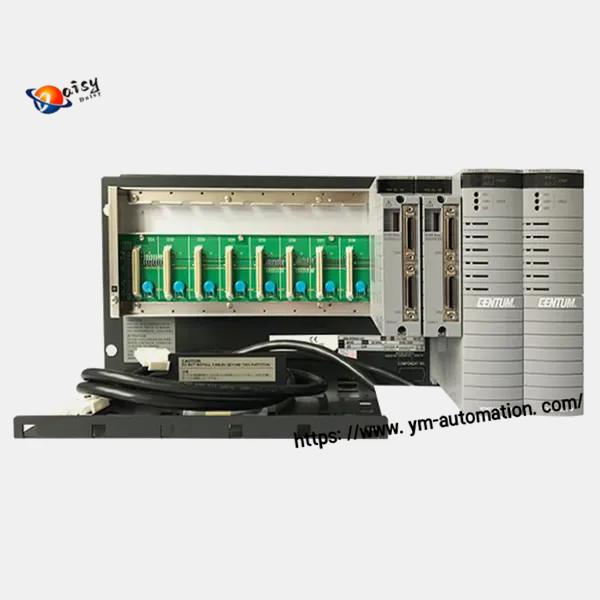

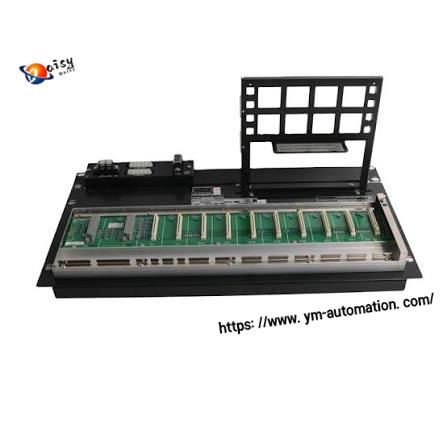

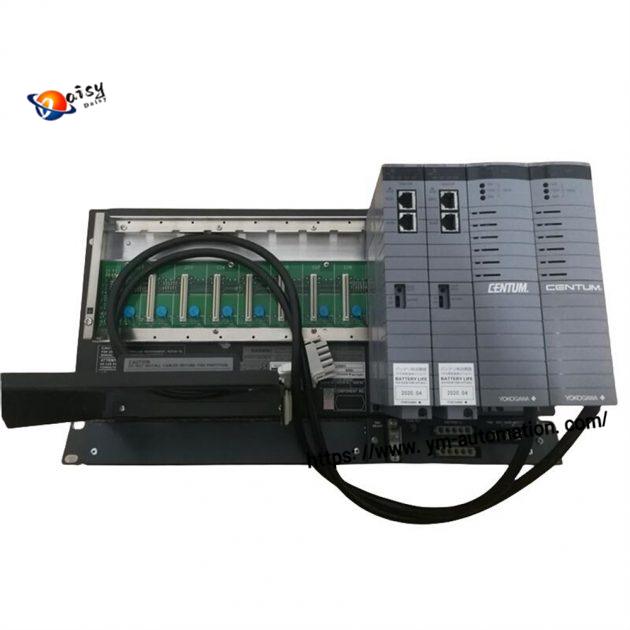

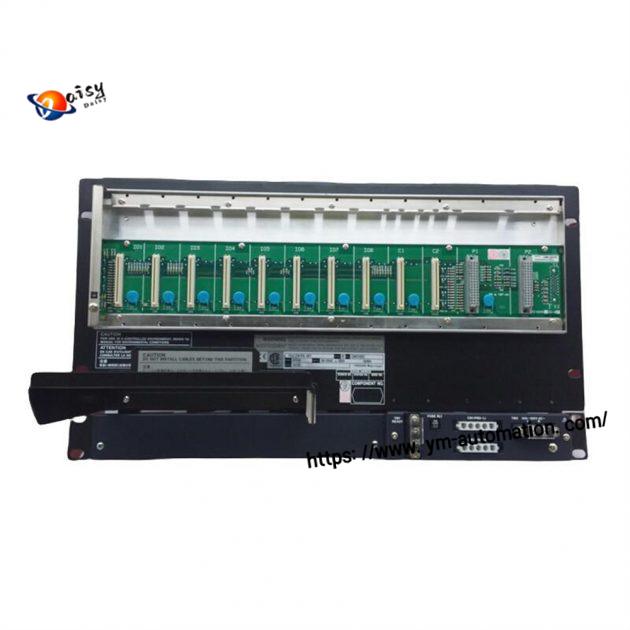

YOKOGAWA AFV30D-A41152 Duplexed Field Control Unit CENTUM VP DCS FCU Module

Product Overview

Full Technical Specifications

Model: AFV30D-A41152

Brand: YOKOGAWA (Japan)

Series: AFV30D Duplex Field Control Unit

Matching System: CENTUM VP DCS Distributed Control System

Redundancy Mode: Full duplex hot standby (Dual CPU, Dual Power, Dual Vnet/IP)

Failover Switch Time: ≤10ms, zero production interruption

Power Input: 24VDC redundant power, support AC 100-240V power module

I/O Slot Quantity: 10 expandable I/O slots for analog/digital modules

Main Communication: Dual redundant Vnet/IP bus

Supported Protocols: HART, FOUNDATION Fieldbus, Modbus RTU/TCP, Profibus DP, OPC UA

Control Cycle: Millisecond-level fast loop control response

Dimension: 207 × 265.9 × 482.6 mm

Net Weight: 8 KG

Protection Grade: IP20 (indoor cabinet rack mounting)

Operating Temperature: -20℃ ~ +60℃

Storage Temperature: -40℃ ~ +70℃

Ambient Humidity: 5%~95% non-condensing

Certification: CE, UL, EAC, UKCA, IEC61508 industrial standard

Mounting: Standard industrial cabinet rack installation

Core Features

YOKOGAWA AFV30D-A41152 full duplex hot standby redundant design avoids single-point failure, ensures long-term stable DCS system running.

AFV30D-A41152 dual Vnet/IP communication bus realizes automatic link switching to prevent communication disconnection risks.

Powerful multi-loop real-time control capacity supports complex continuous process regulation, interlock and sequence control.

Multi-protocol compatibility of Yokogawa AFV30D-A41152 enables seamless connection with HART transmitters, third-party PLC and instruments.

Complete self-diagnosis function monitors CPU, power, communication and I/O channel faults, real-time alarm output for quick maintenance.

Expandable 10 I/O slots freely match AI, AO, DI, DO field modules for flexible project configuration.

Compact rack-mounted structure saves cabinet space, original Japan manufacturing with stable industrial performance.
