Foxboro FDC280 RH101FQ Field Device Controller for I/A Series DCS

Description

Foxboro FDC280 RH101FQ Field Device Controller

Product Overview

Foxboro FDC280 RH101FQ is a field-mounted distributed Field Device Controller developed by Schneider Electric Foxboro for EcoStruxure Foxboro I/A Series and Foxboro Evo DCS system. The Foxboro FDC280 RH101FQ integrates process control and multi-protocol gateway functions, directly connecting serial and Ethernet field instruments without extra FBM fieldbus modules. This FDC280 RH101FQ supports independent local control operation. When communication with central workstation fails, Foxboro FDC280 RH101FQ can continuously execute control logic to guarantee production safety. Widely deployed in oil & gas, chemical plants, power generation, water treatment DCS renovation and maintenance projects, Foxboro FDC280 RH101FQ is an essential spare part for Foxboro distributed control systems.

Key Features

Foxboro FDC280 RH101FQ, non-fault tolerant single Field Device Controller

Dual-core architecture: independent control core and device communication core

Supports PID regulation, logic control, timing and sequential control

Built-in multi-protocol driver: Modbus TCP, Modbus RTU, OPC UA, Ethernet/IP

Interfaces: RS232, RS422, RS485 serial port + 100Mbps Ethernet

Onboard LCD display for real-time status monitoring and fault diagnosis

Online downloadable protocol drivers, support remote firmware upgrade

Rugged aluminum housing, adapts to Class G3 corrosive industrial environments

Matches baseplate RH101KF for rack installation

Reduce cabinet wiring and save installation space compared with traditional CP+FDSI scheme

Technical Specifications

Model: FDC280 RH101FQ

Brand: Foxboro (Schneider Electric)

Applicable System: Foxboro I/A Series, Foxboro Evo DCS

Processor: Dual-core CPU

Power Supply: 24 VDC ±20%

Power Consumption: ≤12W

Module Weight: 0.8 kg (1.78 lbs)

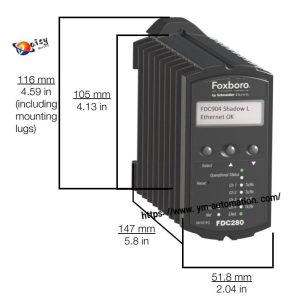

Dimensions: 147mm × 51.8mm

Communication Protocols: Modbus TCP, Modbus RTU, OPC UA, Ethernet/IP

Operating Temperature: -20℃ ~ +70℃

Storage Temperature: -40℃ ~ +85℃

Humidity: 5%~95% non-condensing

Contamination Level: ISA S71.04 Class G3

Mounting: Installed on baseplate RH101KF

Protection Grade: IP20 front face

Typical Applications

Petrochemical process Foxboro DCS system upgrade & spare replacement

Power plant boiler, turbine auxiliary control system maintenance

Oil & gas upstream refining process automation control

Municipal water & wastewater treatment DCS projects

Retrofit of legacy Foxboro I/A Series distributed control system

Supply Notice

We supply tested surplus Foxboro FDC280 RH101FQ. The FDC280 RH101FQ belongs to Foxboro DCS spare parts for industrial equipment maintenance and system renovation.
